CIRCULAR MAGNETIC CHUCKS

CIRCULAR MAGNETIC CHUCKS
1 / 4 PagesView full catalog

CIRCULAR MAGNETIC CHUCKS

Product catalog summary
Overview: This document provides technical specifications and options for various models of circular permanent magnetic chucks, designed for applications such as grinding, turning, and laser welding. The chucks are constructed with different types of magnets and feature adjustable magnetic holding power.
Specifications:
  • Model NEOSTAR: Features a radial pole pitch with a nominal force of 110 N/cm². It is suitable for hard turning applications and has a rugged, waterproof construction. The admissible wear of the top plate is 10 mm.
  • Model MP-T: This model has a parallel pole pitch and a nominal force of 75 N/cm². It is designed for grinding and turning, with a strong magnetic field and adjustable holding power. The admissible wear of the top plate is 5 mm.
  • Model FM: Designed for high precision applications, this model uses neodymium magnets and has a fine pole pitch of 2 mm. It is suitable for small and thin workpieces, with a nominal force of 85 N/cm² and a magnetic field height of 4 mm.
  • Model NEOMICRO CIRCULAR: Features a fine pole pitch of 2 mm, suitable for applications requiring high precision and low magnetic field.
Options:
  • Machining center hole until diameter I
  • T slot in each pole
  • Auxiliary top plate
  • Mounting flange
  • Palettizing systems compatible with EROWA-3R-HIRSCHMANN-V&B
Construction Details: The chucks are made with materials such as ALNICO and ferrite magnets, featuring rugged construction and waterproof designs. The magnetic holding power is adjustable from 0 to 100%, allowing for flexibility in various applications.
Contact Information: For further inquiries, contact Braillon Magnetics at [email protected] or phone +33 479 842 145.
See more

Catalog excerpts

CIRCULAR MAGNETIC CHUCKS-1

11.01 Circular permanent magnetic chuck model NEOSTAR Radial pole pitch High holding power, Stabil top plate, Rugged construction, Waterproof construction, Force:110 N/cm², Recommended for hard turning Applications Grinding , Turning , Hard turning Construction . Circular magnetic chuck made with ALNICO magnets . Radial pole pitch steel + epoxy . Uniform and very powerful magnetic field . Magnetic holding power adjustable from 0 to 100% . Rugged construction Nominal force 110 N/cm² Admissible wear of top plate 10 mm Art.-N°11.01 Diagram below: dimensions in mm Product Weight A B C D E F G H I J 11.01.150 6.5 150 63 15 11.01.180 9.5 180 63 15 50 80 120 M6 5 24 10 60 100 160 M6 5 27 12 11.01.200 12.5 200 66 15 60 110 180 M6 5 30 14 11.01.250 20 250 71 20 80 140 220 M6 5 50 14 11.01.300 36 300 73 20 150 180 260 M8 6 58 18 11.01.350 42 350 77 23 170 220 300 M8 6 58 18 11.01.400 62 400 77 23 200 260 340 M8 8 58 18 11.01.450 70 450 77 23 200 260 340 M8 8 58 18 11.01.500 80 500 77 23 200 300 400 M8 8 58 18 OPTIONS : Machining center hole unitl diameter I T slot in each pole Auxiliary top plate Any other machining in the top or base plate Mounting flange Palettizing system in the base plate:EROWA-3RHIRSCHMANN-V&B ... All right reserved to change construction and dimensions without notice - Print date : 18/11/2010 ZI ALPESPACE - BP6 73806 MONTMELIAN Cedex - FRANCE www.braillon.com [email protected] Phone +33 479 842 145 Fax +33 479 841 449

 Open the catalog to page 1
CIRCULAR MAGNETIC CHUCKS-2

11.02 Circular permanent magnetic chuck model MP-T Parallel pole pitch Rugged construction, Waterproof construction, Force: 75 N/cm² Applications Grinding , Turning Construction . Strong magnetic field . Made with Alnico magnets . Closed poles to concentrate magnetic field in the limited area of the poles . Magnetic holding power adjustable from 0 to 100% Pole pitch 35 mm Nominal force 75 N/cm² Admissible wear of top plate 5 mm Art.-N°11.02 Diagram below: dimensions in mm Product Weight A B C D E F G H 11.02.150 6 150 53 19 100 6 120 M6 4 11.02.180 8 180 53 19 100 6 120 M6 4 11.02.200 11 200...

 Open the catalog to page 2
CIRCULAR MAGNETIC CHUCKS-3

11.03 Circular permanent magnetic chuck model FM Parallel pole pitch Rugged construction, Power adjustable, Longer life, Twin magnetic system, Silver brazed top plate, Recommended for hard turning Applications Grinding , Turning Construction . Magnetic chuck with ferrite magnets . Uniform and very powerful magnetic field . Parallel pole pitch . Magnetic holding power adjustable from 0 to 100% . Chucks of Ø 250 or more are prepared for machining a center hole . Maximum hole diameter E is Ø 20 x 15 mm . With base plate in aluminium Pole pitch 13 mm Nominal force 100 N/cm² Admissible wear of top...

 Open the catalog to page 3
CIRCULAR MAGNETIC CHUCKS-4

11.05 Circular permanent magnetic chuck model NEOMICRO CIRCULAR Fine pole pitch/ p=2 mm Stabil top plate, Rugged construction, Power adjustable, Waterproof construction, Force:85 N/cm², Longer life, Low magnetic field Applications Grinding , EDM , Control , Laser welding Construction . Circular magnetic chuck with NEODYMIUM magnets . Low magnetic field . Fine pole pitch . Suitable for small and thin workpieces . Specially designed for high precision applications . Magnetic holding power adjustable from 0 to 100% Pole pitch 2 mm Nominal force 85 N/cm² Admissible wear of top plate 5 mm Magnetic...

 Open the catalog to page 4

All Braillon Magnetics catalogs and technical brochures

  1. CONTROL UNIT MC20
    CONTROL UNIT MC20

    4  Pages

  2. FILTERING AND SEPARATION
    FILTERING AND SEPARATION

    14  Pages

  3. LIFTING AND HANDLING
    LIFTING AND HANDLING

    26  Pages

  4. DEMAGNETIZATION AND MEASUREMENT
    DEMAGNETIZATION AND MEASUREMENT

    9  Pages

  5. PRECISION DEVICES
    PRECISION DEVICES

    16  Pages

  6. VACUUM CHUCK
    VACUUM CHUCK

    19  Pages

  7. LAMINATED BLOCKS AND ACCESSORIES
    LAMINATED BLOCKS AND ACCESSORIES

    7  Pages

  8. CIRCULAR MAGNETIC CHUCKS FOR TURNING AND GRINDING
    CIRCULAR MAGNETIC CHUCKS FOR TURNING AND GRINDING

    8  Pages

  9. ELECTRO-PERMANENT FOR MILLING
    ELECTRO-PERMANENT FOR MILLING

    7  Pages

  10. EN ELECTRO-PERMANENT FOR GRINDING
    EN ELECTRO-PERMANENT FOR GRINDING

    9  Pages

  11. PERMANENT MAGNETIC
    PERMANENT MAGNETIC

    15  Pages

  12. Product overview
    Product overview

    4  Pages

  13. LIFTING MAGNETS
    LIFTING MAGNETS

    5  Pages

  14. MILLING
    MILLING

    16  Pages

  15. DEMAGNETIZERS
    DEMAGNETIZERS

    4  Pages

  16. CATALOG BRAILLON
    CATALOG BRAILLON

    152  Pages

  17. Electro-Permanent Rotary Chuck
    Electro-Permanent Rotary Chuck

    4  Pages

  18. High Temperature magnetic chucks
    High Temperature magnetic chucks

    2  Pages

  19. Electro-Permanent magnetic chucks for grinding
    Electro-Permanent magnetic chucks for grinding

    4  Pages

Archived catalogs

  1. Electro- Permanent magnetic chucks
    Electro- Permanent magnetic chucks

    22  Pages

  2. SINE TABLE
    SINE TABLE

    6  Pages

  3. MAGNETIC BLOCK
    MAGNETIC BLOCK

    9  Pages

  4. LAMINATED BLOCK
    LAMINATED BLOCK

    8  Pages

  5. Permanent Magnetic ledge type RM05
    Permanent Magnetic ledge type RM05

    1  Page

  6. Permanent Magnetic ledge type RM04
    Permanent Magnetic ledge type RM04

    1  Page

  7. Permanent Magnetic ledge type RM03
    Permanent Magnetic ledge type RM03

    1  Page

  8. Permanent Magnetic ledge type RM01
    Permanent Magnetic ledge type RM01

    1  Page

  9. Magnetic Tack round type PM 05
    Magnetic Tack round type PM 05

    1  Page

  10. Magnetic tack rectangular type PM 03
    Magnetic tack rectangular type PM 03

    1  Page

  11. Permanent Magnetic ledge type RM02
    Permanent Magnetic ledge type RM02

    1  Page

  12. Magnetic tack STRONG type PM 02
    Magnetic tack STRONG type PM 02

    1  Page

  13. Magnetic Tack round type PM 01
    Magnetic Tack round type PM 01

    1  Page

  14. Magnetic hook rectangular type CM 03
    Magnetic hook rectangular type CM 03

    1  Page

  15. Magnetic hook round type CM 02
    Magnetic hook round type CM 02

    1  Page

  16. Magnetic hook round type CM 01
    Magnetic hook round type CM 01

    1  Page

  17. Permanent Magnetic ledge type RM06
    Permanent Magnetic ledge type RM06

    1  Page

  18. Plastic clip for electric cable type APC 01
    Plastic clip for electric cable type APC 01

    1  Page

  19. Clip for cable type AC 01
    Clip for cable type AC 01

    1  Page

  20. Back plate with adhesive side type CP 02
    Back plate with adhesive side type CP 02

    1  Page

  21. Back plate for counter suck head screw type CP 01
    Back plate for counter suck head screw type CP 01

    1  Page

  22. No Slip Rubber strip with adhesive back type CC 03
    No Slip Rubber strip with adhesive back type CC 03

    1  Page

  23. Rubber cover with center hole for lifting magnets type CC 02
    Rubber cover with center hole for lifting magnets type CC 02

    1  Page

  24. Magnetic & paper filter
    Magnetic & paper filter

    1  Page

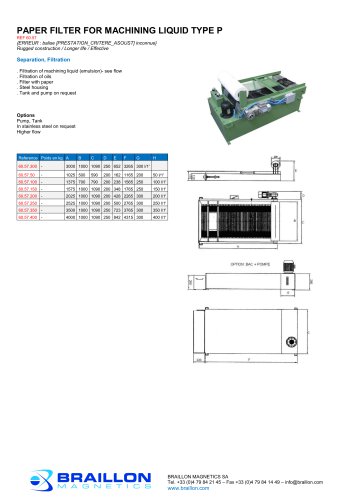

  25. PAPER FILTER FOR MACHINING LIQUID TYPE P
