Bosch Solar Module µm-Si plus

Bosch Solar Module µm-Si plus
2Pages

Catalog excerpts

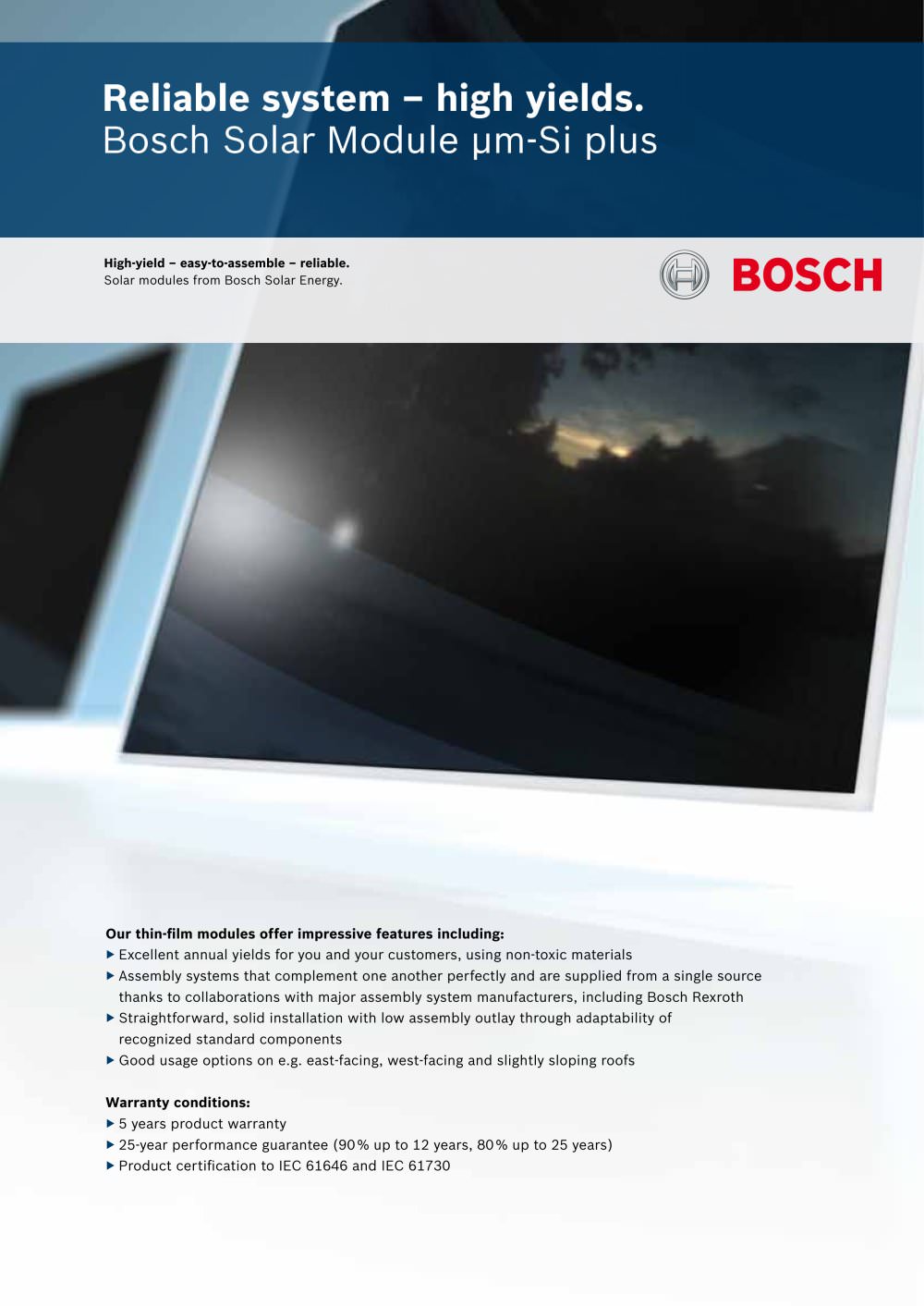

High-yield – easy-to-assemble – reliable. Solar modules from Bosch Solar Energy. Reliable system – high yields. Bosch Solar Module ìm-Si plus Our thin-film modules offer impressive features including: ƒô Excellent annual yields for you and your customers, using non-toxic materials ƒô Assembly systems that complement one another perfectly and are supplied from a single source thanks to collaborations with major assembly system manufacturers, including Bosch Rexroth ƒô Straightforward, solid installation with low assembly outlay through adaptability of recognized standard components ƒô Good usage options on e.g. east-facing, west-facing and slightly sloping roofs Warranty conditions: ƒô 5 years product warranty ƒô 25-year performance guarantee (90 % up to 12 years, 80 % up to 25 years) ƒô Product certification to IEC 61646 and IEC 61730

Open the catalog to page 1

Bosch Solar Module ìm-Si plus | Bosch Solar Energy Permissible operating and assembly conditions: ƒô Temperature range –40 °C to +85 °C, humidity max. 85 % (rh) ƒô Upright assembly, laser lines running vertically ƒô Mechanical load-bearing capacity tested up to 2 400 Pa ƒô Transformerless DC-AC converters are not permitted ƒô Maximum 1 000 V system voltage Temperature coefficient Pmpp –0.25 %/K Temperature coefficient Voc –0.31 %/K Temperature coefficient Isc + 0.05 %/K Thermal characteristics: Weak light performance: Intensity [W/m2] Vmpp [%] Impp [%] 800 –1.0 –19 600 –2.0 –39 400 –3.0 –59...

Open the catalog to page 2
