Bosch Solar Cell M 3BB

Bosch Solar Cell M 3BB
2Pages

Catalog excerpts

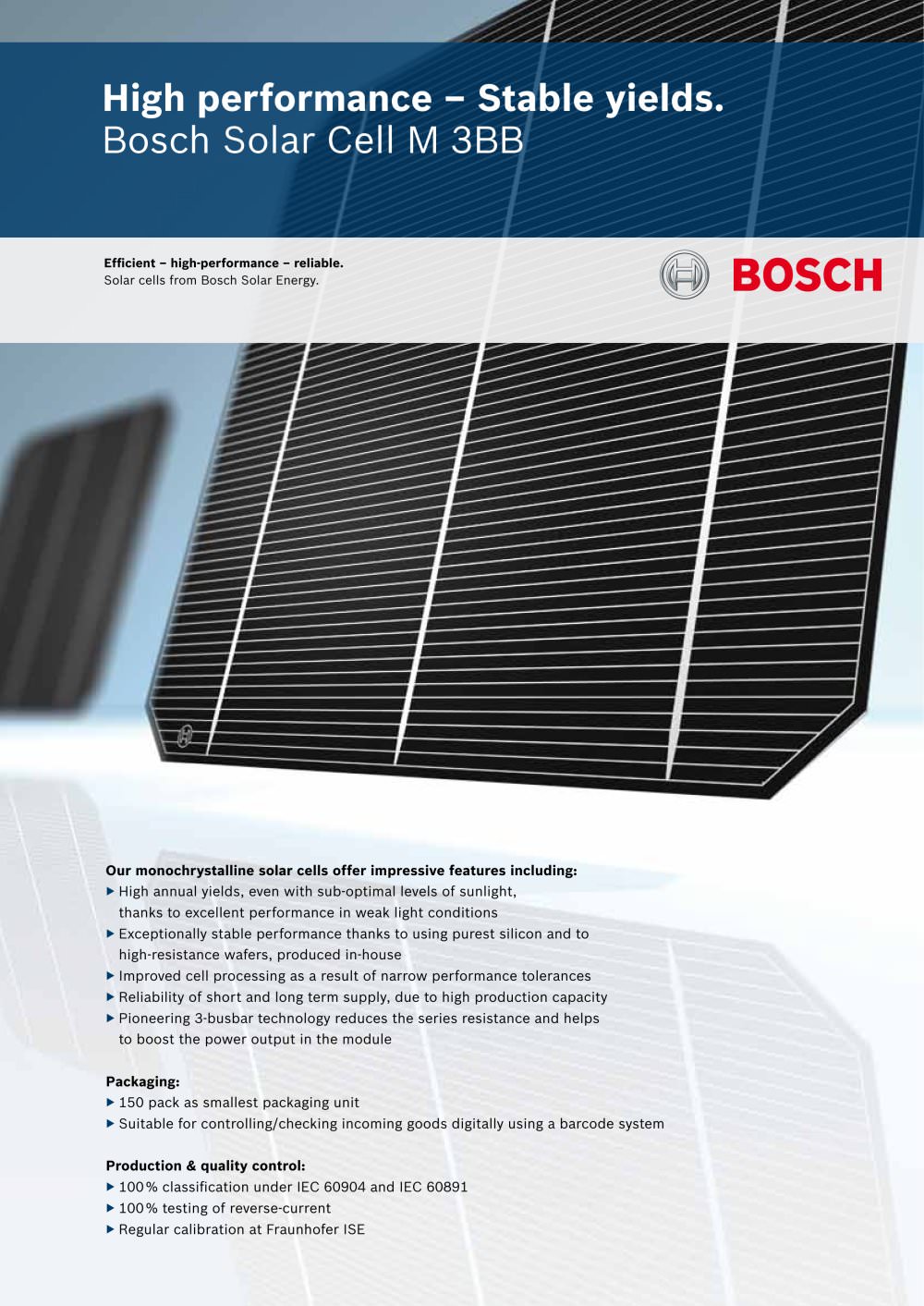

Efficient – high-performance – reliable. Solar cells from Bosch Solar Energy. High performance – Stable yields. Bosch Solar Cell M 3BB Our monochrystalline solar cells offer impressive features including: ƒô High annual yields, even with sub-optimal levels of sunlight, thanks to excellent performance in weak light conditions ƒô Exceptionally stable performance thanks to using purest silicon and to high-resistance wafers, produced in-house ƒô Improved cell processing as a result of narrow performance tolerances ƒô Reliability of short and long term supply, due to high production capacity ƒô Pioneering 3-busbar technology reduces the series resistance and helps to boost the power output in the module Packaging: ƒô 150 pack as smallest packaging unit ƒô Suitable for controlling/checking incoming goods digitally using a barcode system Production & quality control: ƒô 100 % classification under IEC 60904 and IEC 60891 ƒô 100 % testing of reverse-current ƒô Regular calibration at Fraunhofer ISE

Open the catalog to page 1

Bosch Solar Cell M 3BB | Bosch Solar Energy Bosch Solar Energy AG Wilhelm-Wolff-Straße 23 99099 Erfurt Germany Phone: +49 361 2195-0 Fax: +49 361 2195-1133 sales.se@de.bosch.com www.bosch-solarenergy.de Product characteristics Dimensions 156 mm x 156 mm (±0.5 mm) pseudo square Diagonal 205 mm ±1 mm Average thickness 200 ìm (±40 ìm) / 180 ìm (-30/+40 ìm) Front contacts (–) 3 x 1.5 mm busbar (silver), textured, silicon nitride anti-reflective coating Back contacts (+) 3 x 2.8 mm busbar (silver), full-surface aluminium BSF Dark reverse current Irev < 1.5 A @ –12V Power sorting +50 / –0 mW...
