VA146178 Fan

Product catalog summary

Overview: The document provides technical specifications for the Vane-Axial Fan model VA146178-A480(3)-2, manufactured by Boreasa. It includes details on performance, materials, dimensions, and operational parameters.

Specifications:

Dimensions: 152.4 x 146 x 178 mm (6 x 5.75 x 7.01 in)
Materials: Impeller and Housing made of AL6061-T6 and AL7075
Weight: 5 kg
Operational Temperature: -20 to +80°C / -4 to +176°F
Motor Type: Three Phase Induction Motor

Electrical Specifications:

Nominal Voltage: 3AC 480 V
Power Input: 1,850 W
Nominal Frequency: 400 Hz
Nominal Current: 2.8 A
Nominal Speed: 11,450 rpm

Performance:

Max. Air Flow: 1,853 m³/h / 1,090 CFM
Max. Static Pressure: 3,822 Pa / 15.4 inH2O
Noise Level: ≤ 98.5 dB(A)

Additional Features:

Ingress Protection Rating: IP55
Insulation Class: F
Bearing Type: Ball Bearing
Auxiliary Functions: Overtemperature Protection with Trip Temperature at 105 ±5°C / 221 ±9°F and Reset Temperature at 70 ±15°C / 158 ±27°F

Environmental Conditions:

Operational Humidity Range: 35 to 90% RH
Storage Temperature: -20 to +75°C / -4 to +167°F
Storage Humidity Range: 15 to 90% RH

Electrical Connections:

U: Brown
V: Blue
W: Black
GND: Yellow-green

Notes: Performance data is based on tests conducted in Boreasa's test chamber at 20°C and sea level. Specifications may vary under different conditions and are subject to change without notice. Customers are advised to test and validate the fan in their specific application conditions.

Catalog excerpts

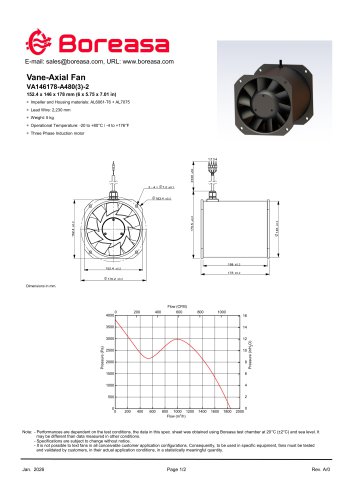

E-mail: [email protected], URL: www.boreasa.com * Impeller and Housing materials: AL6061-T6 + AL7075 * Three Phase Induction motor Note: - Performances are dependent on the test conditions. the data in this spec. sheet was obtained using Boreasa test chamber at 20°C (±2°C) and sea level. It may be different than data measured in other conditions. - Specifications are subject to change without notice. - It is not possible to text fans in all conceivable customer application configurations. Consequently, to be used in specific equipment, fans must be tested and validated by customers, in their actual application conditions, in a statistically meaningful quantity.

Open the catalog to page 1

Technical Data Type Color Description

Open the catalog to page 2

VA146178 Fan

VA146178 Fan
