Spectrum Analyzers 9102

Product catalog summary

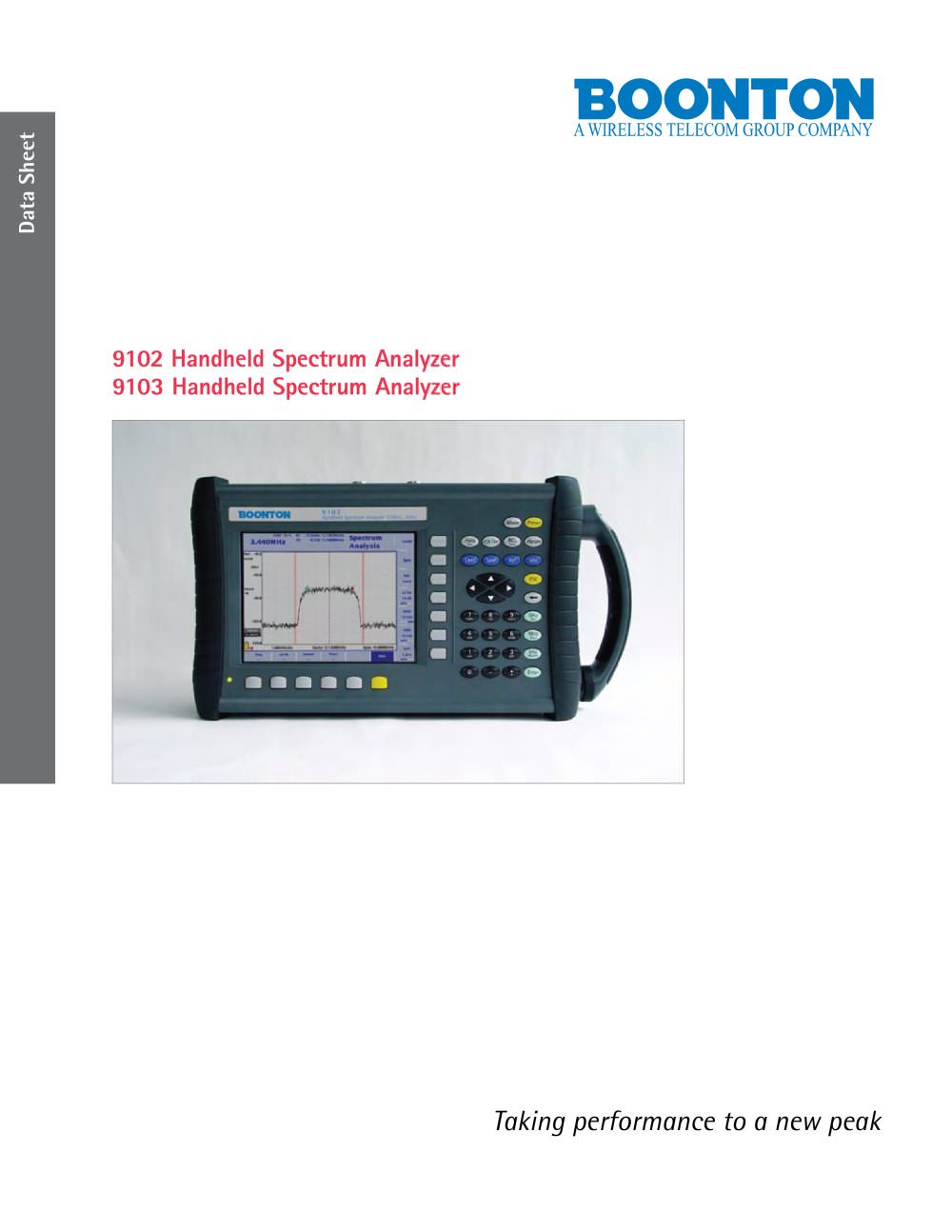

Overview: The Boonton 9102 and 9103 Handheld Spectrum Analyzers are portable devices designed for RF engineers and service technicians. They offer the performance of a workbench analyzer and are suitable for installation troubleshooting, maintenance, and production testing.

Key Features:

Frequency range up to 4 GHz or 7.5 GHz, depending on the model.
Supports radiation measurements at base stations and broadcast transmitters.
Ideal for cable and antenna testing, mobile service, and repair.
External reference connection for high frequency accuracy.
Rugged design for field and lab applications.

Specifications:

Wide frequency band covering 3G, Wireless LAN, and GPS.
High-resolution color VGA display for easy signal tracing.
Markers for precise signal reading and limit templates for pass/fail verdicts.
Integrated frequency counter for high-precision measurements.

Measurement Capabilities:

Channel Power, Adjacent Channel Power Ratio (ACPR), and Occupied Bandwidth (OBW) measurements.
Tracking generator option for amplifier characteristics measurement.
Reflection measurement with VSWR/DTF options for antenna system performance analysis.

Additional Options:

9151 Frequency Extension for 7.5 GHz range.
9132 RMS Detector for enhanced channel power measurements.
9168 GPS Receiver Option for precise location-based measurements.

Usability:

Easy control via RS-232 interface and Ethernet port.
Data Exchange Software for enhanced management and transfer functions.
Portable design with rechargeable battery for field use.

Compliance: Tested against relevant standards for RF radiation, conduction, static discharge, and shock steadiness.

Specifications:

Frequency Range: 9102 covers 100 kHz to 4 GHz, extendable to 7.5 GHz with an option; 9103 covers up to 7.5 GHz.
Resolution: Frequency resolution is 1 kHz, with a frequency counter resolution of 1 Hz to 100 Hz.
Amplitude: Maximum safe input power is 30 dBm, with various display units available.
Dynamic Range: Over 70 dB, with specific measurable input levels for different frequency ranges.
Environmental Conditions: Operating temperature is 0 to +45°C, with storage from -10 to +50°C.

Functions: The analyzers support various measurement modes, including spectrum analysis, channel power, and distance to fault. They feature multiple detector types, sweep processing options, and trace functions.

Options and Accessories: Various options are available, such as the 9130 VSWR/DTF Reflection Measurement Option and the 9160 VSWR/DTF Bridge. Accessories include battery modules, carrying bags, and calibration sets.

Ordering Information: The document lists product packages and options for both the 9102 and 9103 models, along with related products and accessories.

Contact Information: Boonton provides contact details for offices in the USA, UK, France, Germany, Singapore, and China.
