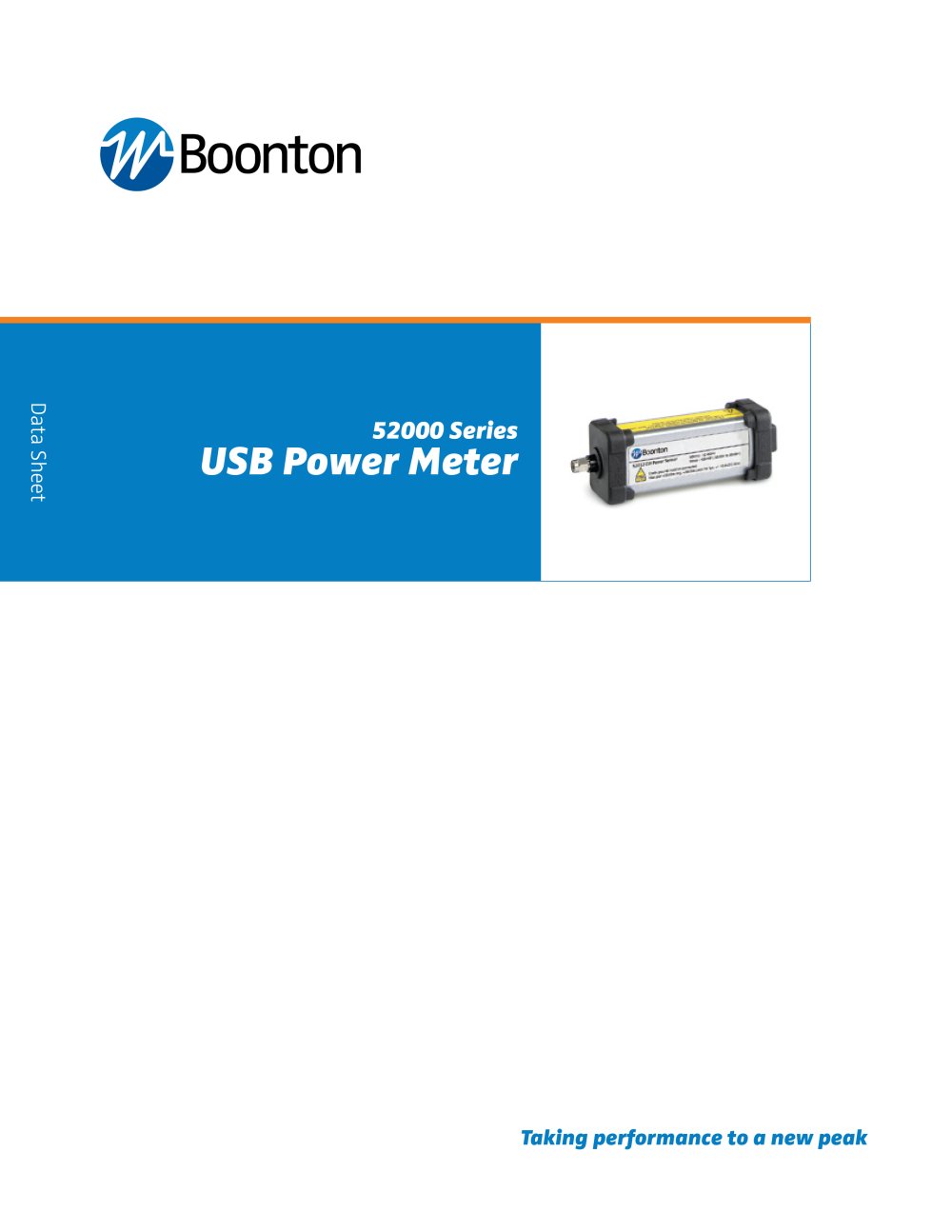

52000 Series USB Power Sensor/Meter
Product catalog summary
Overview: The 52000 Series USB Power Meter is a comprehensive RF power measurement tool featuring a CPU-operated sensor for data processing and interface management. It connects via USB to a PC, which serves as the user interface, making it suitable for production and service environments.
Key Features:
- Lightweight and portable design (1.3 x 1.7 x 4.9 inches).
- Cost-effective with high precision measurements.
- Supports multiple sensors on a single PC.
- No reference calibrator required.
- Measurement range from -50 dBm to +20 dBm.
- Frequency ranges up to 26.5 GHz.
Specifications:
- Frequency: 10 MHz to 26.5 GHz.
- Measurement range: -50 to +20 dBm CW.
- Linearity error: ±0.27 dB within specified conditions.
- Cal factor error varies by frequency range.
- Noise: 0.14 nW standard deviation.
- Input SWR: Max 1.25:1 (10 MHz to 18 GHz), 1.35:1 (18 GHz to 26.5 GHz).
- Connector type: K type (m).
Universal Specifications:
- Operating Temperature: 0 to 50°C.
- Shock: 25 G, 11 ms; Vibration: 15 G, 100 to 2000 Hz.
- Measurement Speed varies by power level.
- Max input power: 200 mW CW (+23 dBm).
- Connectivity: USB 2.0, cable length up to 5 m.
- Dimensions: 1.34” x 1.69” x 4.92”.
- Weight: 0.18 lb (83 grams).
Ordering Information:
- 52012: 10 MHz to 12.4 GHz.
- 52018: 10 MHz to 18.5 GHz.
- 52026: 10 MHz to 26.5 GHz.
Accessories Provided: Includes a Getting Started Guide, User Software on CD, and Programming Manual.
Contact Information: Wireless Telecom Group Inc., with offices in the US, UK, France, Germany, Singapore, and China.
