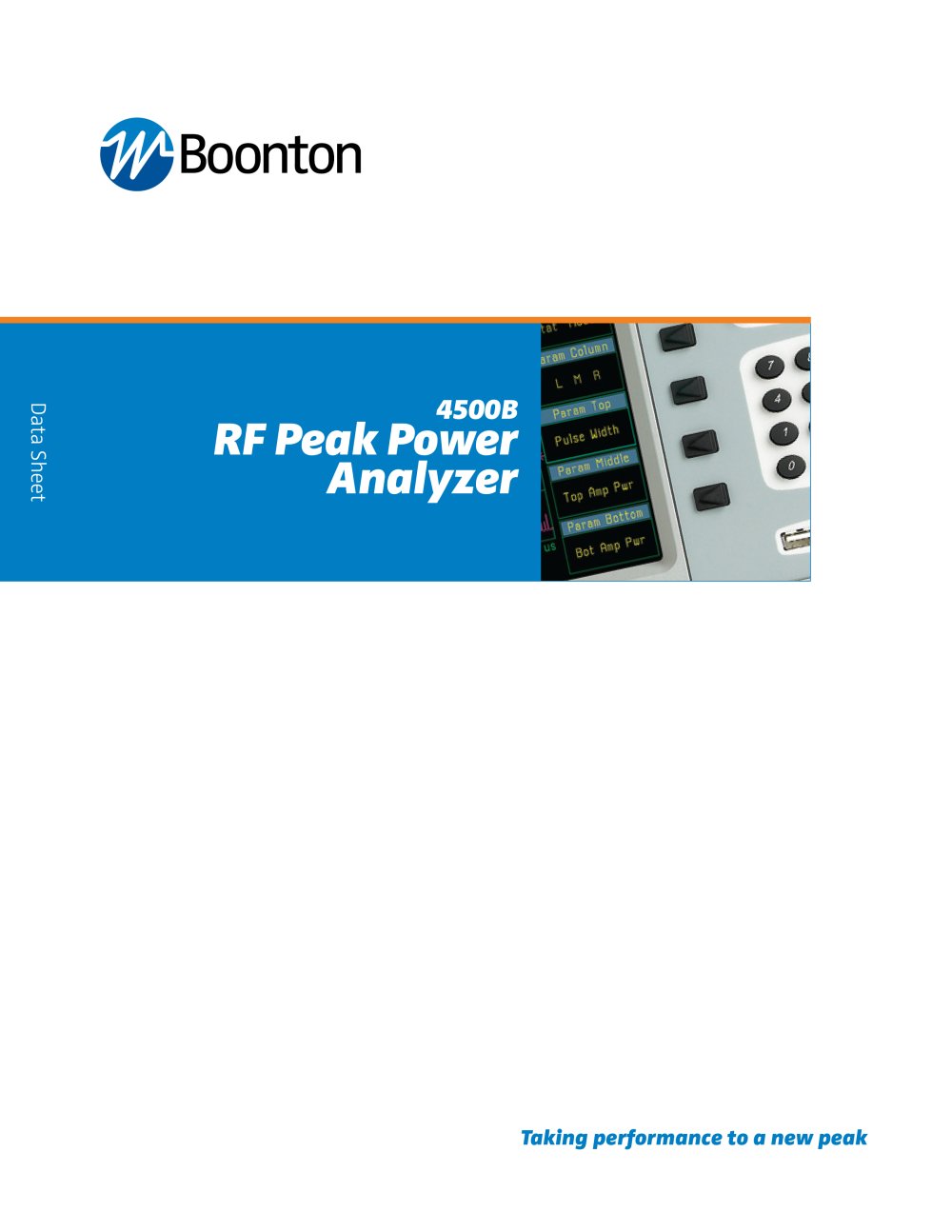

4500B Peak Power Analyzer

Product catalog summary

Overview: The Boonton Model 4500B RF Peak Power Analyzer is designed for capturing, displaying, analyzing, and characterizing RF power in both time and statistical domains. It is suitable for applications involving pulsed RF signals like RADAR, TDMA, GSM, and noise-like signals such as CDMA and WLAN.

Key Features:

100 psec timebase resolution and video bandwidth greater than 50 MHz.
Dynamic range over 80 dB without range switching.
Continuous statistical analysis of power at acquisition rates up to 25 MSa/s.
8.4” TFT color LCD display supporting multiple channels and views.
Flexible triggering options including automatic peak-to-peak and delay-by-time.
Convenient I/O options including USB, GPIB, and LAN.

Specifications:

RF Frequency Range: 1 MHz to 40 GHz.
Pulse Measurement Range: -50 to +20 dBm.
Time Base Range: 5 nsec/div to 1 hr/div with 100 psec resolution.
Calibration Source Frequency: 1.024 GHz ± 0.01%.
Operating Temperature: 0 to 50º C.

Advanced Capabilities:

Unique trigger system allowing qualification on specific events or delays.
Automatic analysis of power-versus-time waveforms for various RF signals.
Optional statistical analysis functions including PDF, CDF, and CCDF.
Auto-calibration with a precision 1 GHz RF step calibrator.

Ordering Information: The 4500B is available in various configurations including single or dual channel options, front or rear panel inputs, and optional statistical packages.

Contact Information: Wireless Telecom Group Inc., with sales offices in the United States, United Kingdom, France, Germany, Singapore, and China.
