Product Overview: The TLB-6600 Venturi™ Swept-Wavelength Tunable Lasers are designed for high precision and reliability, ideal for applications such as fiber sensing, spectroscopy, laser seeding, metrology, and fiber-optics testing. These lasers offer ultrafast, ultrawide, and mode-hop-free tunability with low noise and high accuracy.

Specifications: The lasers provide a tuning speed of 2,000 nm/s over a 110 nm range, with options for high dynamic range and high power. The low-noise version offers greater than 70-dB ASE suppression and an integrated dynamic range of over 55 dB. The high-power version delivers more than 8 dBm or 6 mW of output power.

Features: The TLB-6600 includes a color touchscreen for easy operation, with alternative all-button controls. It supports remote interfaces like Ethernet, USB, and GPIB for computer connectivity. Integrated options include wavelength reference, polarization control, and variable optical attenuator.

Models and Options: Various models are available, each with specific tuning ranges and power outputs. Options include integrated wavelength reference modules, polarization controllers, and variable optical attenuators. The lasers are available in different versions for specific wavelength bands, such as C+L, E+S, O, and 840 nm.

Applications: These lasers are suitable for fiber-Bragg sensing, spectroscopy, telecom test and measurement, and metrology. They are OEM-proven for 24/7 reliability with over 100-million cycles tested without failure.

Safety and Pricing: Caution is advised when viewing the laser output with optical instruments. Pricing varies by model and options, with additional costs for international orders and specific fiber types.

Catalog excerpts

Product Tutorial:Building a Swept-Wavelength System. > See page43. > *2004 Photonics Spectra Circle of Excellence Applications U.S.Patents #5,319,668 and #6,608,847 and patents pending

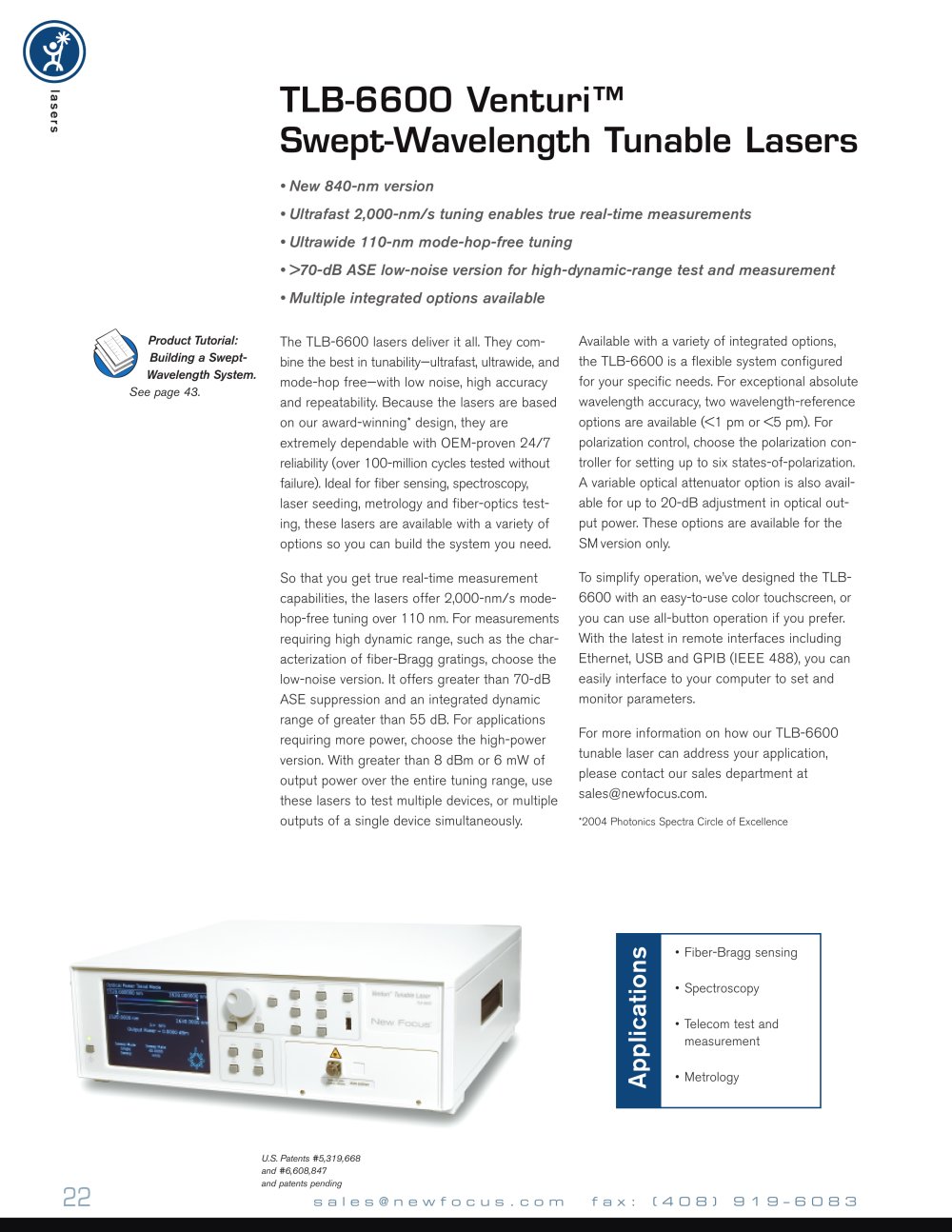

Open the catalog to page 1

C+L Band (1550 nm) E+S Band (1480 nm) OBand (1300 nm) 840 nm Version High Power Low Noise High Power Low Noise High Power Low Noise High Power Tuning Range (mode-hop free) 15201630 nm 1510֖1620 nm 14101510 nm 1410֖1510 nm 12601340 nm 1260֖1340 nm 835850 nmTuning Speed 2֖2,000 nm/s 22,000 nm/s 2֖2,000 nm/s 22,000 nm/s 2֖2,000 nm/s 22,000 nm/s 5֖1,000 nm/sWavelength Repeatability 15 pm ѱ15 pm 15 pm ѱ15 pm 15 pm ѱ15 pm 15 pmWavelength Accuracy(absolute) > ц 30 pm ѱ30 pm 30 pm ѱ30 pm 30 pm ѱ30 pm 30 pmOutput Power (fiber-coupled) > ц >+8 dBm (>6 mW) >0 dBm (>1 mW) >+6 dBm (>4 mW) >0 dBm (>1 mW) >+6...

Open the catalog to page 3
