OEM Tunable Laser Modules

Product catalog summary

Overview: The TLM-8700 laser modules are designed for integration into OEM volume applications, offering ultrafast, ultrawide, and mode-hop-free tunability with narrow linewidths, low noise, and high accuracy. These modules are suitable for telecom testing, fiber sensing, spectroscopy, and metrology.

Specifications:

Ultrawide 110-nm mode-hop-free tuning range.
Tuning speeds greater than 2,000 nm/s.
OEM-proven reliability with over 100-million cycles tested without failure.
Wavelength repeatability of ±15 pm and absolute wavelength accuracy of ±30 pm.
Output power ranges from >0 dBm to >8+ dBm depending on the model.
Side-Mode Suppression Ratio (SMSR) of >50 dBc.
Amplified Spontaneous Emission (ASE) noise performance of >40 dB to >70 dB.

Applications:

Fiber-Bragg sensing
Spectroscopy
Telecom test and measurement
Metrology

Technology and Integration: The modules are built on a cPCI/PXI platform, allowing easy integration into a PXI chassis. They utilize new technology to achieve tuning speeds from 2 to >2,000 nm/s.

Safety Note: Viewing the laser output with optical instruments within 100 mm may pose an eye hazard.

Contact Information: For further information or custom optical solutions, contact the sales team at [email protected].

Catalog excerpts

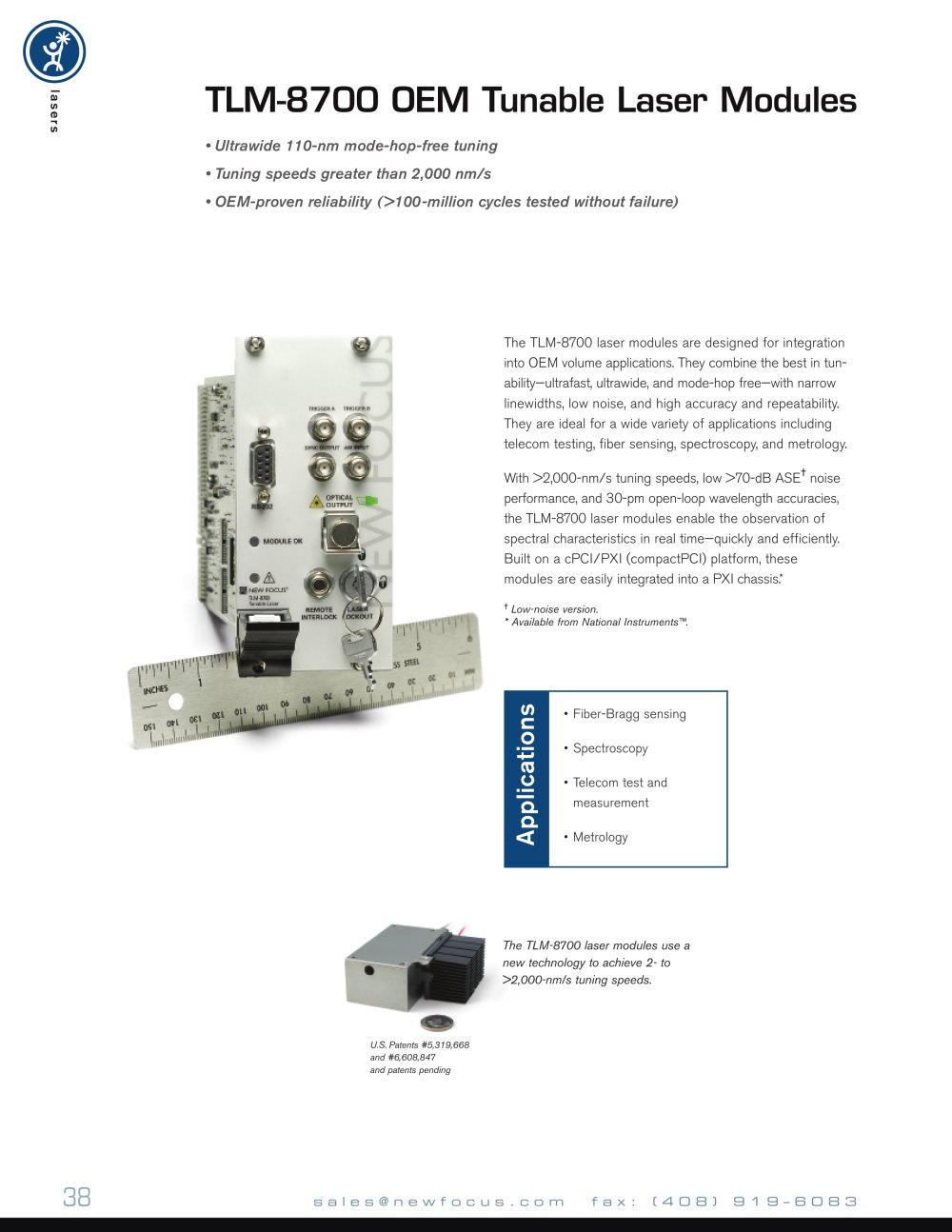

The TLM-8700 laser modules are designed for integrationinto OEM volume applications. They combine the best in tun- ability՗ultrafast, ultrawide, and mode-hop freewith narrow linewidths, low noise, and high accuracy and repeatability. They are ideal for a wide variety of applications includingtelecom testing, fiber sensing, spectroscopy,and metrology.With >2,000-nm/s tuning speeds, low >70-dB ASE > ׆ noiseperformance, and 30-pm open-loop wavelength accuracies, the TLM-8700laser modules enable the observation ofspectral characteristics in real timequickly and efficiently. Built on a cPCI/PXI (compactPCI) platform, these modules are easily integrated into a PXI chassis.* > ׆ Low-noise version.*Available from National Instruments. ٕFiber-Bragg sensingSpectroscopy ՕTelecom test and measurementMetrology Applications The TLM-8700 laser modules use anew technology to achieve 2- to >2,000-nm/s tuning speeds. U.S.Patents #5,319,668and #6,608,847 and patents pending
