Multipurpose
Product catalog summary

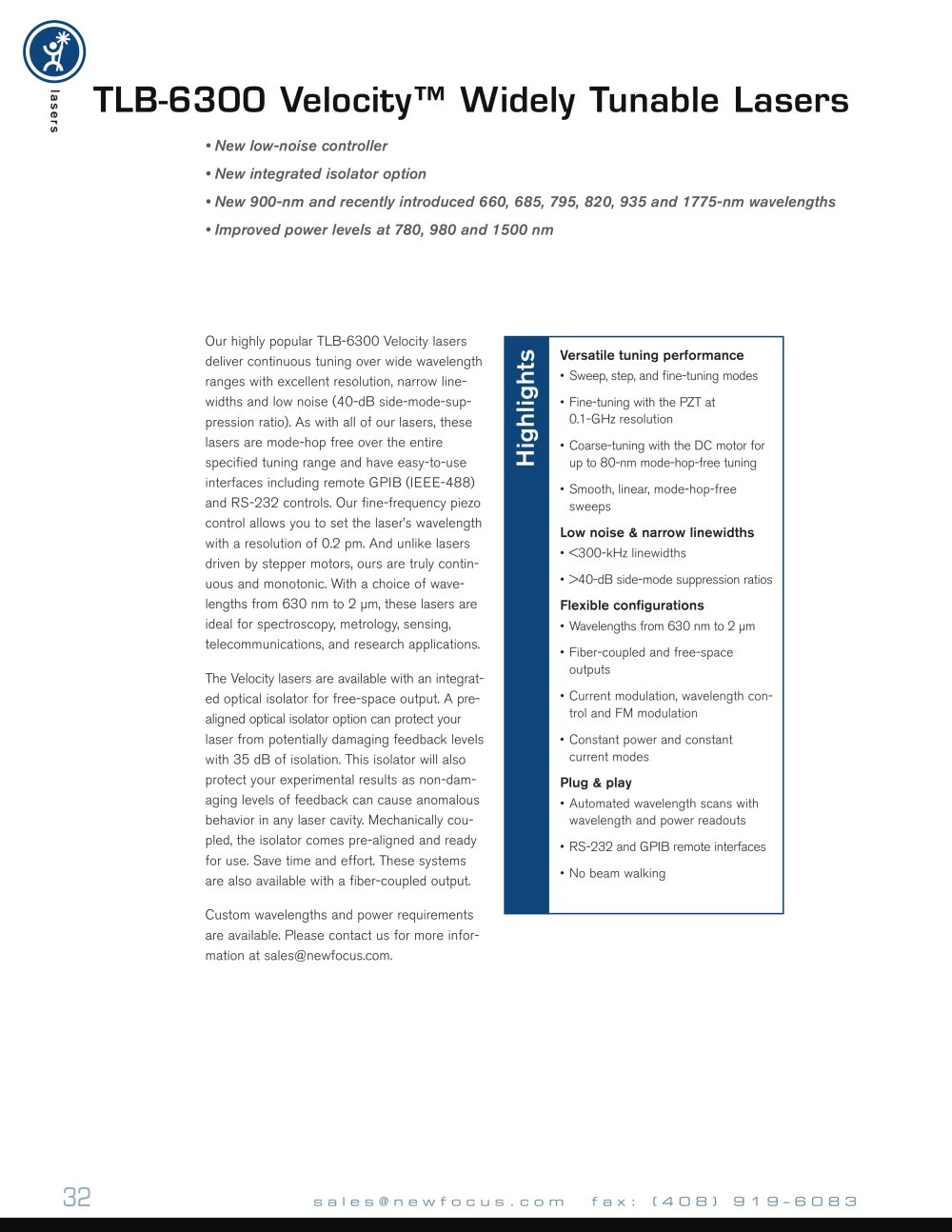

Overview: The document provides detailed information about the TLB-6300 Velocity™ Tunable Lasers and their controllers, highlighting their features, specifications, and applications.
Key Features:
- New low-noise controller and integrated isolator option.
- Wavelengths available from 630 nm to 2 µm, with improved power levels at specific wavelengths.
- Versatile tuning performance with sweep, step, and fine-tuning modes.
- Low noise and narrow linewidths (<300 kHz) with >40-dB side-mode suppression ratios.
- Flexible configurations with fiber-coupled and free-space outputs.
- Automated wavelength scans with RS-232 and GPIB remote interfaces.
Specifications:
- Mode-hop-free tuning ranges and typical maximum power levels for various models.
- Fine-frequency tuning range and modulation bandwidth details.
- Coarse-tuning speed and resolution, along with wavelength repeatability.
Applications:
- Suitable for spectroscopy, metrology, sensing, telecommunications, and research applications.
- Used in swept-frequency metrology, laser and OPO seeding, FM locking, non-linear optical generation, and fiber-optics characterization.
Pricing:
- Detailed pricing for laser heads, controllers, and isolators, with additional costs for international orders.
Controller Features:
- Modern, low-noise design with easy-to-use controls and interfaces.
- Automated wavelength scans and high-speed current modulation capabilities.
- Complete computer control with LabVIEW™ programs available for download.
Additional Information:
- Custom wavelengths and power levels are available upon request.
- Related products include photodetectors, modulators, and power meters.
See more
Catalog excerpts
Lasers SweptWavelengthFinelyTunedMultipurposeOEMModules Tuning Range (mode-hop free) 975 985 nm 1050֖ 1075 nm 1055 1070 nm 1220֖ 1250 nm 1270 1330 nm 1415֖ 1480 nm 1470 1545 nm Typical Maximum Power 14mW 6mW 20mW 7mW 7mW 8mW 15mWMinimum Power 12 mW 4mW 15 mW 5mW 5mW 3mW 8mWFine-Frequency Tuning Range 50GHz(0.16 nm) 50GHz(0.19 nm) 50GHz(0.19 nm) 45GHz(0.23 nm) 50GHz(0.29 nm) 30GHz(0.21 nm) 50GHz(0.38 nm)Linewidth > ֆ <300 kHz <300 kHz <300 kHz <300 kHz <300 kHz <300 kHz <300 kHzMaximum Coarse-TuningSpeed 12nm/s 12nm/s 12nm/s 20nm/s 15nm/s 20nm/s 20nm/sCoarse-Tuning Resolution 0.02 nm 0.02 nm 0.02...
