three phase transformer
Product catalog summary
Overview: This document provides technical specifications and details for various types of transformers and related electrical components, including autostarter transformers, three-phase transformers, control transformers, line reactors, and special units. All products conform to EN60742, IEC742, and IEC61558 standards.
General Specifications:
- Double wound with earth screen between windings
- Frequency range: 50/60 Hz
- Terminal block connection
- Continuous duty with full varnish impregnation for silent running
- Safety isolating and fully enclosed
- Fits standard 35mm DIN rail
Transformer Specifications:
- Primary voltages: 0 - 220 - 230 - 240 V
- Secondary voltages: 0 - 12, 0 - 24, 0 - 48, 0 - 110, 0 - 230 V
- VA ratings range from 50 to 2500 VA
- Dimensions and weight vary by model
Control Panel Transformers:
- DIN rail mounted
- Input voltages: 230 V and 415 V
- Output voltages: 24 V and 110 V
- VA ratings: 40 and 80 VA
Auto Starter Transformers:
- Designed for Korndorffer method of starting
- Conforms to BS4941 (EN 609470)
- Normal input voltage: 380 - 415 V with tappings of 50%, 65%, and 80%
- Rated for 15 starts per hour
- Available in various power ratings from 15.0 kW to 550.0 kW
Contact Information:
- Boardman Transformers, Units 3 + 4, Station Yard Industrial Estate, Old Furness Road, Coniston, Cumbria, LA21 8HU, United Kingdom
- Phone: +44 (0) 15394 41904
- Fax: +44 (0) 15394 41907
See more
Catalog excerpts

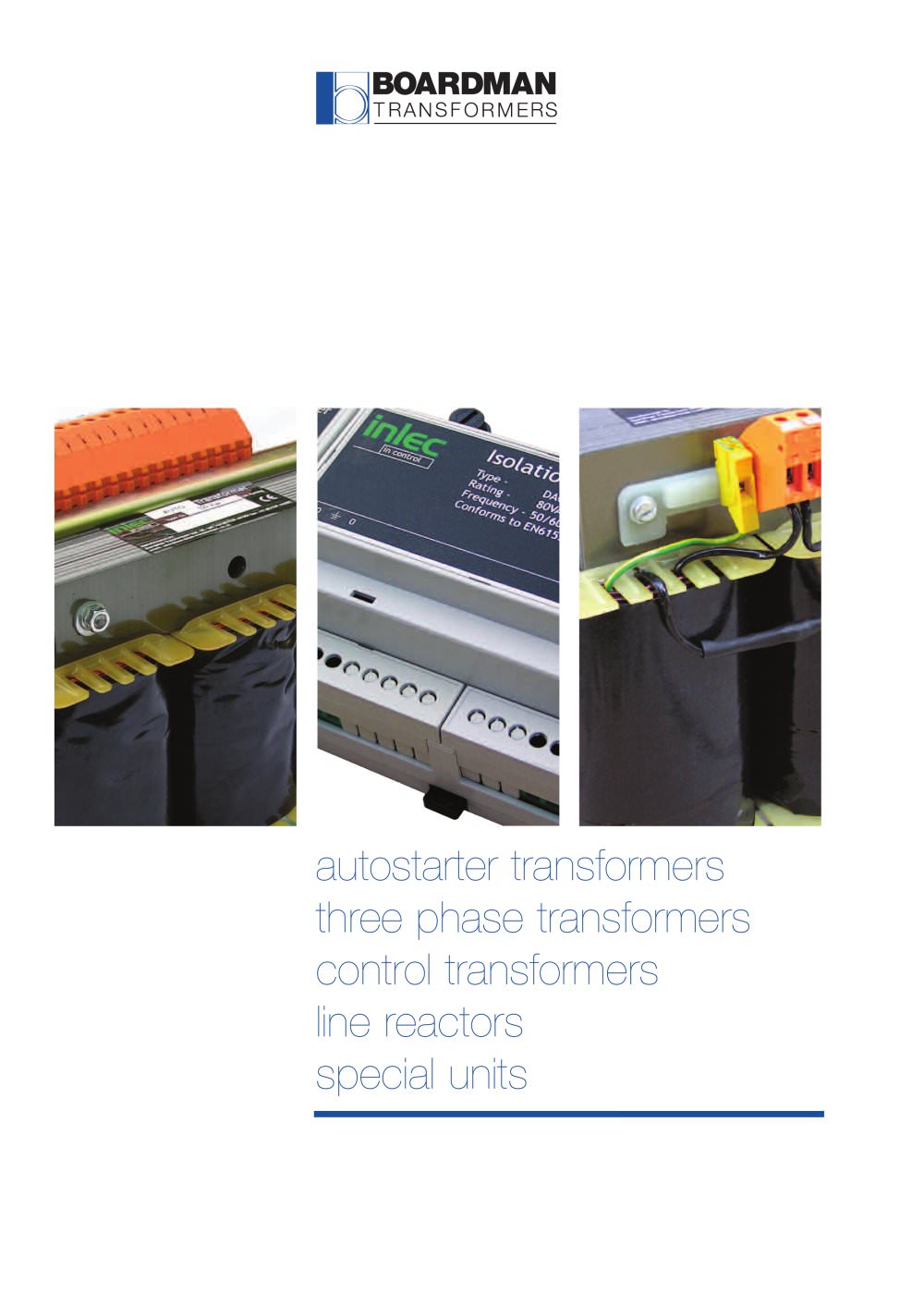

autostarter transformersthree phase transformers control transformers line reactors special units >
