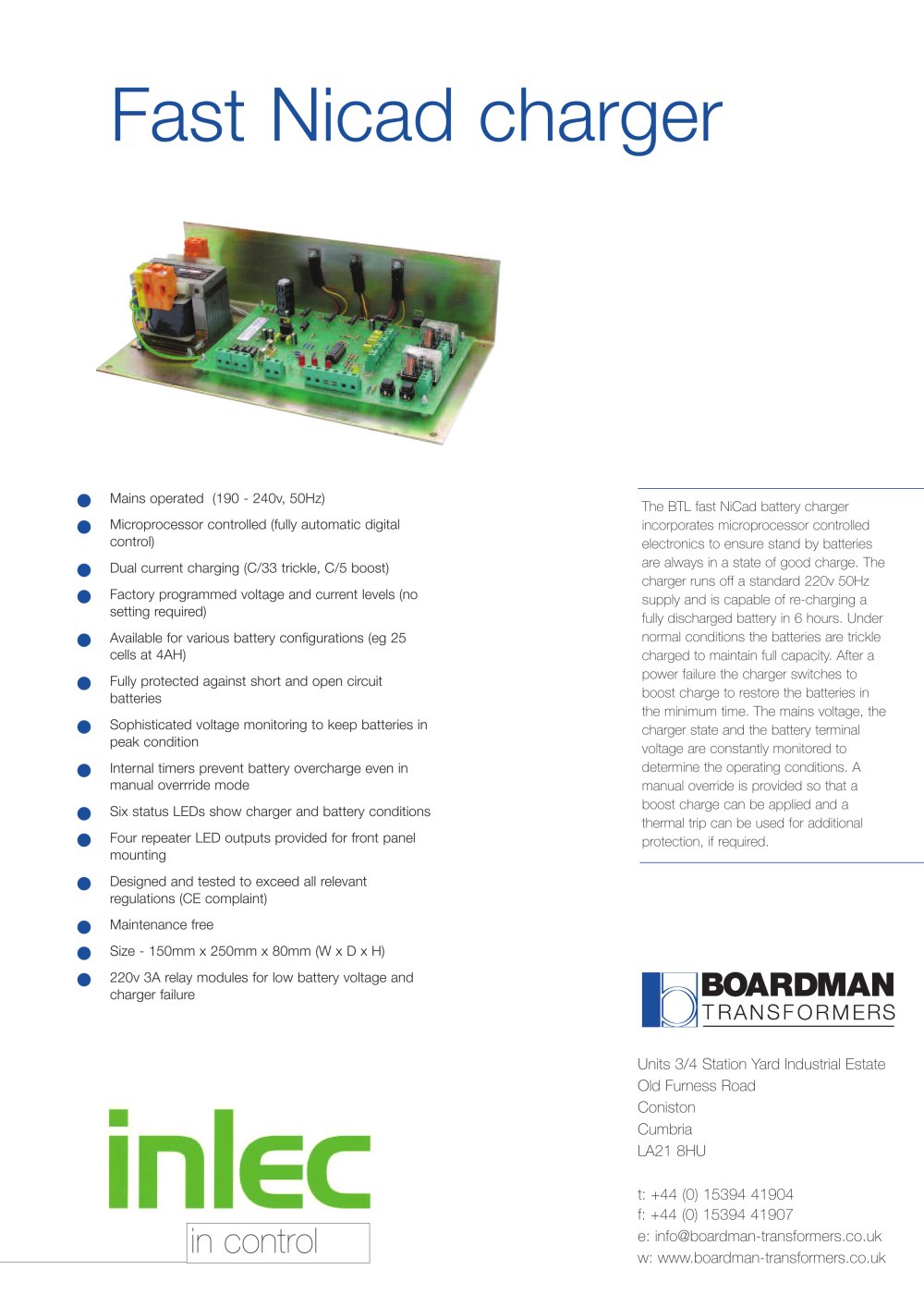

Fast Nicad charger
Fast Nicad charger
- Mains operated with a voltage range of 190 - 240V and frequency of 50Hz.
- Microprocessor controlled for fully automatic digital control.
- Dual current charging options: C/33 trickle charge and C/5 boost charge.
- Factory programmed voltage and current levels, eliminating the need for manual settings.
- Compatible with various battery configurations, such as 25 cells at 4AH.
- Dimensions: 150mm x 250mm x 80mm (W x D x H).
- Fully protected against short and open circuit batteries.
- Sophisticated voltage monitoring to maintain batteries in peak condition.
- Internal timers to prevent overcharging, even in manual override mode.
- Six status LEDs to indicate charger and battery conditions.
- Four repeater LED outputs for front panel mounting.
- Designed and tested to exceed all relevant regulations, CE compliant.
- Maintenance-free operation.
- 220V 3A relay modules for low battery voltage and charger failure.
- The BTL fast NiCad battery charger ensures standby batteries are always well-charged.
- Capable of recharging a fully discharged battery in 6 hours.
- Under normal conditions, batteries are trickle charged to maintain full capacity.
- After a power failure, the charger switches to boost charge for rapid restoration.
- Constant monitoring of mains voltage, charger state, and battery terminal voltage to determine operating conditions.
- Manual override available for applying a boost charge.
- Optional thermal trip for additional protection.
- Address: Units 3/4 Station Yard Industrial Estate, Old Furness Road, Coniston, Cumbria, LA21 8HU
- Phone: +44 (0) 15394 41904
- Fax: +44 (0) 15394 41907
- Email: info@boardman-transformers.co.uk
- Website: www.boardman-transformers.co.uk
Catalog excerpts
untitled table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:7.00pt "Arial", sans-serif; } .font1 { font:8.00pt "Arial", sans-serif; } .font2 { font:9.00pt "Arial", sans-serif; } .font3 { font:17.00pt "Arial", sans-serif; } .font4 { font:19.00pt "Arial", sans-serif; } .font5 { font:10.00pt "Tahoma", sans-serif; } .font6 { font:56.00pt "Trebuchet MS", sans-serif; } Fast Nicad charger Mains operated (190 - 240v, 50Hz) Օ Microprocessor controlled (fully automatic digital control) Dual current charging (C/33 trickle, C/5 boost) Օ Factory programmed voltage and current levels (no setting required) Available for various battery configurations (eg 25 cells at 4AH) Օ Fully protected against short and open circuit batteries Sophisticated voltage monitoring to keep batteries in peak condition Օ Internal timers prevent battery overcharge even in manual overrride mode Six status LEDs show charger and battery conditions Օ Four repeater LED outputs provided for front panel mounting Designed and tested to exceed all relevant regulations (CE complaint) Օ Maintenance free Size - 150mm x 250mm x 80mm (W x D x H) Օ 220v 3A relay modules for low battery voltage and charger failure The BTL fast NiCad battery charger incorportes microprocessor controlled electronics to ensure stand by batteries are always in a state of good charge. The charger runs off a standard 220v 50Hz supply and is capable of re-charging a fully discharged battery in 6 hours. Under normal conditions the batteries are trickle charged to maintain full capacity. After a power failure the charger switches to boost charge to restore the batteries in the minimum time. The mains voltage, the charger state and the battery terminal voltage are constantly monitored to determine the operating conditions. A manual override is provided so that a boost charge can be applied and a thermal trip can be used for additional protection, if required. BQARDMAN ILJtransformers inlec Units 3/4 Station Yard Industrial Estate Old Furness Road Coniston Cumbria LA21 8HU t: +44 (0) 15394 41904 f: +44 (0) 15394 41907 e: [email protected] w: www.boardman-transformers.co.uk in control
