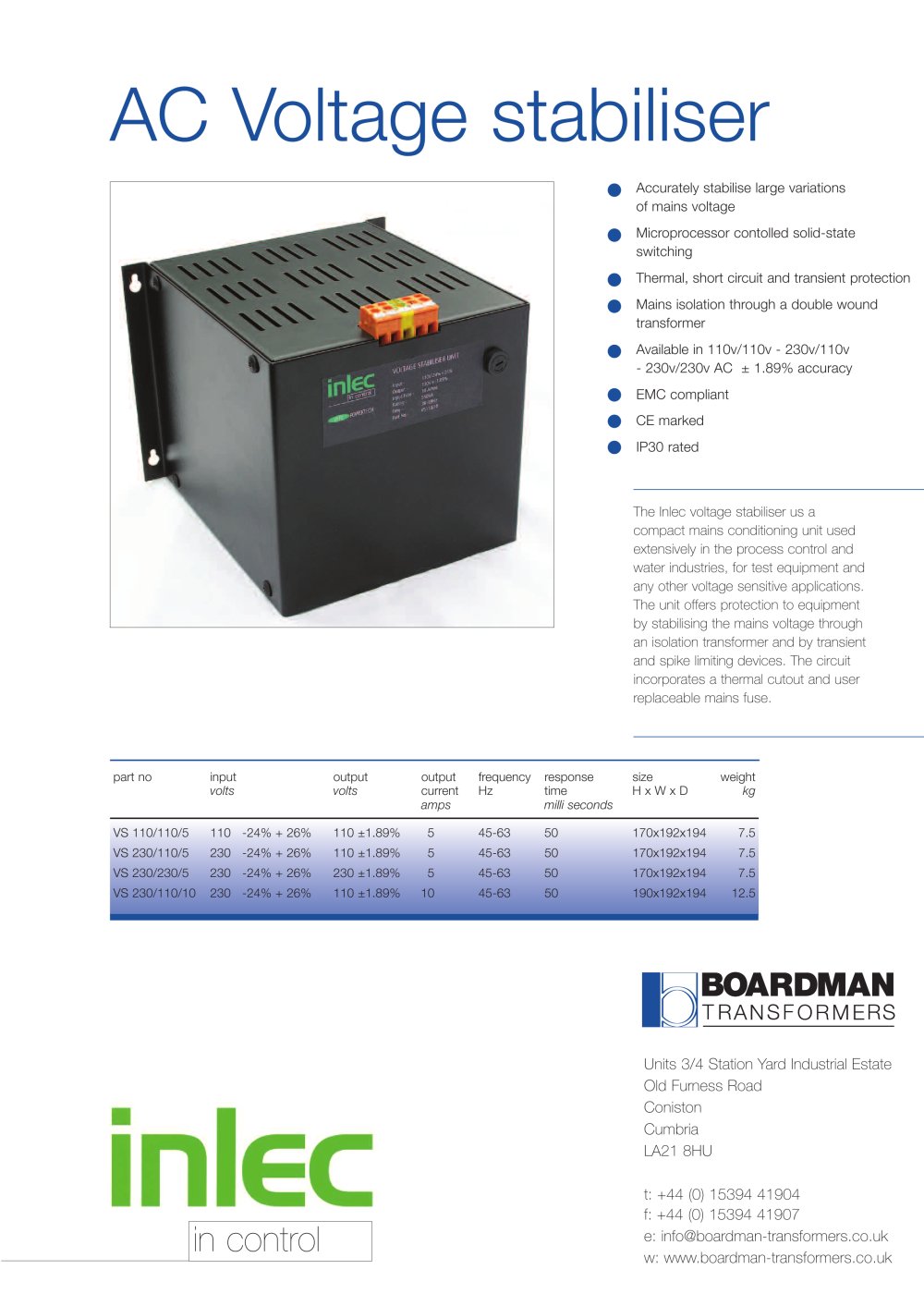

AC Voltage stabiliser
AC Voltage stabiliser
- Accurate stabilisation of large mains voltage variations.
- Microprocessor-controlled solid-state switching.
- Thermal, short circuit, and transient protection.
- Mains isolation through a double wound transformer.
- Available configurations: 110v/110v, 230v/110v, 230v/230v AC with ± 1.89% accuracy.
- EMC compliant and CE marked.
- IP30 rated for protection against dust and water.
- VS 110/110/5: Input 110V, Output 110V, Current 5A, Frequency 45-63Hz, Response time 50ms, Size 170x192x194mm, Weight 7.5kg.
- VS 230/110/5: Input 230V, Output 110V, Current 5A, Frequency 45-63Hz, Response time 50ms, Size 170x192x194mm, Weight 7.5kg.
- VS 230/230/5: Input 230V, Output 230V, Current 5A, Frequency 45-63Hz, Response time 50ms, Size 170x192x194mm, Weight 7.5kg.
- VS 230/110/10: Input 230V, Output 110V, Current 10A, Frequency 45-63Hz, Response time 50ms, Size 190x192x194mm, Weight 12.5kg.
Catalog excerpts
untitled table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:7.00pt "Arial", sans-serif; } .font1 { font:8.00pt "Arial", sans-serif; } .font2 { font:9.00pt "Arial", sans-serif; } .font3 { font:20.00pt "Arial", sans-serif; } .font4 { font:26.00pt "Arial", sans-serif; } .font5 { font:44.00pt "Arial", sans-serif; } .font6 { font:85.00pt "Arial", sans-serif; } AC Voltage stabiliser Accurately stabilise large variations of mains voltage Օ Microprocessor contolled solid-state switching Thermal, short circuit and transient protection Օ Mains isolation through a double wound transformer Available in 110v/110v - 230v/110v - 230v/230v AC ± 1.89% accuracy Օ EMC compliant CE marked Օ IP30 rated The Inlec voltage stabiliser us a compact mains conditioning unit usec extensively in the process control anc water industries, for test equipment anc any other voltage sensitive applications. The unit offers protection to equipment by stabilising the mains voltage through an isolation transformer and by transient and spike limiting devices. The circuit incorporates a thermal cutout and user replaceable mains fuse. part no input output output frequency response size weight volts volts current Hz time H x W x D kg amps milli seconds VS 110/110/5 110 -24% + 26% 110 ±1.89% 5 45-63 50 170x192x194 7.5 VS 230/110/5 230 -24% + 26% 110 ±1.89% 5 45-63 50 170x192x194 7.5 VS 230/230/5 230 -24% + 26% 230 ±1.89% 5 45-63 50 170x192x194 7.5 VS 230/110/10 230 -24% + 26% 110 ±1.89% 10 45-63 50 190x192x194 12.5 inlec in control 1 J BOARDM AN IUItransformers Units 3/4 Station Yard Industrial Estate Old Furness Road Coniston Cumbria LA21 8HU t: +44 (0) 15394 41904 f: +44 (0) 15394 41907 e: [email protected] w: www.boardman-transformers.co.uk
