helically corrugated hoses

Product catalog summary

Materials and Construction:
The BOA DUO helically corrugated stainless steel hose is constructed from stainless steel 1.4571 (similar to AISI 316 Ti) for the corrugated hose and stainless steel 1.4301 (similar to AISI 304) for the braid. Special materials are available upon request.

Specifications:
The document provides detailed specifications for various diameters (DN) of hoses, including permissible working pressure at 20°C, inside and outside diameters, tolerance, bend radius (static and dynamic), weight, production length, and item numbers. The hoses are available in different braid types (A, B, C) with varying pressure ratings and dimensions.

Design and Features:
The metal hoses are double-ply, helically corrugated, and resistance welded at the crest, offering high flexibility and excellent vibration absorption. The design complies with the ISO-10380 standard, ensuring stability and performance in high-pressure applications.

Applications:
The hoses are suitable for high-pressure applications, vibration absorption, engine construction, pumps, compressors, and heavy-duty pressure pipes under extreme conditions.

Additional Information:
The document references additional technical instructions for metal hoses and assemblies, including reduction factors for heavy-duty conditions. It also mentions the integration of technical information, installation instructions, and guarantee/delivery terms as part of the product information.

Catalog excerpts

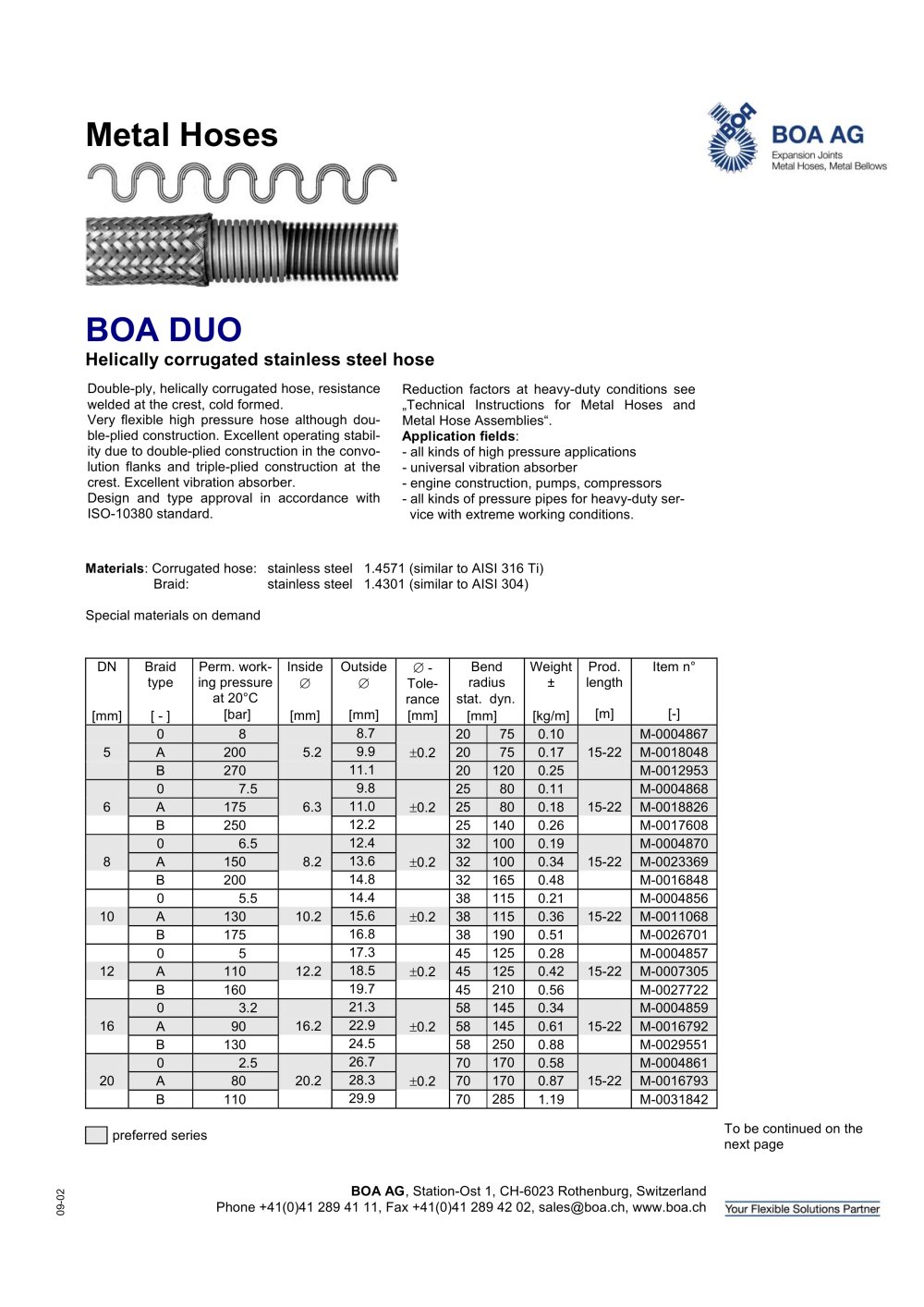

BOA DUO Helically corrugated stainless steel hose Materials: Corrugated hose: stainless steel 1.4571 (similar to AISI 316 Ti) Braid: stainless steel 1.4301 (similar to AISI 304) Special materials on demand DN [mm] Braid type [ - ] Perm. working pressure at 20°C [bar] Inside [mm] Outside [mm] - Tolerance [mm] Bend radius stat. dyn. [mm] Weight ± [kg/m] Prod. length [m] Item n° [-] 0 8 8.7 20 75 0.10 M-0004867 5 A 200 5.2 9.9 ±0.2 20 75 0.17 15-22 M-0018048 B 270 11.1 20 120 0.25 M-0012953 0 7.5 9.8 25 80 0.11 M-0004868 6 A 175 6.3 11.0 ±0.2 25 80 0.18 15-22 M-0018826 B 250 12.2 25 140 0.26 M-0017608 0 6.5 12.4 32 100 0.19 M-0004870 8 A 150 8.2 13.6 ±0.2 32 100 0.34 15-22 M-0023369 B 200 14.8 32 165 0.48 M-0016848 0 5.5 14.4 38 115 0.21 M-0004856 10 A 130 10.2 15.6 ±0.2 38 115 0.36 15-22 M-0011068 B 175 16.8 38 190 0.51 M-0026701 0 5 17.3 45 125 0.28 M-0004857 12 A 110 12.2 18.5 ±0.2 45 125 0.42 15-22 M-0007305 B 160 19.7 45 210 0.56 M-0027722 0 3.2 21.3 58 145 0.34 M-0004859 16 A 90 16.2 22.9 ±0.2 58 145 0.61 15-22 M-0016792 B 130 24.5 58 250 0.88 M-0029551 0 2.5 26.7 70 170 0.58 M-0004861 20 A 80 20.2 28.3 ±0.2 70 170 0.87 15-22 M-0016793 B 110 29.9 70 285 1.19 M-0031842 preferred series Metal Hoses Double-ply, helically corrugated hose, resistance welded at the crest, cold formed. Very flexible high pressure hose although double- plied construction. Excellent operating stability due to double-plied construction in the convolution flanks and triple-plied construction at the crest. Excellent vibration absorber. Design and type approval in accordance with ISO-10380 standard. Reduction factors at heavy-duty conditions see „Technical Instructions for Metal Hoses and Metal Hose Assemblies“. Application fields: - all kinds of high pressure applications - universal vibration absorber - engine construction, pumps, compressors - all kinds of pressure pipes for heavy-duty service with extreme working conditions. To be continued on the next page BOA AG, Station-Ost 1, CH-6023 Rothenburg, Switzerland Phone +41(0)41 289 41 11, Fax +41(0)41 289 42 02, [email protected], www.boa.ch 09-02
