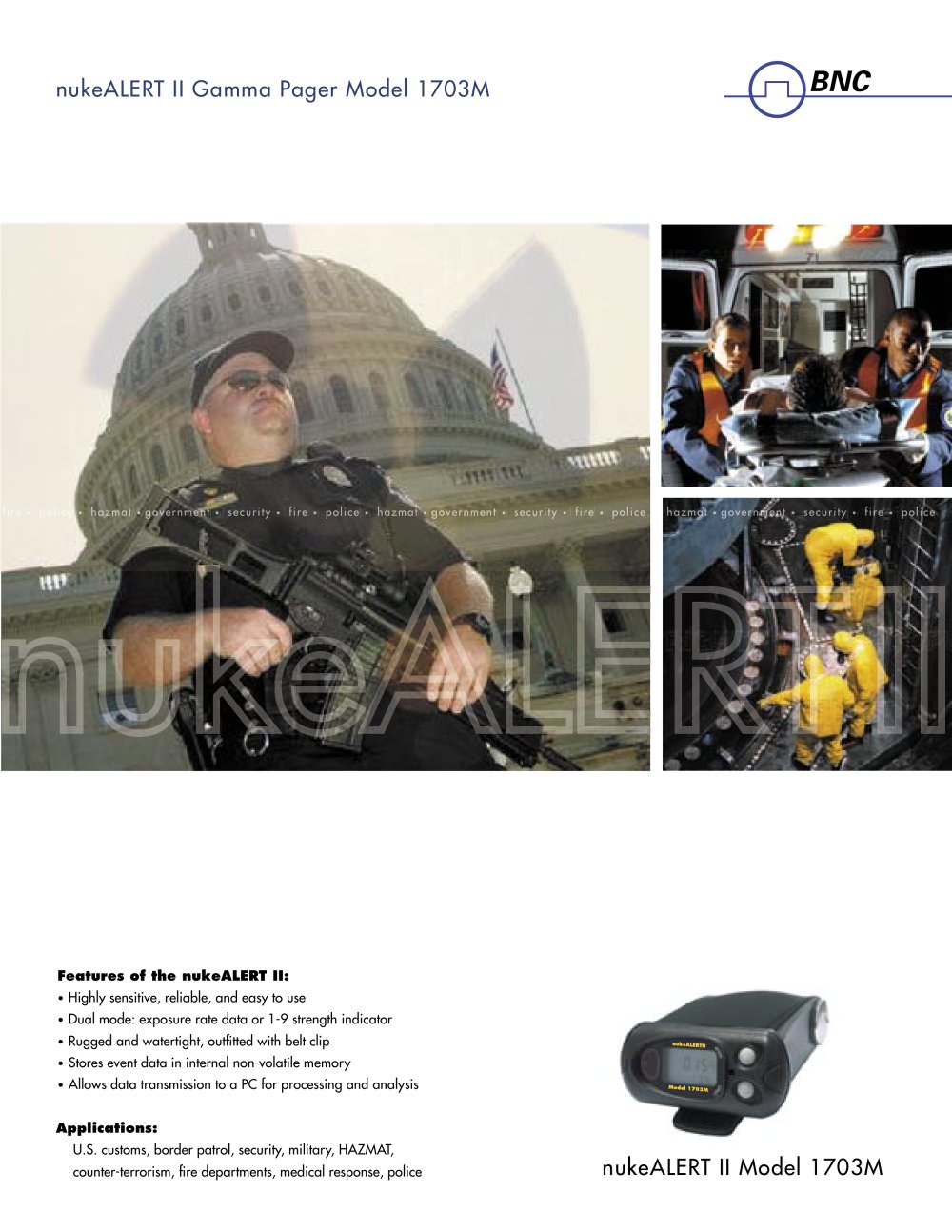

nukeALERT II Gamma Pager Model 1703M

Product catalog summary

Overview: The nukeALERT II Model 1703M is a highly sensitive and reliable radiation detection device designed for non-technical personnel. It is suitable for use in various fields such as customs, border patrol, security, military, HAZMAT, counter-terrorism, fire departments, medical response, and police.

Key Features:

Dual mode operation: Provides exposure rate data and a 1-9 strength indicator for source analysis.
Rugged and watertight design with a belt clip for hands-free operation.
Stores up to 1000 incident histories in internal non-volatile memory.
Data transmission capability to a PC for further processing and analysis.
Equipped with a bright visual display and shock-resistant housing.

Applications: The device is essential for emergency services, hazardous materials handling, counter-terrorism, border patrol, law enforcement, military, and medical and industrial applications.

Specifications:

Detector: Csl (TI) Scintillator.
Energy range: 0.033 – 3.0 MeV for gamma radiation.
Sensitivity: 1cps/(µR/hr) [100cps /(µSv/hr)] for 662 keV of Cs137.
Dose rate range: 1-7000 µR/hr (0.01-70 µSv/hr).
Threshold setting range: 15-360 µR/hr (0.15-3.60 µSv/hr).
Environmental tolerances: Temperature range from -22°F to 122°F (-30°C to +50°C), relative humidity up to 95% at 95°F (35°C).
Drop test: 0.7 m on concrete surface.
Protection class: IP65.
Battery life: No less than 800 hours based on 24/7 usage.
Power requirements: 1 AA battery.
Weight: 180 g including the battery.
Dimensions: 27.7 × 70 × 72 mm.

Conclusion: The nukeALERT II is a critical tool for first responders and professionals in various sectors requiring reliable radiation detection and monitoring capabilities. Its robust design and advanced features make it suitable for demanding environments.
