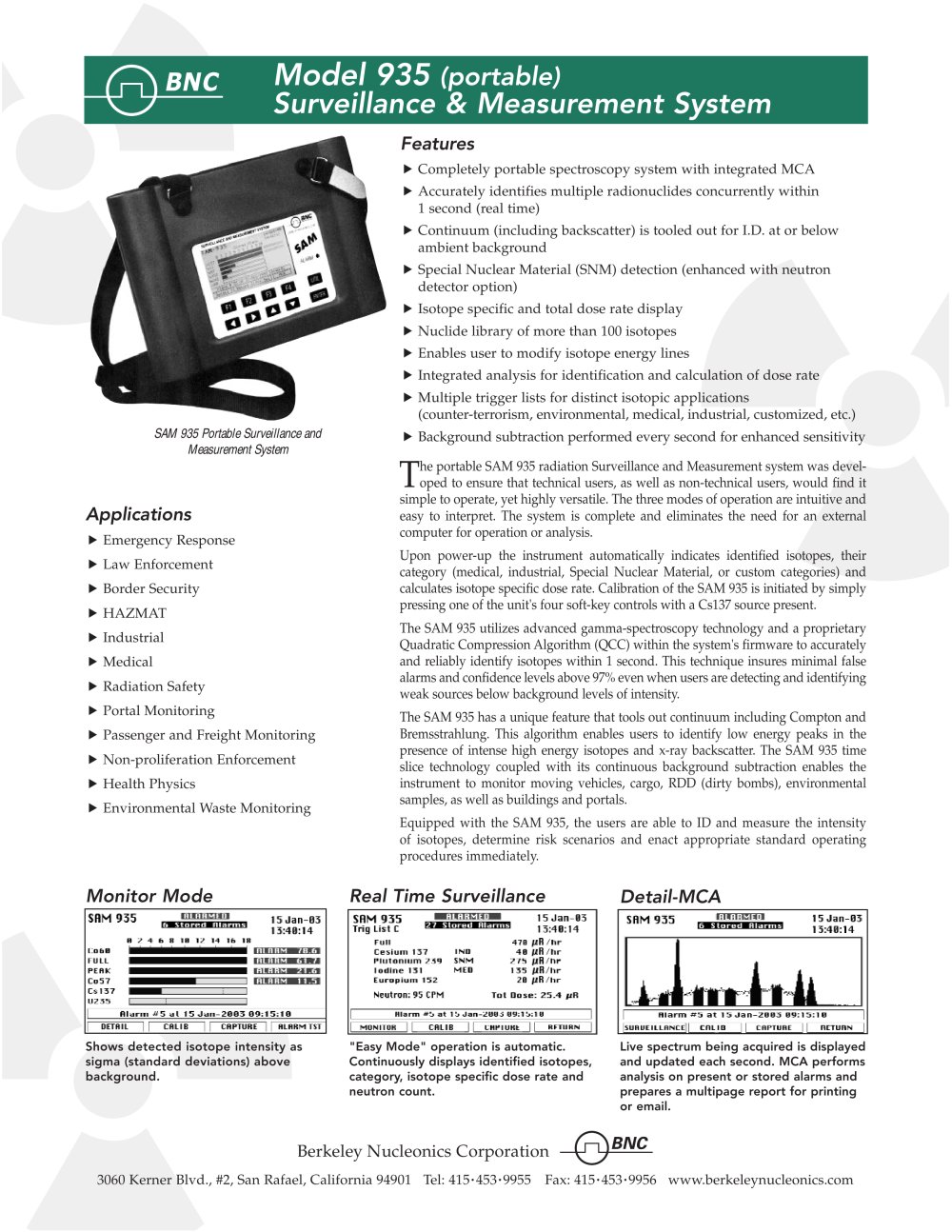

Model SAM 935 Portable Gamma Spectroscopy System
2Pages

3060 Kerner Blvd., #2, San Rafael, California 94901 Tel: 415 l 453 l 9955 Fax: 415 l 453 l 9956 www.berkeleynucleonics.com Berkeley Nucleonics Corporation BNC Model 935 (portable) Surveillance & Measurement System SAM 935 Portable Surveillance and Measurement System Features G Completely portable spectroscopy system with integrated MCA G Accurately identifies multiple radionuclides concurrently within 1 second (real time) G Continuum (including backscatter) is tooled out for I.D. at or below ambient background G Special Nuclear Material (SNM) detection (enhanced with neutron detector option) G Isotope specific and total dose rate display G Nuclide library of more than 100 isotopes G Enables user to modify isotope energy lines G Integrated analysis for identification and calculation of dose rate G Multiple trigger lists for distinct isotopic applications (counter-terrorism, environmental, medical, industrial, customized, etc.) G Background subtraction performed every second for enhanced sensitivity Applications G Emergency Response G Law Enforcement G Border Security G HAZMAT G Industrial G Medical G Radiation Safety G Portal Monitoring G Passenger and Freight Monitoring G Non-proliferation Enforcement G Health Physics G Environmental Waste Monitoring The portable SAM 935 radiation Surveillance and Measurement system was developed to ensure that technical users, as well as non-technical users, would find it simple to operate, yet highly versatile. The three modes of operation are intuitive and easy to interpret. The system is complete and eliminates the need for an external computer for operation or analysis. Upon power-up the instrument automatically indicates identified isotopes, their category (medical, industrial, Special Nuclear Material, or custom categories) and calculates isotope specific dose rate. Calibration of the SAM 935 is initiated by simply pressing one of the unit's four soft-key controls with a Cs137 source present. The SAM 935 utilizes advanced gamma-spectroscopy technology and a proprietary Quadratic Compression Algorithm (QCC) within the system's firmware to accurately and reliably identify isotopes within 1 second. This technique insures minimal false alarms and confidence levels above 97% even when users are detecting and identifying weak sources below background levels of intensity. The SAM 935 has a unique feature that tools out continuum including Compton and Bremsstrahlung. This algorithm enables users to identify low energy peaks in the presence of intense high energy isotopes and x-ray backscatter. The SAM 935 time slice technology coupled with its continuous background subtraction enables the instrument to monitor moving vehicles, cargo, RDD (dirty bombs), environmental samples, as well as buildings and portals. Equipped with the SAM 935, the users are able to ID and measure the intensity of isotopes, determine risk scenarios and enact appropriate standard operating procedures immediately. Shows detected isotope intensity as sigma (standard deviations) above background. "Easy Mode" operation is automatic. Continuously displays identified isotopes, category, isotope specific dose rate and neutron count. Live spectrum being acquired is displayed and updated each second. MCA performs analysis on present or stored alarms and prepares a multipage report for printing or email. Monitor Mode Real Time Surveillance Detail-MCA

BNC Power: NiMH; Internal battery pack; external factorysupplied dual mode supply/charger, 12w; Continuous 110V Operation Available, 8 hr. battery life Model 935 Specifications 3060 Kerner Blvd., #2, San Rafael, California 94901 Tel: 415 l 453 l 9955 Fax: 415 l 453 l 9956 www.berkeleynucleonics.com Berkeley Nucleonics Corporation Features ADC Type: Base Converter 14-bit Successive Approximation Conversion Modes: Linear - 256, 512, 1024 Channels QCC - 256, 512 Channels (U.S. Patent 5,608,222) LLD: 0 to 105% of full scale digitally adjustable in .1% intervals ULD: 0 to 105% of full scale...
