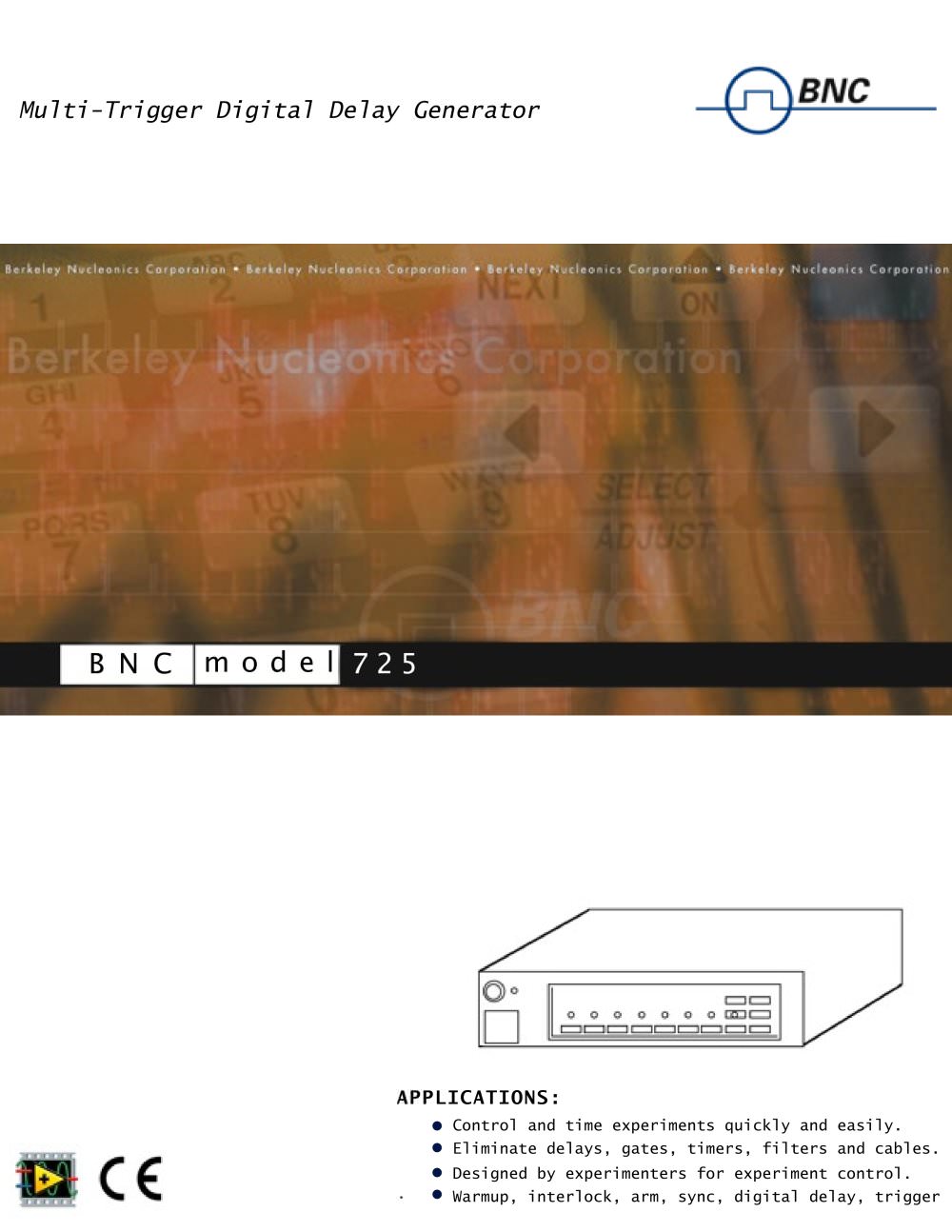

Model 725 Multi-Trigger Digital Delay Generator
6Pages

Multi-Trigger Digital Delay Generator model BNC 725 > APPLICATIONS: Control and time experiments quickly and easily. Eliminate delays, gates, timers, filters and cables. Designed by experimenters for experiment control. Warmup, interlock, arm, sync, digital delay, trigger size="-3">

Researchers and system integrators, needing controls and diagnostics for their experiments and systems, are regularly forced to build from scratch or to piece together several boxes. Many hours are spent learning the idiosyncrasies of each box and how to properly couple boxes to each other. Each box has its own programming protocol. Valuable time is lost to tracking connections, taming noisy signals, adjusting timing on multiple boxes and other aggravating chores. Now one box will eliminate much of this. The Model 725 coordinates, integrates and synchronizes complicated setups, simply,...

INTERNAL TIMING PROCESSORS PROCESSOR MATRIX Independent Timing; each timing processor operates in its own mode. Logic Statements (OR, AND, XOR, Negated, etc) can be used to create combinations of external inputs and external outputs. The Rear Panel input and output jacks are the combinatorial logic inputs to the timing processors. FRONT PANEL POWER BUTTON Multi-Function (Powers Unit, Initiates a Diagnostic, Enable/Disable Indicator for Front Panel Controls) FUNCTION BUTTONS Pairs with a channel CHANNEL LED ALL LED Indicates State (Disabled, Trigger Ready, Triggered) Indicates Status for All...

The Model 725s logic is engineered for fast data throughput (11 ns) and minimal throughput spread (< 1 ns). It would be difficult to match this performance with external cabling and hard-wired logic. > The Model 725 hardware controller can operate in stand-alone mode or via computer control. The computer control system uses its own user-friendly software, timerPRO, or LabView,ҙ both tested and proven in many experiments. timerPRO makes it easy to create sophisticated control schemes from your PC. With the Model 725 linked to your computer, youll quickly program, refine and expand...

Tabs for Channel Settings: 1. Logic sets combinatorial logic for timers. 2. Delay selects delay, width, inverted pulse. 3. Triggering can be normal, skip N triggers, retrigger N times. 4. Sweep selects delay increment per trigger. > Berkeley Nucleonics Corporation 2955 Kerner Blvd San Rafael, CA 94901 U.S.APhone: 800.234.7858 Fax: 415.453.9956 E-mail: info@berkeleynucleonics.com >
