Overview: The BNC Model 645 is a 50MHz Function/Arbitrary Waveform Generator designed by Berkeley Nucleonics Corporation. It features advanced capabilities and user modes, leveraging DDS+ technology for enhanced performance and economic efficiency. The device supports IP control via a web browser over LAN.

Specifications: The generator operates at 50MHz with a 14-bit resolution and a sampling rate of 125M samples/sec. It supports various waveform types including Sine, Square, Ramp, Triangle, Pulse, Noise, and DC. The device can sync with multiple units or an external clock.

Features: The Model 645 offers significant improvements over previous models, including increased speed, sample rates, and memory capacity. It allows for the storage of up to five waveforms concurrently and features tactile front panel controls for ease of use.

Pulse Generation: The device supports the generation of complex custom waveforms, suitable for R&D activities. It can generate variable-edge pulses up to 10MHz, with adjustable period, pulse width, and amplitude. Users can store pulse parameters for later recall and apply them across multiple units.

Software and Connectivity: The BNC WaveCrafter software enables users to create, edit, and download complex waveforms efficiently. It supports waveform storage on a PC and retrieval from digital and mixed-signal oscilloscopes. The device also features data transmission via a "Pattern Out" for control signals.

Contact Information: Berkeley Nucleonics Corporation is located at 2955 Kerner Blvd., San Rafael, CA 94901, USA. They can be contacted via phone at 800.234.7858 or fax at 415.453.9956. Email inquiries can be sent to [email protected].

Catalog excerpts

Model 645 - 50MHz Arbitrary Waveform/Function Generator-1

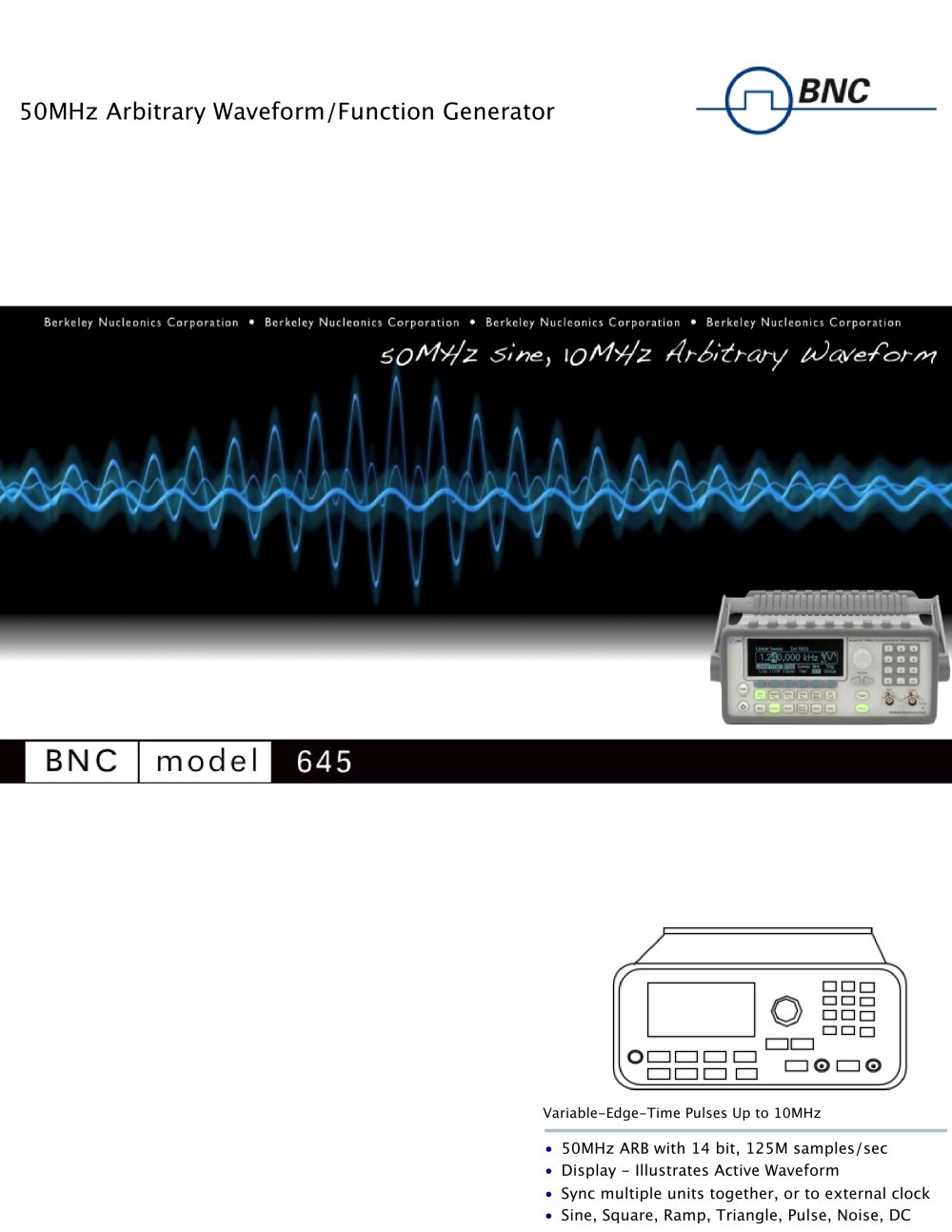

• 50MHz ARB with 14 bit, 125M samples/sec • Display - Illustrates Active Waveform • Sync multiple units together, or to external clock • Sine, Square, Ramp, Triangle, Pulse, Noise, DC 50MHz Arbitrary Waveform/Function Generator Variable-Edge-Time Pulses Up to 10MHz

Open the catalog to page 1

Model 645 - 50MHz Arbitrary Waveform/Function Generator-2

B e r k e l e y N u c l e o n i c s C o r p o r a t i o n , 2 9 5 5 K e r n e r B l v d . , S a n R a f a e l C A 9 4 9 0 1 U . S . A P h o n e : 8 0 0 . 2 3 4 . 7 8 5 8 F a x : 4 1 5 . 4 5 3 . 9 9 5 6 E - m a i l : i n f o @ b e r k e l e y n u c l e o n i c s . c o m 6 4 5 The BNC Model 645 50MHz Funct ion/Arbi t rary Waveform Generator del ivers many advanced features and user modes than our previous models, wi th a pr ice that is designed to meet tough economic const raints. New DDS+ technology embraces advancements in the semiconductor indust ry and leverages state-of - the-ar t components...
