Model 630 / Model 632
2Pages

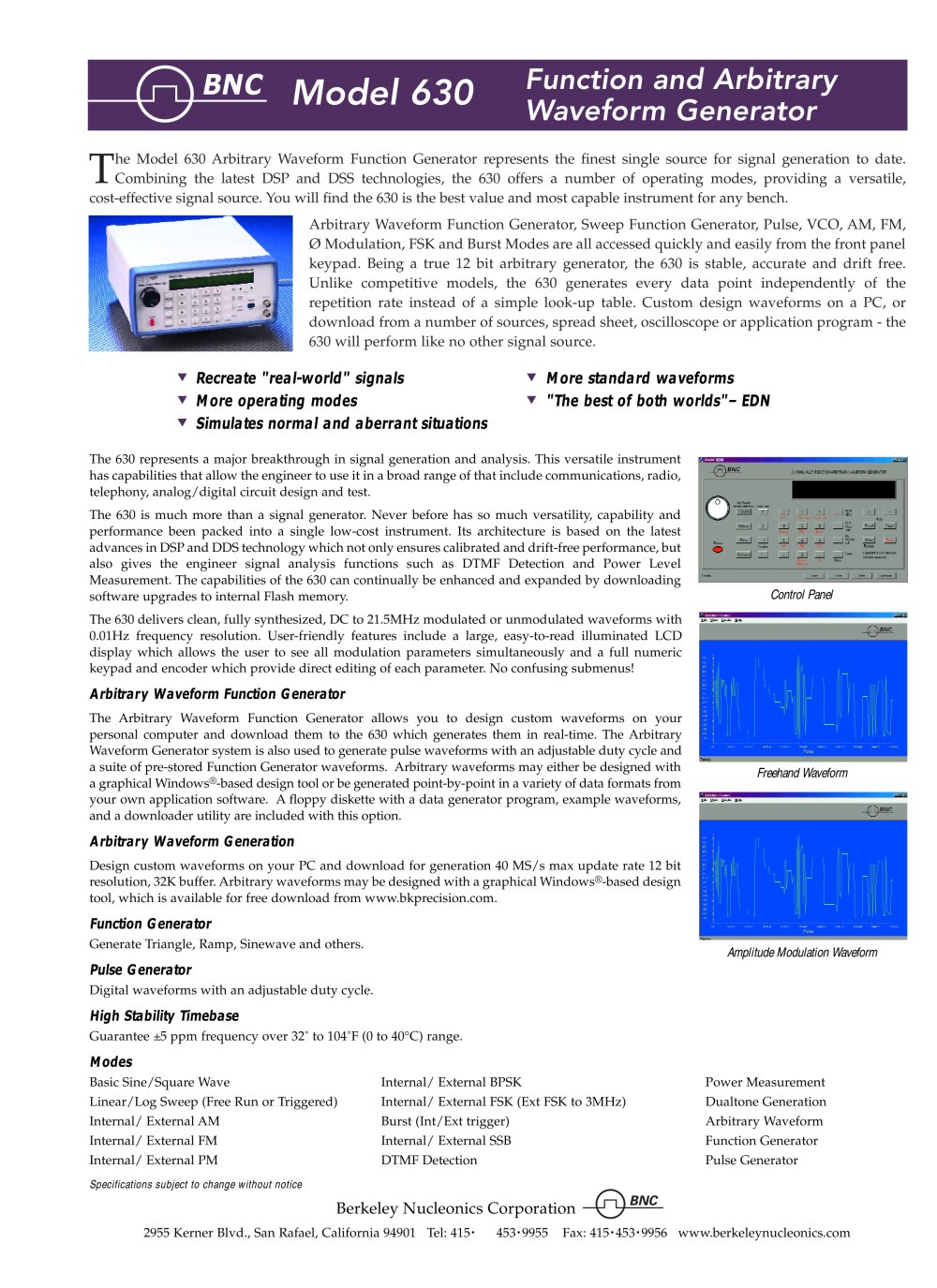

The Model 630 Arbitrary Waveform Function Generator represents the finest single source for signal generation to date. Combining the latest DSP and DSS technologies, the 630 offers a number of operating modes, providing a versatile, cost-effective signal source. You will find the 630 is the best value and most capable instrument for any bench. Arbitrary Waveform Function Generator, Sweep Function Generator, Pulse, VCO, AM, FM, Ø Modulation, FSK and Burst Modes are all accessed quickly and easily from the front panel keypad. Being a true 12 bit arbitrary generator, the 630 is stable, accurate and drift free. Unlike competitive models, the 630 generates every data point independently of the repetition rate instead of a simple look-up table. Custom design waveforms on a PC, or download from a number of sources, spread sheet, oscilloscope or application program - the 630 will perform like no other signal source. t Recreate "real-world" signals t More standard waveforms t More operating modes t "The best of both worlds"– EDN t Simulates normal and aberrant situations The 630 represents a major breakthrough in signal generation and analysis. This versatile instrument has capabilities that allow the engineer to use it in a broad range of that include communications, radio, telephony, analog/digital circuit design and test. The 630 is much more than a signal generator. Never before has so much versatility, capability and performance been packed into a single low-cost instrument. Its architecture is based on the latest advances in DSP and DDS technology which not only ensures calibrated and drift-free performance, but also gives the engineer signal analysis functions such as DTMF Detection and Power Level Measurement. The capabilities of the 630 can continually be enhanced and expanded by downloading software upgrades to internal Flash memory. The 630 delivers clean, fully synthesized, DC to 21.5MHz modulated or unmodulated waveforms with 0.01Hz frequency resolution. User-friendly features include a large, easy-to-read illuminated LCD display which allows the user to see all modulation parameters simultaneously and a full numeric keypad and encoder which provide direct editing of each parameter. No confusing submenus! Arbitrary Waveform Function Generator The Arbitrary Waveform Function Generator allows you to design custom waveforms on your personal computer and download them to the 630 which generates them in real-time. The Arbitrary Waveform Generator system is also used to generate pulse waveforms with an adjustable duty cycle and a suite of pre-stored Function Generator waveforms. Arbitrary waveforms may either be designed with a graphical Windows®-based design tool or be generated point-by-point in a variety of data formats from your own application software. A floppy diskette with a data generator program, example waveforms, and a downloader utility are included with this option. Arbitrary Waveform Generation Design custom waveforms on your PC and download for generation 40 MS/s max update rate 12 bit resolution, 32K buffer. Arbitrary waveforms may be designed with a graphical Windows®-based design tool, which is available for free download from www.bkprecision.com. Function Generator Generate Triangle, Ramp, Sinewave and others. Pulse Generator Digital waveforms with an adjustable duty cycle. High Stability Timebase Guarantee ±5 ppm frequency over 32° to 104°F (0 to 40°C) range. Modes Basic Sine/Square Wave Internal/ External BPSK Power Measurement Linear/Log Sweep (Free Run or Triggered) Internal/ External FSK (Ext FSK to 3MHz) Dualtone Generation Internal/ External AM Burst (Int/Ext trigger) Arbitrary Waveform Internal/ External FM Internal/ External SSB Function Generator Internal/ External PM DTMF Detection Pulse Generator Control Panel 2955 Kerner Blvd., San Rafael, California 94901 Tel: 415l 453 l 9955 Fax: 415 l 453 l 9956 www.berkeleynucleonics.com Berkeley Nucleonics Corporation BNC Model 630 Function and Arbitrary Waveform Generator Freehand Waveform Amplitude Modulation Waveform Specifications subject to change without notice

STANDARD FEATURES DC offset capability TTL/CMOS sync output available in all modes RS232 remote control (Easy to use) Code examples included. External logic input for gating or output signal and triggering. Easy software updates via Flash memory. Configuration save/restore: 10 complete front panel setups. MAIN OUTPUT Frequency: DC to 21.5000000 MHz, 0.01 Hz steps Level: 4 mVp-p to 10.000 Vp-p, 1mV steps (into 50 ½) or -44 dBm to +24 dBm, 0.1 dBm steps (into 50 ½) Level Accuracy: ±1% Sinewave Distortion: <1% Flatness: ± 0.2 dB (DC-21.5 MHz) Level 5V @50½ DC offset: 0V to ±6 V, 1 mV steps...
