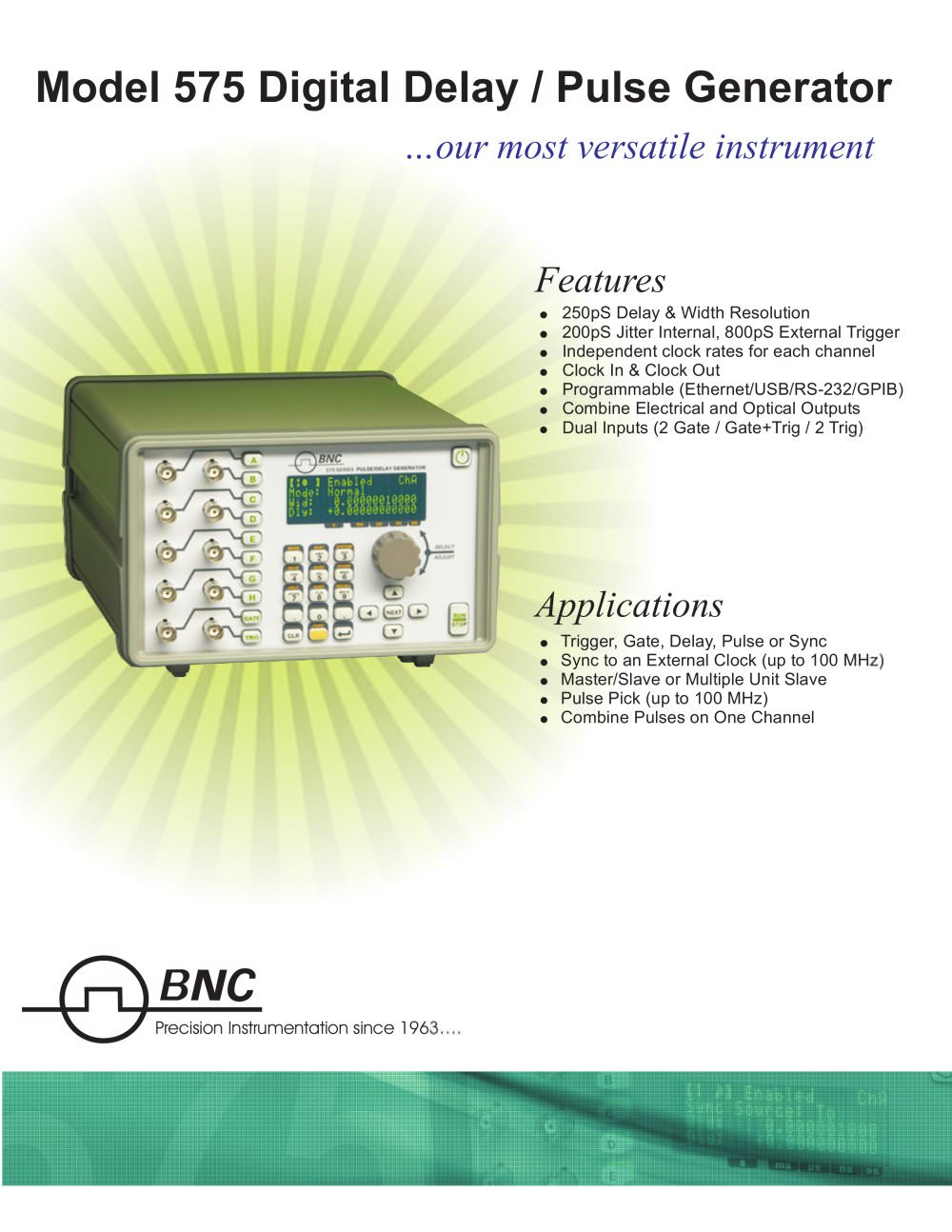

Model 575 Digital Delay / Pulse Generator
4Pages

200pS Jitter Internal, 800pS External Trigger Independent clock rates for each channel Clock In & Clock Out Programmable (Ethernet/USB/RS-232/GPIB) Combine Electrical and Optical Outputs Dual Inputs (2 Gate / Gate+Trig / 2 Trig)250pS Delay & Width Resolution Trigger, Gate, Delay, Pulse or Sync Sync to an External Clock (up to 100 MHz) Master/Slave or Multiple Unit Slave Pulse Pick (up to 100 MHz) Combine Pulses on One Channel > 2955 Kerner Blvd, San Rafael CA 94901 Tel: 415-453-9955 Fax: 415-453-9956 www.berkeleynucleonics.com >

he Model 575 Digital Delay / Pulse Generator represents the latest in timing capabilities. With up to 8 outputs configurations as varied as the applications the product serves, the Model 575 is clearly our most versatile instrument. We have combined advanced features such as a Labview/USB interface, complex burst sequences, Divide-by-N, Setting Profiles, Dual Triggers, Dual Gating, Clock Divider, Pulse Picking and Negative Delay with core technology in precision timing. Our 250pS Delay & Width resolution, and 200pS internal jitter, allow users great confidence in setting up an experiment or...

Auto-SaveDual Input Panel ConnectorsFront Panel High Voltage > Forgot to save your settings? The Model 575 stores your setup configurations while powering down. Recall is automatic on power-up. The Model 575 offers two inputs for triggering or gating. User may specify electrical or optical input signals, and configure any trigger/gate combination. Use Trigger #2 to disable a triggered pulse train.Our modular architecture allows us to offer expanded functionality on user-selected front panel outputs. We offer a front panel High Voltage option ( adjustable to 35V, 200 mV steps) on 2, 4, 6 or...

DelaysSystem External Trigger Input(s) Gate Input(s) Internal Rate GeneratorTTL/Adjustable Outputs Electrical inputs Optical Outputs Optical Inputs Standard Features/Functions Ordering Information Range 0-5000sResolution 250psTimebase25ppm (1ppm optional) RMS Jitter 200ps Pulse Inhibit Delay150ns Output Inhibit Delay 150nsNumber Up to 2Rate DC to 1/(0.2us + longest delay) Threshold 0.2 to 15 VDC Maximum Input Voltage 60 V Peak Resolution 10mV Slope Rising or Falling Impedance 1000 ohm Jitter 800ps RMS Insertion Delay 100nsNumber Up to 2Threshold 0.2 to 15 VDCMaximum Input Voltage 60 V Peak...
