Model 1533 Triple Output DC Power Supply

Product catalog summary

Overview: The document describes the specifications and features of the Berkeley Nucleonics Corporation Model 1533 DC Programmable Power Supply. It is designed to provide stable and reliable DC power for electrical, mechanical, and test engineering applications.

Key Features:

Tracking mode for ±25V outputs.
Highly visible vacuum-fluorescent display for easy monitoring.
Connectivity options include USB, RS-232, and optional GPIB interface.
Portable design with non-skid feet for stability.

Output Ratings:

Voltage Output: 0 to +6V, 0 to +25V, 0 to -25V.
Current Output: 0 to 5A, 0 to 1A, 0 to 1A.
Ripple and Noise: Voltage < 0.35 mVrms/2 mVp-p, Current < 2 mArms.
Common Mode Current: < 1.5 uArms.

Regulation and Accuracy:

Load Regulation: Voltage < 0.01% + 2mV, Current < 0.01% + 250uV.
Line Regulation: Voltage < 0.01% + 2mV, Current < 0.01% + 250uV.
Programming Accuracy: Voltage 0.1% + 5mV, Current 0.2% + 10mA.
Readback Accuracy: Voltage 0.1% + 5mV, Current 0.2% + 10mA.

Resolution:

Programming Resolution: Voltage 0.5mV, Current 0.5mA.
Readback Resolution: Voltage 0.5mV, Current 0.5mA.
Meter Resolution: Voltage 1mV, Current 1mA.

Additional Specifications:

AC Input Ratings: 110V/220V AC ±10%, 47Hz ~ 63Hz, 350VA Max.
Operating Temperature: 0 to 55°C, 0 to 80% RH.
Weight: 8.2 Kg.
Dimensions: 212.6mm W x 132.6mm H x 360mm D (8.4 x 5.2 x 14.2 in).

Applications: The Model 1533 is suitable for various applications, test setups, and power requirements due to its low noise and excellent regulation. It can be controlled from the front panel or a PC using industry-standard SCPI commands.

Catalog excerpts

Model 1533 Triple Output DC Power Supply-1

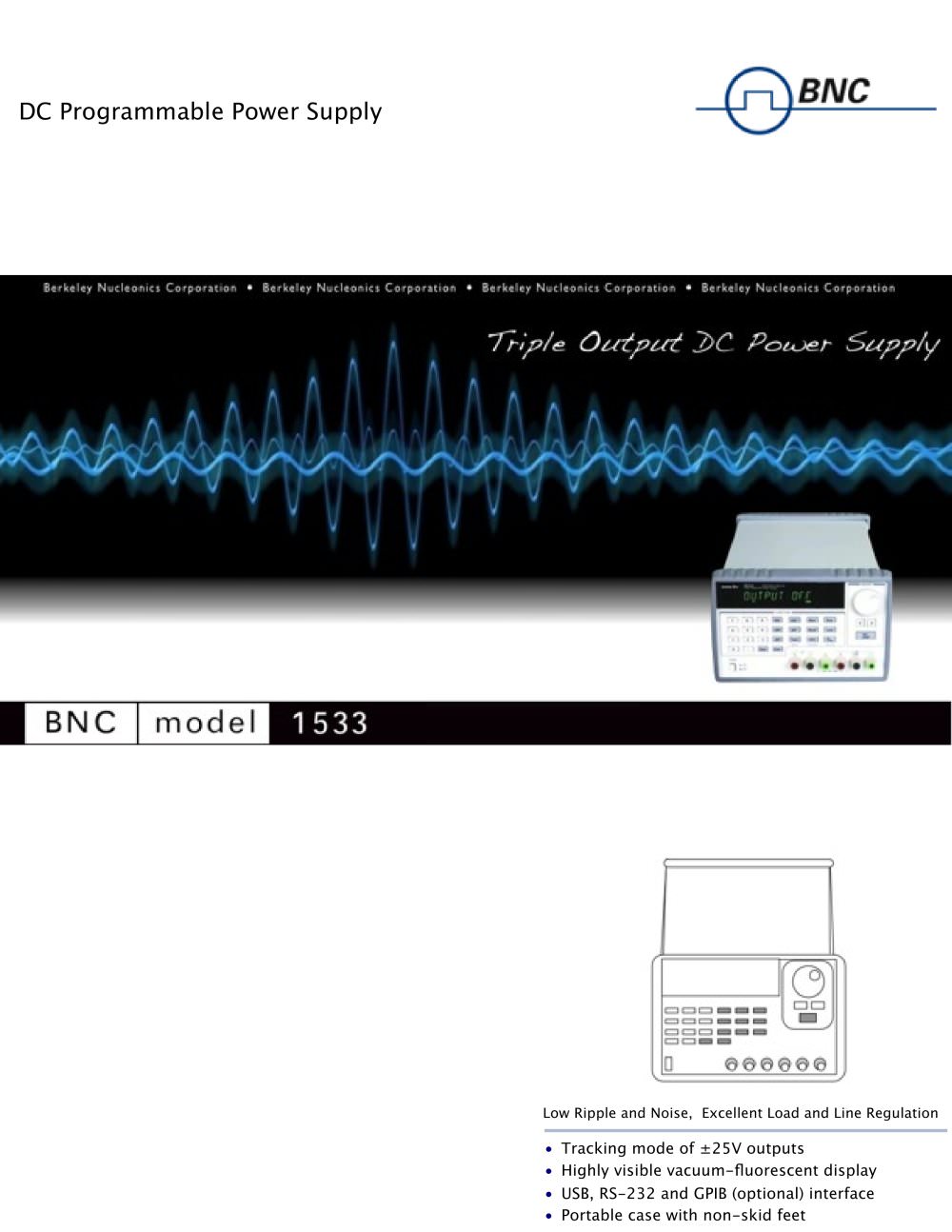

• Tracking mode of ±25V outputs • Highly visible vacuum-fluorescent display • USB, RS-232 and GPIB (optional) interface • Portable case with non-skid feet DC Programmable Power Supply Low Ripple and Noise, Excellent Load and Line Regulation

Open the catalog to page 1

Model 1533 Triple Output DC Power Supply-2

B e r k e l e y N u c l e o n i c s C o r p o r a t i o n , 2 9 5 5 K e r n e r B l v d . , S a n R a f a e l C A 9 4 9 0 1 U . S . A P h o n e : 8 0 0 . 2 3 4 . 7 8 5 8 F a x : 4 1 5 . 4 5 3 . 9 9 5 6 E - m a i l : i n f o @ b e r k e l e y n u c l e o n i c s . c o m 1 5 3 3 OUTPUT RATINGS Voltage Output 0 ~ + 6 V 0 ~ + 2 5 V 0 ~ - 2 5 V Current Output 0 ~ 5 A 0 ~ 1 A 0 ~ 1 A Ripple and Noise from 20 Hz to 20 MHz Voltage < 0 . 3 5mV rms / 2mV p - p Current <2mArms < 5 0 0 u A r m s < 5 0 0 u A r m s Common Mode Current < 1 . 5 u A r m s Load Regulation Voltage <0.01%+2mV Current < 0 . 0 1 %...

Open the catalog to page 2
