Model 1420 - Video Microscope
Model 1420 - Video Microscope
The Model 1420 Scanning Video Microscope is a research-grade, inverted fluorescence video microscope designed for various applications in academic, industrial, R&D, and research settings. It offers advanced features, portability, and value pricing, making it suitable for dedicated use in crowded labs.
Key Features
- 30 seconds acquisition buffer and 30 fps color or B&W, 640x480 pixels camera.
- Bottom-up viewing and illumination with a motionless stage for unperturbed microsystems.
- Motorized x-y traverse and focus controlled through software and front panel.
- Software-configurable image-based "soft triggers" for µTAS prototypes and miniature process automation.
- Remote capabilities and event trigger-n-store capability for high-quality data acquisition.
Laboratory Automation
The Model 1420 can be seamlessly integrated into various laboratory applications, enhancing throughput through automated sample analysis. It features a motionless sample stage for simplified physical interfacing and unperturbed microsystems. Motorized focus and X/Y traverse can be fully automated using LabView or the included software developer kit.
Camera and Imaging
- RS-170-BW: High sensitivity analog black & white camera with 640 x 480 pixels, 600 lines of resolution.
- RS-170-C: Bayer-pattern analog color camera with 640 x 480 pixels, 490 lines of resolution, S-Video output.
- Snap-in module with CCD camera, optional fluorescence filter, and threading for standard DIN microscope objective.
Illuminator Module
- LED-B: 3 blue channels and one white channel.
- LED-G: 3 green channels and one white channel.
- LED-R: 3 red channels and one white channel.
- LED-W: 4 white channels.
- LED-X: One channel each of blue, green, red, and white LEDs.
Physical Specifications
- X-traverse: 50 mm range, 10 μm resolution.
- Y-traverse: 75 mm range, 10 μm resolution.
- Focus: 8 mm range, 1 μm resolution.
- Dimensions: Width 210 mm, Length 270 mm, Height 85 mm.
- Power Voltage: 90–264 VAC, 47–63 Hz.
Contact Information
Berkeley Nucleonics Corporation, 2955 Kerner Blvd, San Rafael, CA 94901, USA. Phone: 800.234.7858, Fax: 415.453.9956, Email: [email protected]
Catalog excerpts

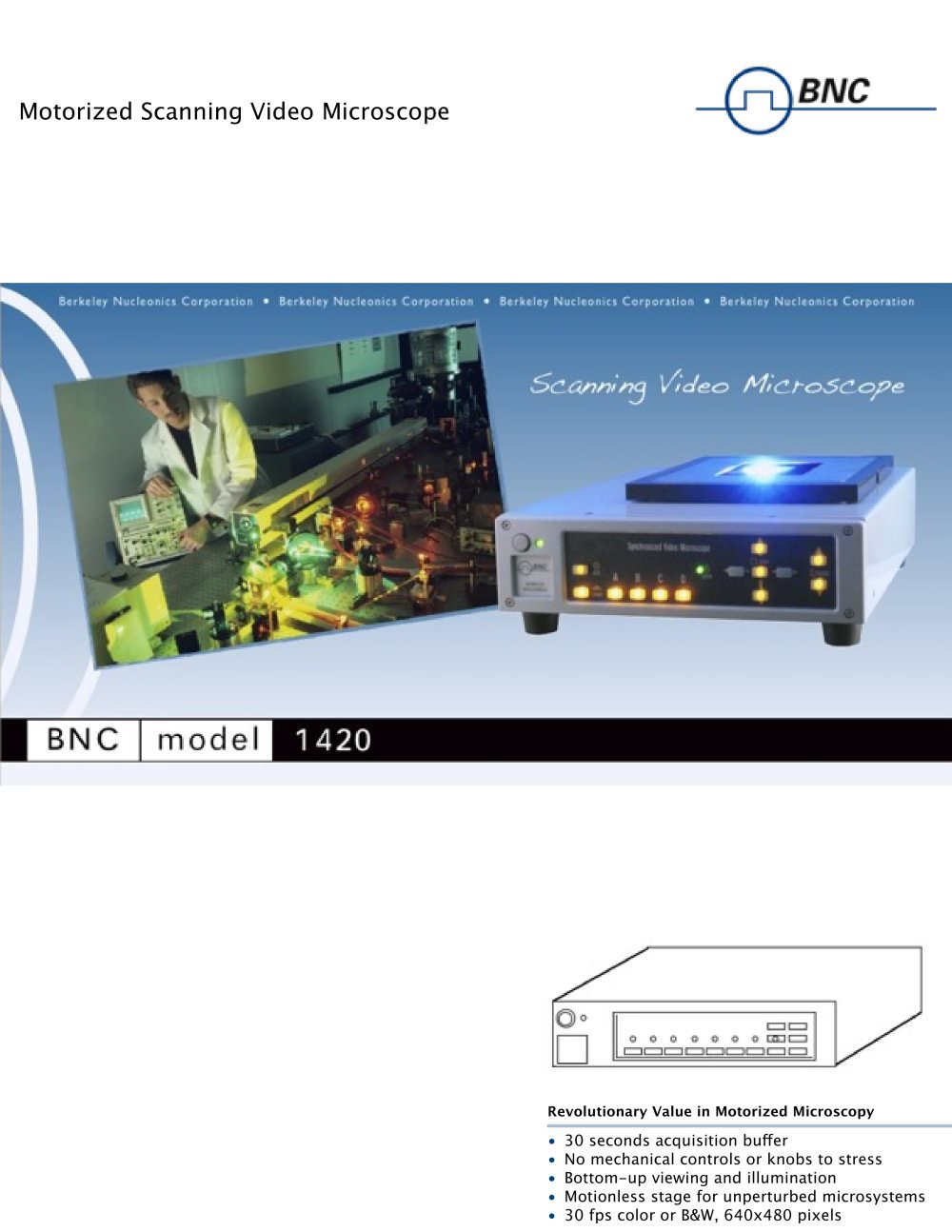

• 30 seconds acquisition buffer • No mechanical controls or knobs to stress • Bottom-up viewing and illumination • Motionless stage for unperturbed microsystems • 30 fps color or B&W, 640x480 pixels Motorized Scanning Video Microscope Revolutionary Value in Motorized Microscopy
Open the catalog to page 1
The Model 1420 Scanning Video Microscope is a r e s e a r c h - g r a d e , i n v e r t e d f l u o r e s c e n c e v i d e o microscope for appl icat ions in many f ields. Thi s general purpose microscope combines some of the most advanced features wi th por tabi l i ty and value pr icing. Wi th a synchronously pulsed i l luminator, s ens i t i v e 30- fps c ame r a , and powe r ful v ide o analysis sof tware, the Model 1420 is a workhorse for many academic, indust r ial , R&D and research act ivi t ies. Extensive f i l ter, camera, i l luminat ion and object ives opt ions let you tai lor the...
Open the catalog to page 2All BNC catalogs and technical brochures
