Model 1150 - Transient Recorder/Digitizer
2Pages

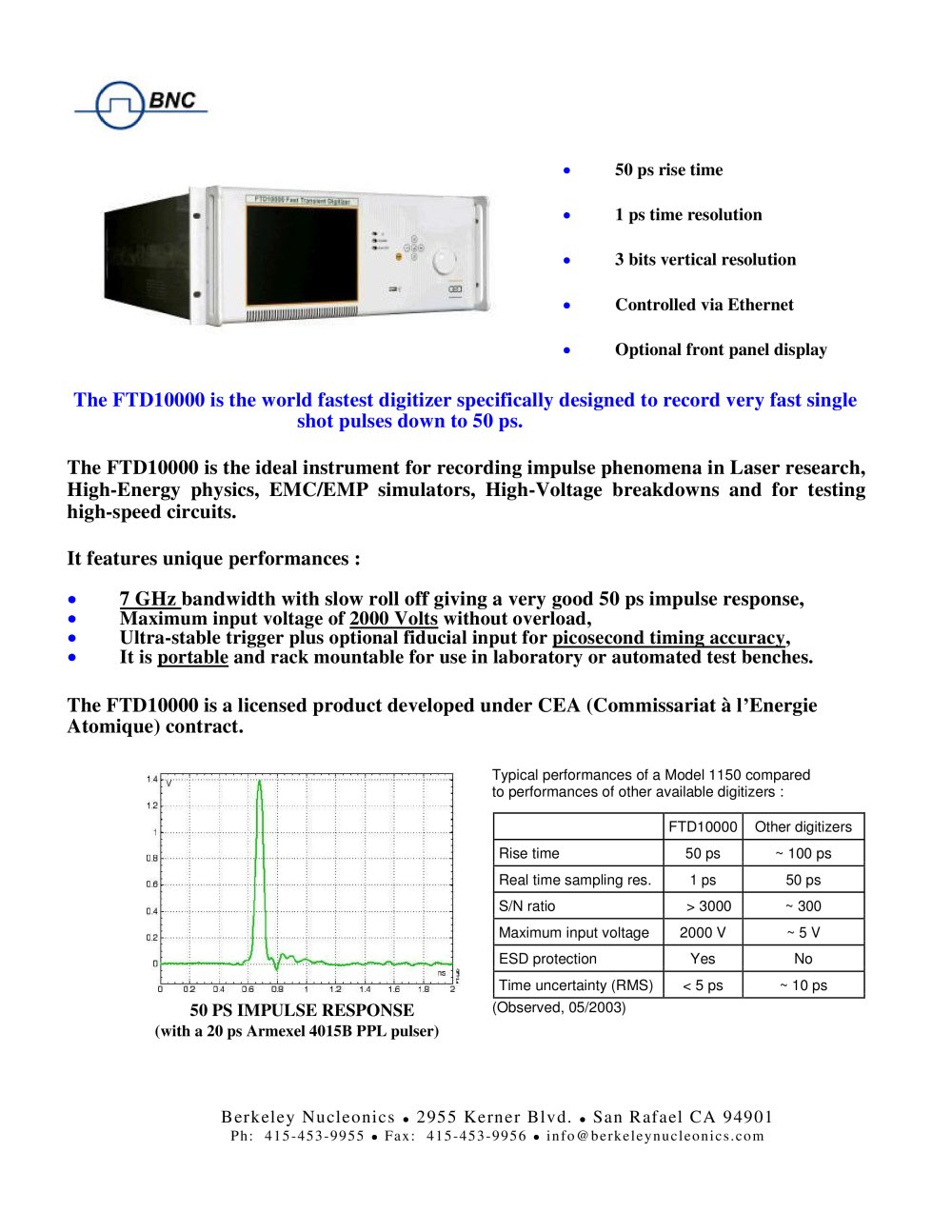

The FTD10000 is the world fastest digitizer specifically designed to record very fast single shot pulses down to 50 ps. The FTD10000 is the ideal instrument for recording impulse phenomena in Laser research, High-Energy physics, EMC/EMP simulators, High-Voltage breakdowns and for testing high-speed circuits. It features unique performances : 7 GHz bandwidth with slow roll off giving a very good 50 ps impulse response, Maximum input voltage of 2000 Volts without overload, Ultra-stable trigger plus optional fiducial input for picosecond timing accuracy, It is portable and rack mountable for use in laboratory or automated test benches. The FTD10000 is a licensed product developed under CEA (Commissariat à l Energie Atomique) contract. 50 PS IMPULSE RESPONSE (with a 20 ps Armexel 4015B PPL pulser) Typical performances of a Model 1150 compared to performances of other available digitizers : FTD10000 Other digitizers Rise time 50 ps ~ 100 ps Real time sampling res. 1 ps 50 ps S/N ratio > 3000 ~ 300 Maximum input voltage 2000 V ~ 5 V ESD protection Yes No Time uncertainty (RMS) < 5 ps ~ 10 ps (Observed, 05/2003) Berkeley Nucleonics 2955 Kerner Blvd. San Rafael CA 94901 Ph: 415-453-9955 Fax: 415-453-9956 info@berkeleynucleonics .com 50 ps rise time 1 ps time resolution 3 bits vertical resolution Controlled via Ethernet Optional front panel display

Model 1150 Main Characteristics SIGNAL INPUT Sensitivity : 5 V Bandwidth : DC to 7 GHz (4 dB) Rise Time : 50 ps Input impedance : 50 Vertical position : +50 % to 50 % Maximum input : 2000 V (1 Hs) TRIGGER Source : external Input impedance : 50 Signal polarity : positive or negative Signal duration : > 0.5 ns Level : 0.5 to 5 V Maximum input : 500 V (1 Hs) Jitter : 5 ps rms Internal delay : 40 to 540 ns DIGITIZING Analysis duration : 1 to 2000 ns Horizontal resolution : 10 bits Vertical resolution : 13 bits Non volatile memory : 1 record & settings Acquisition modes: - single shot -...
