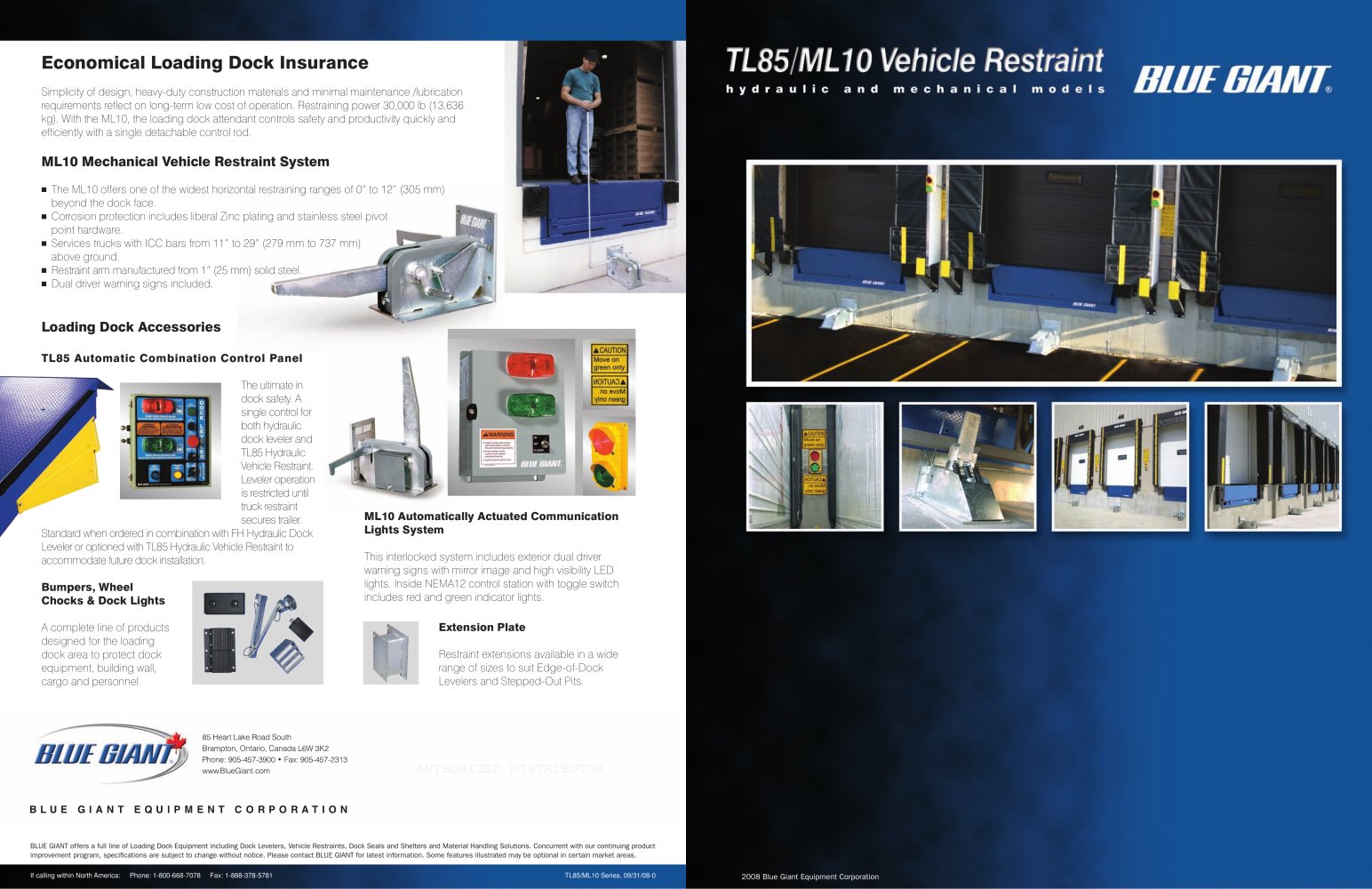

Vehicle Restraints
2Pages

Simplicity of design, heavy-duty construction materials and minimal maintenance /lubricationrequirements reflect on long-term low cost of operation. Restraining power 30,000 lb (13,636 kg). With the ML10, the loading dock attendant controls safety and productivity quickly and efficiently with a single detachable control rod. > ■ The ML10 offers one of the widest horizontal restraining ranges of 0 to 12Ԕ (305 mm) beyond the dock face. > ■ Corrosion protection includes liberal Zinc plating and stainless steel pivot point hardware. > ■ Services trucks with ICC bars from 11 to 29Ԕ (279 mm to 737 mm) above ground. > ■ Restraint arm manufactured from 1 (25 mm) solid steel. Bumpers, WheelChocks & Dock Lights > Ԣ֠ Dual driver warning signs included. > A complete line of productsdesigned for the loading dock area to protect dock equipment, building wall, cargo and personnel. TL85 Automatic Combination Control Panel The ultimate indock safety. A single control for both hydraulic dock leveler and TL85 Hydraulic Vehicle Restraint. Leveler operation is restricted until truck restraint secures trailer.Standard when ordered in combination with FH Hydraulic Dock Leveler or optioned with TL85 Hydraulic Vehicle Restraint to accommodate future dock installation. ML10 Automatically Actuated Communication Lights System This interlocked system includes exterior dual driverwarning signs with mirror image and high visibility LED lights. Inside NEMA12 control station with toggle switch includes red and green indicator lights. Extension Plate Restraint extensions available in a widerange of sizes to suit Edge-of-Dock Levelers and Stepped-Out Pits. > BLUE GIANT offers a full line of Loading Dock Equipment including Dock Levelers, Vehicle Restraints, Dock Seals and Shelters and Material Handling Solutions. Concurrent with our continuing productimprovement program, specifications are subject to change without notice. Please contact BLUE GIANT for latest information. Some features illustrated may be optional in certain market areas. TL85/ML10 Series, 09/31/08-0If calling within North America: Phone: 1-800-668-7078Fax: 1-888-378-5781 2008 Blue Giant Equipment Corporation size="-1">

Electro-hydraulic operation. Simplicity of design, heavy-duty construction materials and no regular adjustments or lubricationrequirements put Blue Giants TL85 Hydraulic Vehicle Restraint in front of more North American loading docks. Vehicle creep. Unscheduled truck departures. Careless parking. It happens atthe best of loading docks. In a busy shipping area, there can be up to 100 opportunities a day, per single loading dock, for the most serious mishap to occur. Blue Giant reduces the risks of costly equipment damage and physical injury while increasing productivity with a cost-effective...
