Specifications:

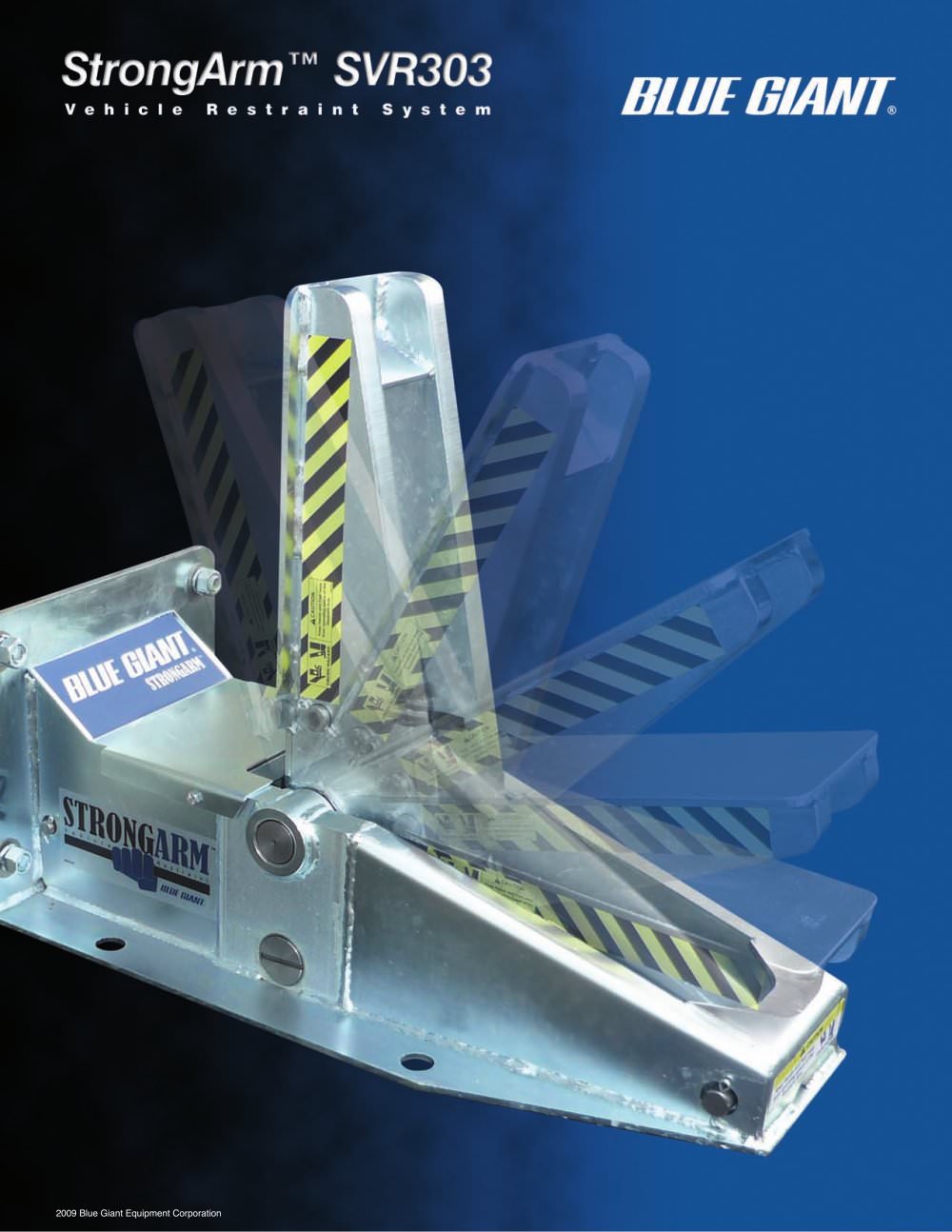

The StrongArm™ SVR303 offers a restraining range from 8” to 26” above ground and up to 12” from the dock face. It features a 35,000lb restraining strength and a 100,000lb mounting force, with a low profile of 8” height to accommodate various trailer configurations. The system is compatible with air-ride suspension trailers and below dock level operations.

Control and Diagnostics:
The Blue Genius™ Touch Controls provide proximity sensing, onboard diagnostics, and a user-friendly LCD screen for real-time instructions. The system includes a supervisory keypad lockout and override function, with microprocessor-based controls for flexibility and easy upgrades.

Communication and Safety Features:
LED traffic lights indicate safe and unsafe conditions, with an audible alarm and real-time LCD display for troubleshooting. The Intelligent Positioning System ensures accurate sensing and positioning without mechanical switches, enhancing reliability.

Design and Maintenance:
The non-impact design prevents damage during trailer docking, and the system requires minimal maintenance with self-lubricating bearings and bushings. It features a non-lock-up design with double-acting cylinders for proper engagement and disengagement.

Installation and Compatibility:
The SVR303 can be wall or ground-mounted, offering flexibility for various applications. It is easy to install with plug-and-play control panels and network connections for communication and power wiring. The system is compatible with Blue Giant® and other dock levelers.

Additional Features:
The system includes theft deterrent options, a high-performance power pack, and zinc plating for corrosion resistance. It is UL/CSA/CE approved and comes with a 5-year structural and 2-year electric/hydraulic warranty.
