FPT-55 Manual Pallet Truck

FPT-55 Manual Pallet Truck
1Pages

Catalog excerpts

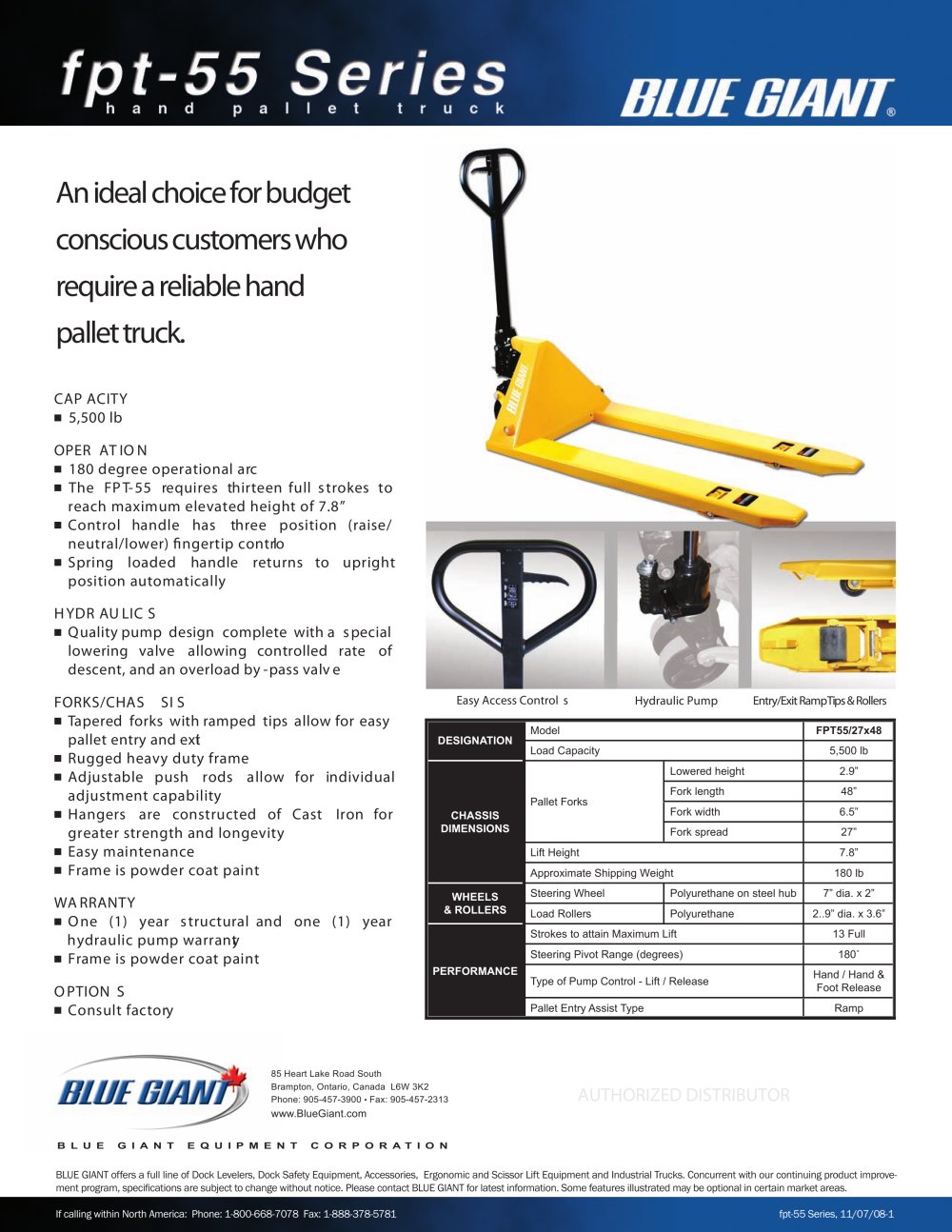

85 Heart Lake Road South Brampton, Ontario, Canada L6W 3K2 Phone: 905-457-3900 • Fax: 905-457-2313 www.BlueGiant.com B L U E G I A N T E Q U I P M E N T C O R P O R A T I O N AUTHORIZED DISTRIBUTOR An ideal choice for budget conscious customers who require a reliable hand pallet truck. DESIGNATION Model FPT55/27x48 Load Capacity 5,500 lb CHASSIS DIMENSIONS Pallet Forks Lowered height 2.9” Fork length 48” Fork width 6.5” Fork spread 27” Lift Height 7.8” Approximate Shipping Weight 180 lb WHEELS & ROLLERS Steering Wheel Polyurethane on steel hub 7” dia. x 2” Load Rollers Polyurethane 2..9” dia. x 3.6” PERFORMANCE Strokes to attain Maximum Lift 13 Full Steering Pivot Range (degrees) 180¢ª Type of Pump Control - Lift / Release Hand / Hand & Foot Release Pallet Entry Assist Type Ramp Easy Access Control s Hydraulic Pump Entry/Exit Ramp Tips & Rollers CAP ACITY 5,500 lb OPER AT IO N 180 degree operational arc The FPT-55 requires thirteen full s trokes to reach maximum elevated height of 7.8” Control handle has three position (raise/ neutral/lower) ngertip contro l Spring loaded handle returns to upright position automatically HYDR AULIC S Quality pump design complete with a special lowering valve allowing controlled rate of descent, and an overload by -pass valv e FORKS/CHAS SI S Tapered forks with ramped tips allow for easy pallet entry and exit Rugged heavy duty frame Adjustable push rods allow for individual adjustment capability Hangers are constructed of Cast Iron for greater strength and longevity Easy maintenance Frame is powder coat paint WARRANTY One (1) year s tructural and one (1) year hydraulic pump warranty Frame is powder coat paint OPTION S Consult factory BLUE GIANT offers a full line of Dock Levelers, Dock Safety Equipment, Accessories, Ergonomic and Scissor Lift Equipment and Industrial Trucks. Concurrent with our continuing product improvement program, specifi cations are subject to change without notice. Please contact BLUE GIANT for latest information. Some features illustrated may be optional in certain market areas. If calling within North America: Phone: 1-800-668-7078 Fax: 1-888-378-5781 fpt-55 Series, 11/07/08-1

Open the catalog to page 1
