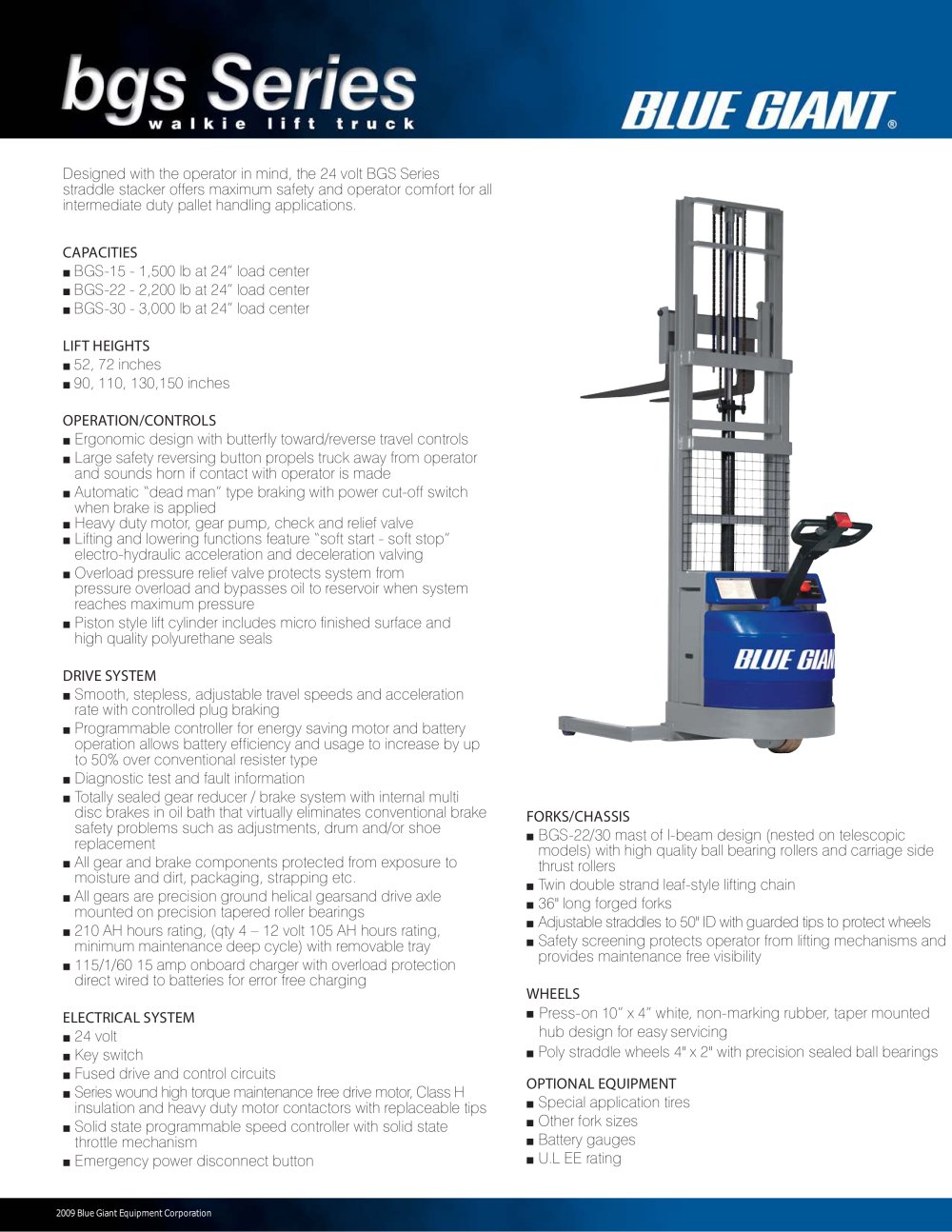

BGS Aisle Stacker
2Pages

CAPACITIES BGS-15 - 1,500 lb at 24” load center BGS-22 - 2,200 lb at 24” load center BGS-30 - 3,000 lb at 24” load center LIFT HEIGHTS 52, 72 inches 90, 110, 130,150 inches OPERATION/CONTROLS Ergonomic design with butterfly toward/reverse travel controls Large safety reversing button propels truck away from operator and sounds horn if contact with operator is made Automatic “dead man” type braking with power cut-off switch when brake is applied Heavy duty motor, gear pump, check and relief valve Lifting and lowering functions feature “soft start - soft stop” electro-hydraulic acceleration and deceleration valving Overload pressure relief valve protects system from pressure overload and bypasses oil to reservoir when system reaches maximum pressure Piston style lift cylinder includes micro finished surface and high quality polyurethane seals DRIVE SYSTEM Smooth, stepless, adjustable travel speeds and acceleration rate with controlled plug braking Programmable controller for energy saving motor and battery operation allows battery efficiency and usage to increase by up to 50% over conventional resister type Diagnostic test and fault information Totally sealed gear reducer / brake system with internal multi disc brakes in oil bath that virtually eliminates conventional brake safety problems such as adjustments, drum and/or shoe replacement All gear and brake components protected from exposure to moisture and dirt, packaging, strapping etc. All gears are precision ground helical gearsand drive axle mounted on precision tapered roller bearings 210 AH hours rating, (qty 4 – 12 volt 105 AH hours rating, minimum maintenance deep cycle) with removable tray 115/1/60 15 amp onboard charger with overload protection direct wired to batteries for error free charging ELECTRICAL SYSTEM 24 volt Key switch Fused drive and control circuits Series wound high torque maintenance free drive motor, Class H insulation and heavy duty motor contactors with replaceable tips Solid state programmable speed controller with solid state throttle mechanism Emergency power disconnect button FORKS/CHASSIS BGS-22/30 mast of I-beam design (nested on telescopic models) with high quality ball bearing rollers and carriage side thrust rollers Twin double strand leaf-style lifting chain 36" long forged forks Adjustable straddles to 50" ID with guarded tips to protect wheels Safety screening protects operator from lifting mechanisms and provides maintenance free visibility WHEELS Press-on 10” x 4” white, non-marking rubber, taper mounted hub design for easy servicing Poly straddle wheels 4" x 2" with precision sealed ball bearings OPTIONAL EQUIPMENT Special application tires Other fork sizes Battery gauges U.L EE rating 2009 Blue Giant Equipment Corporation Designed with the operator in mind, the 24 volt BGS Series straddle stacker offers maximum safety and operator comfort for all intermediate duty pallet handling applications.

S C Q E H4 H3 H1 H2 Straddle height 4.44” (133 mm) 35.5” (902 mm) Y L 27.75” (705 mm) BLUE GIANT offers a full line of Loading Dock Equipment including Dock Levelers, Vehicle Restraints, Dock Seals and Shelters an d Material Handling Solutions. Concurrent with our continuing product improvement program, specifications are subject to change without notice. Please contact BLUE GIANT for latest information. Som e features illustrated may be optional in certain market areas. If calling within North America: Phone: 1-800-668-7078 Fax: 1-888-378-5781 BGS Series, 04/29/09-1 AUTHORIZED DISTRIBUTOR...
