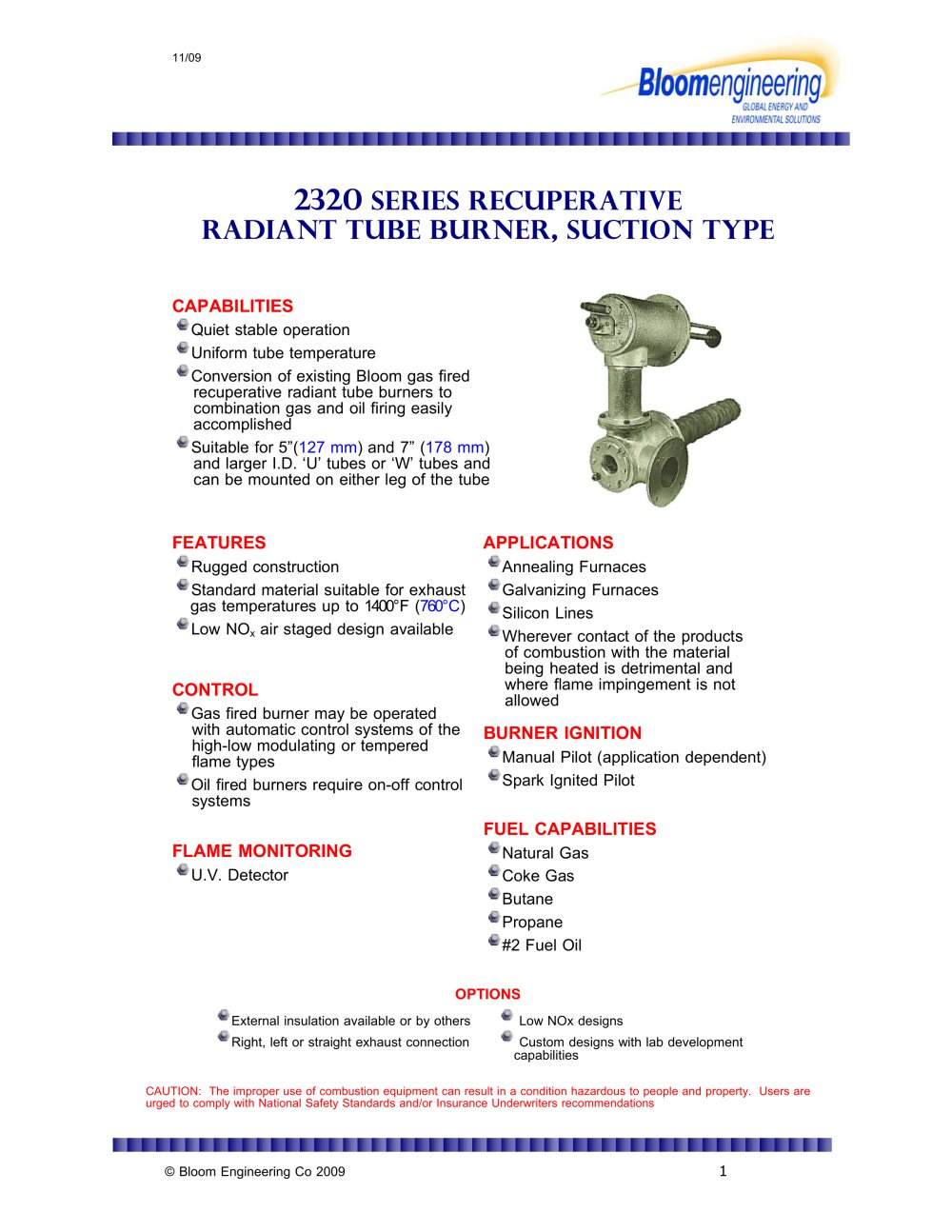

2320 SERIES RECUPERATIVE RADIANT TUBE BURNER, SUCTION TYPE CAPABILITIES Quiet stable operation Uniform tube temperature Conversion of existing Bloom gas fired recuperative radiant tube burners to combination gas and oil firing easily accomplished Suitable for 5”(127 mm) and 7” (178 mm) and larger I.D. ‘U’ tubes or ‘W’ tubes and can be mounted on either leg of the tube Rugged construction Standard material suitable for exhaust gas temperatures up to 1400°F (760°C) Low NOx air staged design available CONTROL Gas fired burner may be operated with automatic control systems of the high-low modulating or tempered flame types Oil fired burners require on-off control systems Annealing Furnaces Galvanizing Furnaces Silicon Lines Wherever contact of the products of combustion with the material being heated is detrimental and where flame impingement is not allowed BURNER IGNITION Manual Pilot (application dependent) Spark Ignited Pilot FUEL CAPABILITIES FLAME MONITORING Natural Gas Coke Gas Butane Propane #2 Fuel Oil OPTIONS External insulation available or by others Right, left or straight exhaust connection Low NOx designs Custom designs with lab development capabilities CAUTION: The improper use of combustion equipment can result in a condition hazardous to people and property. Users are urged to comply with National Safety Standards and/or Insurance Underwriters recommendations

2320 SERIES RECUPERATIVE RADIANT TUBE BURNER, SUCTION TYPE The 2320 Series Recuperative Radiant Tube Burner is suitable for operation with light distillate fuel oil or gaseous fuels having 500 BTU per cubic-foot or higher heating value. Quiet stable operation and uniform tube temperatures are obtained by utilizing the patented Bloom Retention Nozzle. This nozzle distributes the air uniformly around the gas stream while creating a partial vacuum between the two streams and promoting stability. A variety of ignition systems are available. Each order or inquiry must specify the following: 1....

EfflMMlENHl SOLUTIONS RADIANT TUBE BURNER, SUCTION TYPE BURNER kflXHTIkG FIANCE DATA: EQUALLY SPACED A STRADDLE C'5. COVJ/JT TEE MOUNTlNC FUNGE DATA; EOUMIT SPACED 4: StfwDDLE. fS. INSTALL LWtE PILOT HAND TIGHT ONLY. U5WG PILOT ftflr»Tt] [aomm] fiaimni] , [laimn] EOUALLT SPACEO A STRADDLE tS. &HAWT OUTLET RANK OAT* EQUALLY SPACED k STRUUf tS. MANUFACTURED UNDER U.5. PATENT NO. 3.07&.910

2320 SERIES RECUPERATIVE RADIANT TUBE BURNER, SUCTION TYPE PARTS LIST Description Burner Body End Plate Gas Nozzle Assembly Observation Port Wire Seal Hot Air Tube Cold Air Tube Assembly Recuperator Assembly Exhaust Gas Tee Orifice Plate Gasket Observation Port Pilot Assembly Part number must be preceded by catalog number. Example: To order Part 03 – Gas Nozzle Assembly for 2320-060 burner Specify – 2320-060 – 03 (catalog number) (part number) *Specify right or left hand exhaust - gas tee (exhaust) – right hand shown NOTE: GENERAL DIMENSION INFORMATION. SEE BLOOM REPRESENTATIVE FOR...
