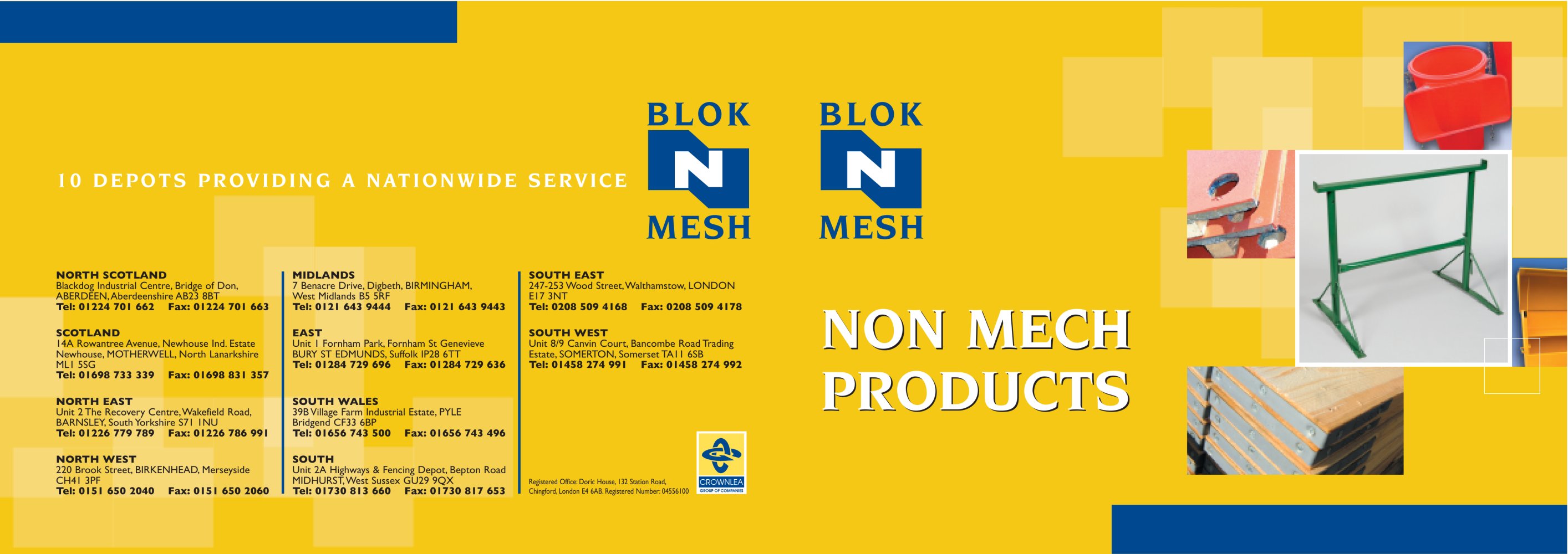

BLOK MESH BLOK MESH NON MECH PRODUCTS 10 DEPOTS PROVIDING A NATIONWIDE SERVICE NORTH SCOTLAND Blackdog Industrial Centre, Bridge of Don, ABERDEEN,Aberdeenshire AB23 8BT Tel: 01224 701 662 Fax: 01224 701 663 SCOTLAND 14A Rowantree Avenue, Newhouse Ind. Estate Newhouse, MOTHERWELL, North Lanarkshire ML1 5SG Tel: 01698 733 339 Fax: 01698 831 357 NORTH EAST Unit 2 The Recovery Centre,Wakefield Road, BARNSLEY, South Yorkshire S71 1NU Tel: 01226 779 789 Fax: 01226 786 991 NORTH WEST 220 Brook Street, BIRKENHEAD, Merseyside CH41 3PF Tel: 0151 650 2040 Fax: 0151 650 2060 MIDLANDS 7 Benacre Drive, Digbeth, BIRMINGHAM, West Midlands B5 5RF Tel: 0121 643 9444 Fax: 0121 643 9443 EAST Unit 1 Fornham Park, Fornham St Genevieve BURY ST EDMUNDS, Suffolk IP28 6TT Tel: 01284 729 696 Fax: 01284 729 636 SOUTH WALES 39B Village Farm Industrial Estate, PYLE Bridgend CF33 6BP Tel: 01656 743 500 Fax: 01656 743 496 SOUTH Unit 2A Highways & Fencing Depot, Bepton Road MIDHURST,West Sussex GU29 9QX Tel: 01730 813 660 Fax: 01730 817 653 SOUTH EAST 247-253 Wood Street,Walthamstow, LONDON E17 3NT Tel: 0208 509 4168 Fax: 0208 509 4178 SOUTH WEST Unit 8/9 Canvin Court, Bancombe Road Trading Estate, SOMERTON, Somerset TA11 6SB Tel: 01458 274 991 Fax: 01458 274 992 Registered Office: Doric House, 132 Station Road, Chingford, London E4 6AB. Registered Number: 04556100

BLOK MESH www.bloknmesh.com T E L : 0 8 7 0 9 5 0 5 7 8 8 2 3 T E L : 0 8 7 0 9 5 0 5 7 8 8 0870 950 5788 www.bloknmesh.com our service Our Service Page 2 Steel Trestles Page 4 Trestle Handrail System Page 5 Scaffold Boards Page 6 Acrow Props Page 7 Trench Struts Page 8 Jim Jaks Page 9 Lightweight Staging Page 10 Rubbish Chutes Page 11 Ladder Guards Page 12 Road Plates Page 13 Gas Cages & Tool Vaults Page 14 Fencing Page 15 Depots Page 16 For more information on our range of products contact your local depot. EXTENSIVE RANGE OF NON MECH PRODUCTS 10 DEPOTS PROVIDING A NATIONWIDE SERVICE NEXT /...

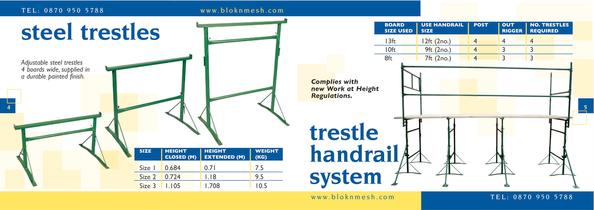

www.bloknmesh.com T E L : 0 8 7 0 9 5 0 5 7 8 8 5 SIZE HEIGHT HEIGHT WEIGHT CLOSED (M) EXTENDED (M) (KG) Size 1 0.684 0.71 7.5 Size 2 0.724 1.18 9.5 Size 3 1.105 1.708 10.5 steel trestles T E L : 0 8 7 0 9 5 0 5 7 8 8 www.bloknmesh.com Complies with new Work at Height Regulations. BOARD USE HANDRAIL SIZE USED SIZE 13ft 12ft (2no.) 10ft 9ft (2no.) 8ft 7ft (2no.) trestle handrail system POST OUT NO. TRESTLES RIGGER REQUIRED 4 4 4 4 3 3 4 3 3 4 Adjustable steel trestles 4 boards wide, supplied in a durable painted finish.

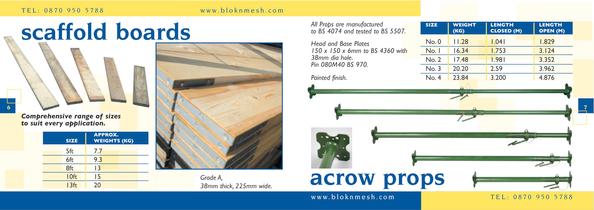

www.bloknmesh.com T E L : 0 8 7 0 9 5 0 5 7 8 8 All Props are manufactured to BS 4074 and tested to BS 5507. Head and Base Plates 150 x 150 x 6mm to BS 4360 with 38mm dia hole. Pin 080M40 BS 970. Painted finish. 6 7 SIZE WEIGHT LENGTH LENGTH (KG) CLOSED (M) OPEN (M) No. 0 11.28 1.041 1.829 No. 1 16.34 1.753 3.124 No. 2 17.48 1.981 3.352 No. 3 20.20 2.59 3.962 No. 4 23.84 3.200 4.876 T E L : 0 8 7 0 9 5 0 5 7 8 8 www.bloknmesh.com acrow props scaffold boards Grade A, 38mm thick, 225mm wide. Comprehensive range of sizes to suit every application. APPROX. SIZE WEIGHTS (KG) 5ft 7.7 6ft 9.3 8ft 13...

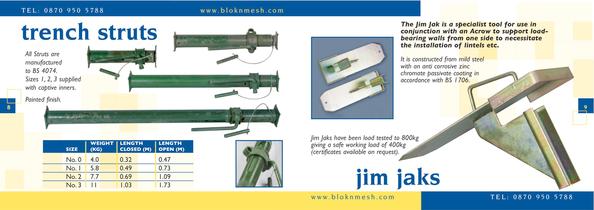

trench struts All Struts are manufactured to BS 4074. Sizes 1, 2, 3 supplied with captive inners. Painted finish. The Jim Jak is a specialist tool for use in conjunction with an Acrow to support loadbearing walls from one side to necessitate the installation of lintels etc. It is constructed from mild steel with an anti corrosive zinc chromate passivate coating in accordance with BS 1706. 8 WEIGHT LENGTH LENGTH SIZE (KG) CLOSED (M) OPEN (M) No. 0 4.0 0.32 0.47 No. 1 5.8 0.49 0.73 No. 2 7.7 0.69 1.09 No. 3 11 1.03 1.73 jim jaks T E L : 0 8 7 0 9 5 0 5 7 8 8 www.bloknmesh.com Jim Jaks have been...

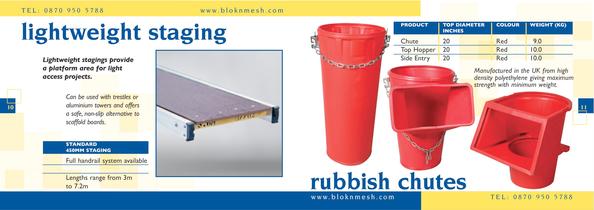

www.bloknmesh.com T E L : 0 8 7 0 9 5 0 5 7 8 8 lightweight staging Lightweight stagings provide a platform area for light access projects. Can be used with trestles or aluminium towers and offers a safe, non-slip alternative to scaffold boards. 10 STANDARD 450MM STAGING Full handrail system available Lengths range from 3m to 7.2m PRODUCT TOP DIAMETER COLOUR WEIGHT (KG) INCHES Chute 20 Red 9.0 Top Hopper 20 Red 10.0 Side Entry 20 Red 10.0 rubbish chutes T E L : 0 8 7 0 9 5 0 5 7 8 8 www.bloknmesh.com 11 Manufactured in the UK from high density polyethylene giving maximum strength with minimum...

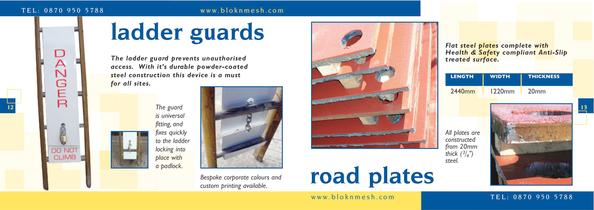

www.bloknmesh.com T E L : 0 8 7 0 9 5 0 5 7 8 8 ladder guards The ladder guard prevents unauthorised access. With it’s durable powder-coated steel construction this device is a must for all sites. The guard is universal fitting, and fixes quickly to the ladder locking into place with a padlock. Bespoke corporate colours and custom printing available. Flat steel plates complete with Health & Safety compliant Anti-Slip t reated surface. All plates are constructed from 20mm thick (3/4") steel. 12 road plates T E L : 0 8 7 0 9 5 0 5 7 8 8 www.bloknmesh.com LENGTH WIDTH THICKNESS 2440mm 1220mm 20mm...

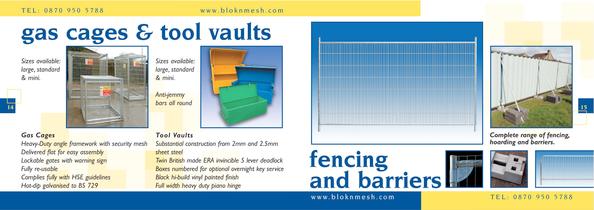

www.bloknmesh.com T E L : 0 8 7 0 9 5 0 5 7 8 8 gas cages & tool vaults Gas Cages Heavy-Duty angle framework with security mesh Delivered flat for easy assembly Lockable gates with warning sign Fully re-usable Complies fully with HSE guidelines Hot-dip galvanised to BS 729 Tool Vaults Substantial construction from 2mm and 2.5mm sheet steel Twin British made ERA invincible 5 lever deadlock Boxes numbered for optional overnight key service Black hi-build vinyl painted finish Full width heavy duty piano hinge 14 T E L : 0 8 7 0 9 5 0 5 7 8 8 www.bloknmesh.com Sizes available: large, standard & mini....
