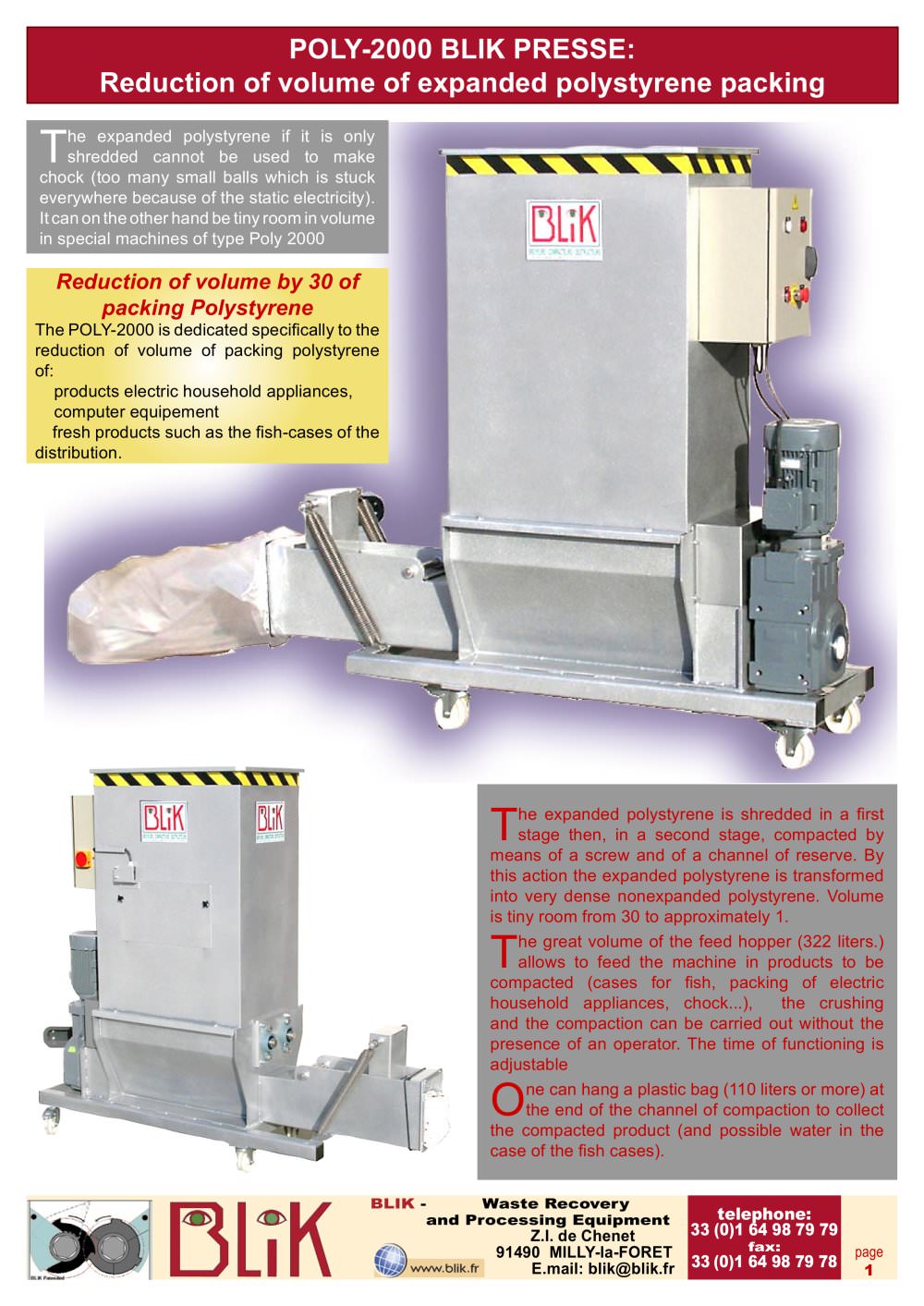

telephone: 33 (0)1 64 98 79 79 fax: 33 (0)1 64 98 79 78 BLIK - Waste Recovery and Processing Equipment Z.I. de Chenet 91490 MILLY-la-FORET E.mail: [email protected] page 1 POLY-2000 BLIK PRESSE: Reduction of volume of expanded polystyrene packing Reduction of volume by 30 of packing Polystyrene The POLY-2000 is dedicated specifically to the reduction of volume of packing polystyrene of: products electric household appliances, computer equipement fresh products such as the fish-cases of the distribution. The expanded polystyrene is shredded in a first stage then, in a second stage, compacted by means of a screw and of a channel of reserve. By this action the expanded polystyrene is transformed into very dense nonexpanded polystyrene. Volume is tiny room from 30 to approximately 1. The great volume of the feed hopper (322 liters.) allows to feed the machine in products to be compacted (cases for fish, packing of electric household appliances, chock...), the crushing and the compaction can be carried out without the presence of an operator. The time of functioning is adjustable One can hang a plastic bag (110 liters or more) at the end of the channel of compaction to collect the compacted product (and possible water in the case of the fish cases). The expanded polystyrene if it is only shredded cannot be used to make chock (too many small balls which is stuck everywhere because of the static electricity). It can on the other hand be tiny room in volume in special machines of type Poly 2000

Machines for waste preparation Z.I. de Chenet 91490 MILLY-LA-FORET (France) BLiK phone: 01 64 98 79 79.- fax: 01 64 98 79 78.- E.mail: [email protected] Site Internet: www.blik.fr page 2 Technical specifications Section of opening -mm 700 x 460 Height of work 1610 mm Maximum capacity 160 litres Time output 30 kg - 4 m3/h Electric power 3 kW Power supply Tri-400V-50hz+neutral Dimensions compacted block 180 x 180 mm weight approximately 300kg wheels included BLIK POLY-2000 PRESS (continuation) : Reduction of volume of expanded polystyrene packing H.T. 1610 1000
