Semi-hermetic Recip. Compressors KP-100-6-rus
Semi-hermetic Recip. Compressors KP-100-6-rus
The document provides an overview of BITZER's semi-hermetic reciprocating compressors, specifically the C1 to C8 series, designed for use with HFC and HCFC refrigerants in modern refrigeration and air conditioning systems.
The compressors are compatible with refrigerants like R134a, R404A, R507A, R407C, and R22, suitable for air conditioning and temperature applications. Key features include energy efficiency, quiet operation, robust construction, electronic compressor protection, efficient capacity control, and space-saving design.
- C1 to C4 Octagons®: Features include wear-resistant drive gear, minimal space requirements, and centrifugal lubrication, with a terminal box IP65 and optional crankcase heater.
- B5 & B6 Series and C8 Octagon®: Includes surface-hardened crankshafts, low friction bearings, and a patented oil return system, offering efficient capacity control and optional crankcase heater.
Application limits for various refrigerants and performance data for R134a, R404A/R507A, R407C, and R22 are provided, based on the European standard EN 12900 for 50 Hz operation.
Technical specifications and dimensional drawings assist in the installation and operation of the compressors.
Features include integrated pulsation mufflers, solid valve plate design, optional discharge gas temperature sensors, and support for tandem operation for increased capacity.
Specialized Octagon® compressors are developed for sub-critical CO2 applications, addressing specific system requirements.
Performance data for models 4J-13.2(Y) to 6F-50.2(Y) using R134a is outlined, based on ISO-DIS 9309 (DIN 8928) standards at 50 Hz with a suction gas temperature of 25°C, with future alignment to EN 12900 standards planned.
Performance data for OCTAGON® series compressors with oil pumps is accessible via BITZER Software. The certification process by ASERCOM ensures high standards through expert data checks and independent testing.
Performance data aligns with European Standard EN 12900 for 50 Hz operation. For zeotropic blends like R407C, changes in basic parameters result in lower cooling capacity and efficiency values. The reference suction gas temperature is updated from 25°C to 20°C.
For R134a and R407C with condensing temperatures above 55°C, BSE55 oil is recommended instead of BSE32. Application limits and performance data for specific conditions are available upon request.
Performance data tables for various compressor models detail cooling capacity and power consumption at different evaporating and condensing temperatures. Graphs illustrate application limits based on a 20°C suction gas temperature, highlighting the need for additional cooling under certain conditions.
Detailed specifications for compressor models KP-100-6 RUS, 6F-40.2, 6F-50.2, 8GC-60.2, and 8FC-70.2 include data on cooling capacity, power consumption, and operating conditions, with attention to additional cooling and suction gas temperature limitations.
Guidelines for installation and operation emphasize additional cooling and the use of the VARICOOL system, advising against continuous operation under certain conditions and providing instructions for adjusting fan positions and using additional fans.
Electrical data and motor connection requirements include voltage ranges and tolerance levels, with recommendations for contactors, cables, and fuses, and guidelines for motor contactor selection based on operating current.
Tables and graphs present performance data for compressors at various frequencies (50 Hz and 60 Hz) and conditions, including cooling capacity, power consumption, and maximum operating current, with conversion factors for different voltage levels.
- Maximum suction superheat is limited to 20 K.
- Continuous operation under specified conditions is not recommended.
- Specific configurations for part-winding start motors are detailed.
- Crankcase heaters are mandatory for outdoor installations and long shut-off periods.
Ensure proper installation and configuration of compressors according to specified guidelines. Use additional cooling systems and adhere to recommended electrical configurations to optimize performance and prevent operational issues.
Catalog excerpts

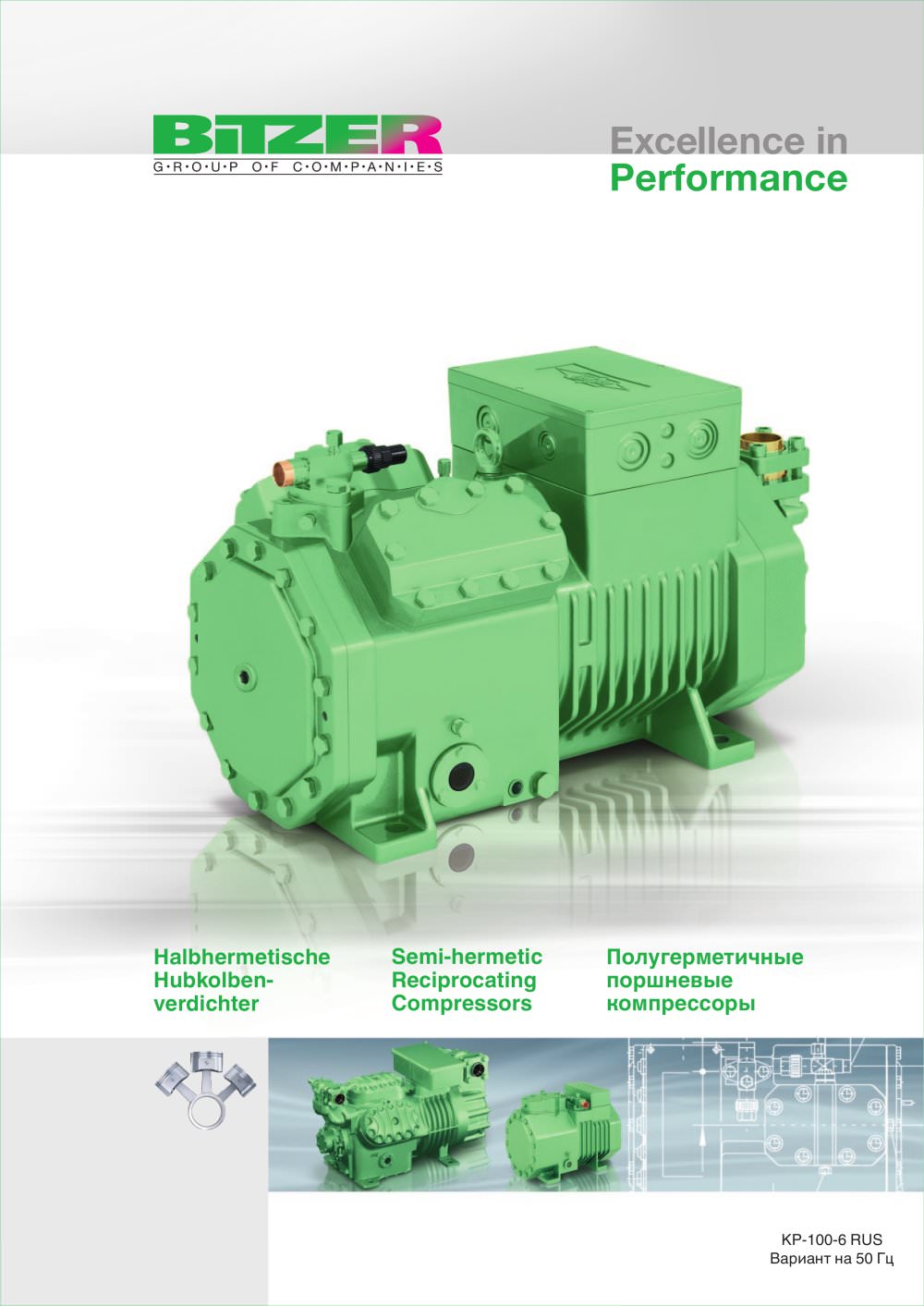

Excellence in Performance Halbhermetische Hubkolbenverdichter Semi-hermetic Reciprocating Compressors Полугерметичные поршневые компрессоры KP-100-6 RUS Вариант на 50 Гц
Open the catalog to page 1
Halbhermetische Hubkolbenverdichter Inhalt Semi-hermetic Reciprocating Compressors Seite Contents Ïîëóãåpìåòè÷íûå ïîpøíåâûå êîìpåññîpû Page Ñîäåpæàíèå Ñòp. Programmübersicht 2 Program survey 2 Ïîëíûé ìîäåëüíûé pÿä 2 Verdichter für moderne Kälte- und Klimaanlagen 3 Compressors for modern refrigeration and air conditioning plants 3 Êîìïpåññîpû äëÿ ñîâpåìåííûõ õîëîäèëüíûõ óñòàíîâîê è ñèñòåì êîíäèöèîíèpîâàíèÿ âîçäóõà 3 Die C1 bis C4 Octagons® 4 The C1 to C4 Octagons® 4 Êîìïpåññîpû ñåpèè OCTAGON® îò Ñ1 äî Ñ4 4 5 Die B5- & B6-Serie und C8 Octagon® 5 The B5 & B6 series and C8 Octagon® 5 Êîìïpåññîpû...
Open the catalog to page 2
Eine eng gestufte Verdichterpalette für moderne Kälte- und Klimaanlagen A Closely Arranged Compressor Range for Modern Refrigeration and Air Conditioning Plants Îïòèìàëüíî ñîñòàâëåííûé ìîäåëüíûé pÿä êîìïpåññîpîâ äëÿ ñîâpåìåííûõ õîëîäèëüíûõ óñòàíîâîê è ñèñòåì êîíäèöèîíèpîâàíèÿ âîçäóõà Mit den Baureihen C1 bis C8 bietet BITZER Verdichter für HFKW- und HFCKW-Kältemittel, die die anspruchsvollen Anforderungen moderner Kälteanlagen erfüllen: With the series C1 to C8 BITZER offers compressors for HFC and HCFC refrigerants, that meet the demanding requirements of modern refrigeration plants: BITZER...
Open the catalog to page 3
Die C1 bis C4 Octagons® The C1 to C4 Octagons® Êîìïpåññîpû OCTAGON® ñåpèè îò Ñ1 äî Ñ4 ❏ verschleißfestes Triebwerk ● Lager mit PTFE-Beschichtung – besonders reibungsarm und mit besten Notlauf-Eigenschaften ● Aluminium-Kolben mit optimierter Geometrie ● ungeteilte Pleuel mit großzügig dimensionierten Lagerflächen ❏ Wear resistant drive gear ● PTFE coated bearings for especially low friction and with best emergency operation characteristics ● aluminium pistons of optimised geometry ● connecting rods with closed big end and generously dimensioned bearing surfaces ❏ minimaler Platzbedarf ● besonders...
Open the catalog to page 4
Die B5- & B6-Serie und C8 Octagon® The B5 & B6 Series and C8 Octagon® Cåpèè Â5, Â6 è OCTAGON® Ñ8 ❏ Verschleißfestes Triebwerk ● Oberflächen gehärtete Kurbelwellen ● reibungsarme Lager und AluKolben ● hartverchromte Kolbenringe ● spezielle Kolbenbolzenlager ❏ Wear resistant drive gear ● surface hardened crank shafts ● low friction bearings and aluminium pistons ● hard chrome plated piston rings ● special wrist pin bearings ❏ Minimaler Platzbedarf äußerst kompakte Abmessungen ❏ Minimal space requirements very compact dimensions ❏ Èçíîñîñòîéêèé ïpèâîä ● Êîëåí÷àòûé âàë ñ ïîâåpõíîñòíûì óïpî÷íåíèåì...
Open the catalog to page 5
Lieferumfang und Zubehör Extent of delivery and accessories Îáú¸ì ïîñòàâêè è ïpèíàäëåæíîñòè siehe Preisliste refer to Price List ñì. ïpåéñêópàíò Sonder-Ausstattung Optional extras Äîïîëíèòåëüíûå ïpèíàäëåæíîñòè Je nach Baureihe u. a. Ölsumpfheizung, Öldifferenzdruck-Schalter, integrierte Anlaufentlastung, integrierte Leistungsregelung, Zusatzlüfter, ® wassergekühlte Zylinderköpfe, System für R22 Tiefkühlung, DruckgasTemperaturfühler, Motor-Schutzgerät mit Zusatzfunktionen (z. B. INT389). Sonderausführung für Schiffsbetrieb. Depending on series among others: crankcase heater, differential oil pressure...
Open the catalog to page 6
ASERCOM zertifizierte Leistungsdaten ASERCOM certified performance data Äàííûå ïî ïpîèçâîäèòåëüíîñòè, ñåpòèôèöèpîâàííûå ASERCOM Der Verband europäischer Hersteller von Kälteverdichtern und Regelgeräten (ASERCOM) hat ein Zertifizierungsprogramm für Leistungsdaten von Kälteverdichtern implementiert. Der hohe Standard dieser Zertifizierung wird gewährleistet durch ❏ Plausibilitätsprüfungen der Daten, die von Experten durchgeführt werden ❏ regelmäßige Messungen bei unabhängigen Instituten Dieser hohe Aufwand hat zur Folge, dass nur eine begrenzte Anzahl von Verdichtern eingereicht werden kann. Deshalb...
