Frequency Controlled Semi-hermetic Screw Compressors SP-111-1

Product catalog summary

Specifications:
The document outlines detailed specifications for compressors using R134a refrigerant, recommending polyol-ester oil (BSE170) for optimal performance. It categorizes compressors by type: HSK7471-70VS, HSK8561-90VS, HSK8571-110VS, and HSK8591-140VS, with performance data for 30 Hz, 50 Hz, and 90 Hz frequencies.

Performance Data:
Performance data is provided for various operating frequencies (30 Hz, 50 Hz, and 90 Hz), detailing cooling capacity (in Watts) and power consumption (in kW) across different evaporation and condensation temperatures, essential for assessing efficiency and energy needs.

Procedures and Recommendations:
The document stresses the importance of using an oil heater to maintain oil lubricity during long standstill periods, particularly for outdoor installations, extended shut-off periods, high refrigerant charge, and risk of refrigerant condensation in the separator, to prevent refrigerant dilution and maintain viscosity.

Technical Data:
Technical data includes displacement volume at minimum (20 Hz) and maximum (90 Hz) frequencies, oil separator types for DX systems, maximum working current, and frequency inverter specifications, along with voltage requirements and oil charge specifications.

Accessories and Oil Charge:
It specifies a self-regulating heater at the oil separator, with voltage requirements of 200-230 V and a power rating of 200 W for models OAH 2888 and OAH 7088. The oil charge type is BSE170 for R134a refrigerant.

Key Parameters:
- Refrigerant: R134a
- Oil Type: Polyol-ester oil (BSE170)
- Frequency: 30 Hz, 50 Hz, 90 Hz
- Voltage: 200-230 V
- Power Consumption: Varies by model and frequency
- Cooling Capacity: Varies by model and frequency

Limitations and Best Practices:
Ensure the use of the specified oil type and maintain the oil heater during standstill periods to prevent refrigerant dilution and maintain oil viscosity. Follow the specified voltage and frequency requirements for optimal compressor performance.

Catalog excerpts

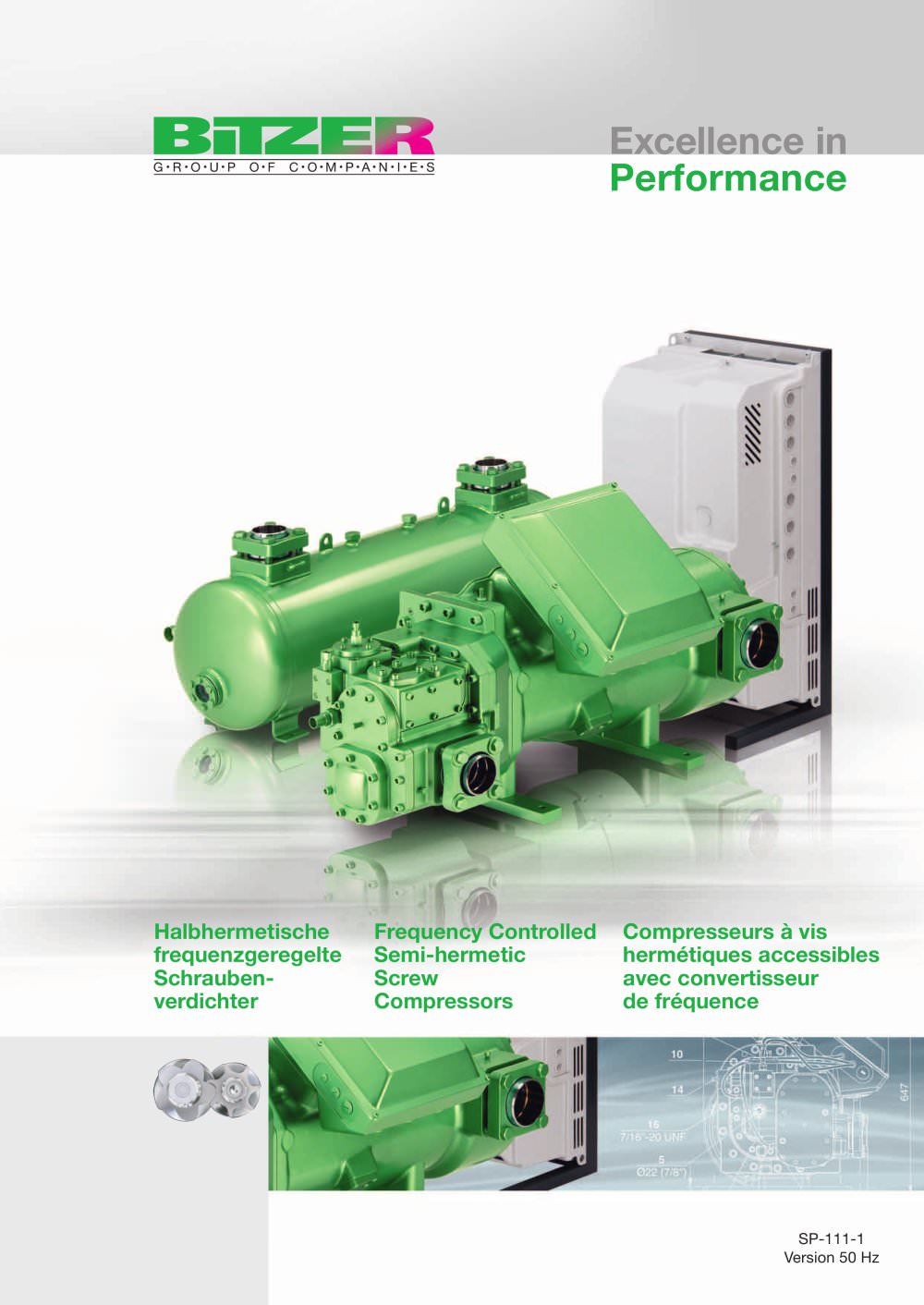

Frequency Controlled Semi-hermetic Screw Compressors SP-111-1-1

Frequency Controlled hermetiques accessibles avec convertisseur

Open the catalog to page 1

Frequency Controlled Semi-hermetic Screw Compressors SP-111-1-2

Contents Page Frequency-controlled screw The decisive technical features 4 Sommaire Page Donnees de puissance pour □ Universell und flexibel durch modulare Baugruppe □ Innovative und erprobte Technologie Frequency-controlled screw □ Universal and flexible due to modular □ Innovative and approved technology □ Universels et polyvalents grace a des composants modulaires □ Technologie novatrice et eprouvee Adapted HSK screw compressor for Convertisseur de frequence adapte au compresseur HSK avec une plage de Kompakter Hochleistungs-Olabscheider Compact high-efficiency oil separator for large volume...

Open the catalog to page 2

Frequency Controlled Semi-hermetic Screw Compressors SP-111-1-3

Ein neues BITZER Schraubenverdichter-Konzept für Kaltwassersätze und Wärmepumpen A new BITZER screw compressor concept for liquid chillers and heat pumps Un nouveau concept de compresseurs à vis BITZER pour les refroidisseurs de liquide et les pompes à chaleur Die neue Generation frequenzgeregelter Schraubenverdichter ist besonders für die Anforderungen moderner Flüssigkeitskühlsätze und Wärmepumpen ausgelegt. Das Konzept berücksichtigt vor allem den hohen Teillast-Anteil dieser Anwendungen durch eine besonders hohe Effizienz im mittleren Drehzahlbereich. The new generation of frequency-controlled...

Open the catalog to page 3

Frequency Controlled Semi-hermetic Screw Compressors SP-111-1-4

Die entscheidenden technischen Merkmale The decisive technical features Les caractéristiques techniques déterminantes ❏ Energie-effizient ● Hochleistungsprofil mit weiterentwickelter Geometrie und hoher Steifigkeit ● Hoher Motorwirkungsgrad ● Motorauslegung an FU-Betrieb angepasst ● Strömungsquerschnitte für gesamten Frequenzbereich ausgelegt ❏ Energy-efficient ● High-efficiency profile with further developed geometry and high stiffness ● High motor efficiency ● Motor selection adapted to FI operation ● Flow cross sections suitable for the entire frequency range ❏ Rentabilité sur le plan énergétique...

Open the catalog to page 4

Frequency Controlled Semi-hermetic Screw Compressors SP-111-1-5

Leistungsangaben Performance data Performances Leistungsdaten basieren auf der europäischen Norm EN 12900 bei 30, 50 und 90 Hz-Betrieb. Performance data are based on the European Standard EN 12900 at 30, 50 and 90 Hz operation. Les performances sont basées selon la norme européenne EN 12900 et pour un fonctionnement à 30, 50 ou 90 Hz. Bezugspunkte für Verdampfungsund Verflüssigungsdrücke Reference points for evaporating and condensing pressures Points de référence pour les pressions d'évaporation et de condensation Anschluss-Positionen 1 (HP) und 2 (LP) am Verdichter (siehe Maßzeichnung). Der...

Open the catalog to page 5

Frequency Controlled Semi-hermetic Screw Compressors SP-111-1-6

Application limits Limites d'application Halbhermetischer Schraubenverdichter Type designation Semi-hermetic screw compressor Compressor execution Motor size and design Additional frequency inverter Compresseur a vis hermetiques accessible Champ d'application (K Oder N) Taille et type du moteur Convertisseur de frequence additionnel

Open the catalog to page 6

Frequency Controlled Semi-hermetic Screw Compressors SP-111-1-7

ohne Flussigkeits-Unterkuhlung based on 10 K suction superheat, without liquid subcooling se referant a surchauffe a Inspiration de 10 K, sans sous-refroidissement de liquide Klima- / Normalbereich High- / Medium temperature range Climatisation / Moyennes temperatures Verdichter Verfl.- Compressor Cond. type temp. Compresseur Temp. Cooling capacity Puissance frigorifique [Watt] Power consumption Puissance absorbee Fiir Betrieb mit R134a ist Polyolester-OI For operation with R134a polyol-ester oil Pour le fonctionnement avec R134a il est necessaire d'utiliser de I'huile polyolester

Open the catalog to page 7

Frequency Controlled Semi-hermetic Screw Compressors SP-111-1-8

Leistungswerte 90 Hz Performance data 90 Hz Donnees de puissance 90Hz bezogen auf 10 K Sauggas-Uberhitzung, based on 10 K suction superheat, se referant a surchauffe a I'aspiration de ohne Flussigkeits-Unterkuhlung without liquid subcooling 10 K, sans sous-refroidissement de liquide Klima- / Normalbereich High- / Medium temperature range Climatisation / Moyennes temperatures ■ Fiir Betrieb mit R134a ist Polyolester-6l I For operation with R134a polyol-ester oil B Pour le fonctionnement avec R134a il est J (BSE170) erforderlich. J (BSE170) is required. J necessaire d'utiliser de I'huile polyolester...

Open the catalog to page 8

Frequency Controlled Semi-hermetic Screw Compressors SP-111-1-9

Technische Daten Technical data Caracteristiques techniques © Gewicht mit Saugflansch, Druckflansch und © Weight including suction flange, discharge © p0ids y compris bride d'aspiration, bride de Lotbuchse. flange, and brazed bushing. pression et manchon a braser. Daten fur Zubehor und Olfullung des Ols auch nach langeren Still- standszeiten. Sie verhindert starkere damit Viskositatsminderung. Die Olheizung muss im Stillstand des Verdichters betrieben werden be Data for accessories and oil charge ensures the lubricity of the oil even after long standstill periods. It pre- vents increased refrigerant...

Open the catalog to page 9

Frequency Controlled Semi-hermetic Screw Compressors SP-111-1-10

Dimensional drawings Croquis cotes 4 Anschluss fur Economiser / Kalte- Saug- und Druck-Absperrventil Option Connection positions 1 High pressure connection (HP) 3 Discharge gas temperature sensor 4 Connection for economiser / liquid 7 Oil drain (motor housing) 9 Threaded hole for pipe support 10 Service connection (oil filter) 12 Monitoring of oil stop valve 15 Screw for grounding of housing 16 Pressure relief (oil filter chamber) Suction and discharge shut-off valve option 1 Raccord de haute pression (HP) 1a Raccord additionnel de haute pression 2 Raccord de basse pression (LP) 3 Raccord de...

Open the catalog to page 10

Frequency Controlled Semi-hermetic Screw Compressors SP-111-1-11

Dimensional drawings Croquis cotes Connection positions 9 Connection for pressure relief valve 1 Entree de fluide frigorigene 2 Sortie de fluide frigorigene 4 Raccord pour le remplissage d'huile 5 Raccord pour service 9 Raccord pour soupape de decharge
