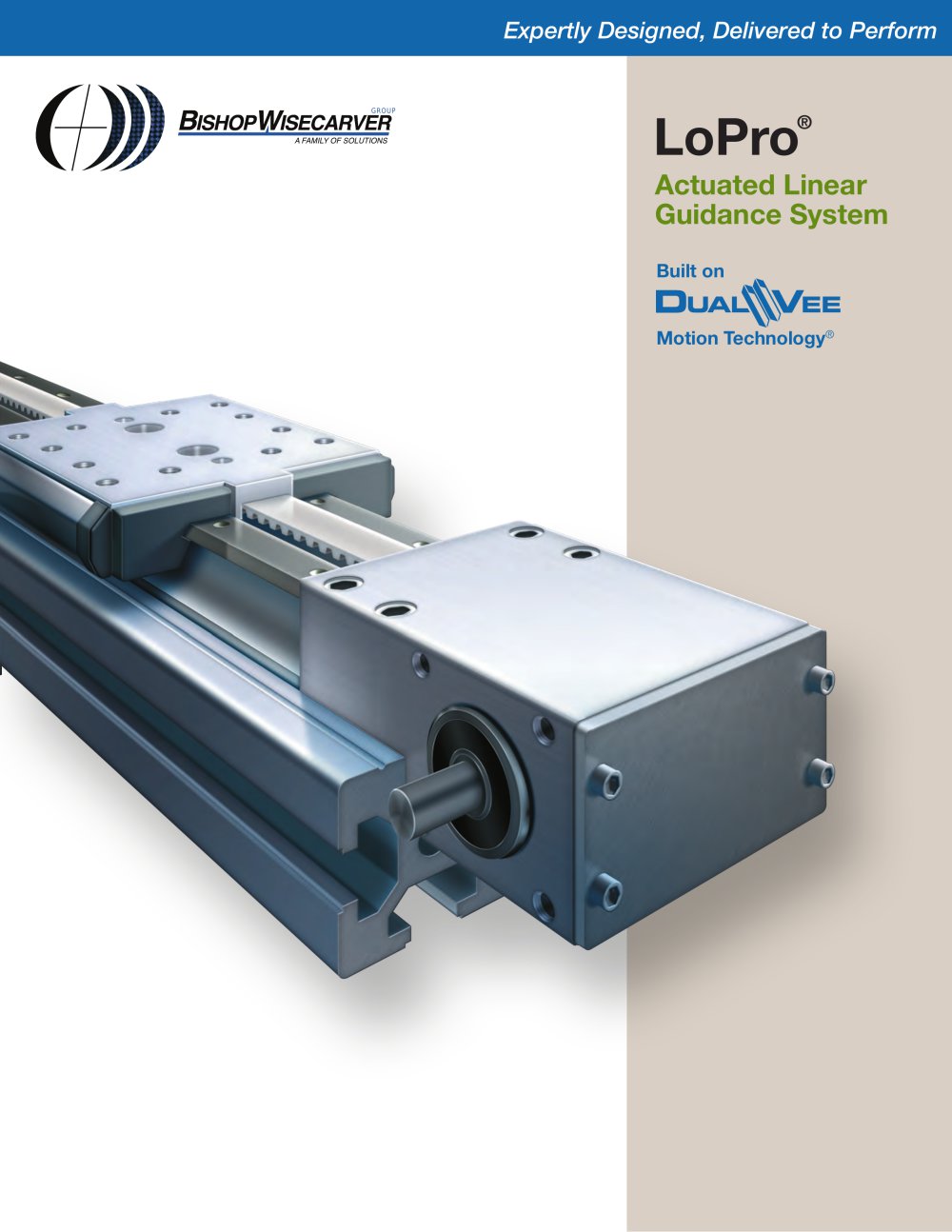

Motion Delivered to Perform Expertly Designed, Without Limits TM Actuated Linear Guidance System Built on Motion Technology®

Motion Technology® Bishop-Wisecarver, manufacturer of the ORIGINAL DualVee® guide wheel, is recognized as the market leader Hardened Track Surface for guide wheel technology. In 1968, Bud Wisecarver invented DualVee Motion Technology® (DMT). Three main components define DMT – the DualVee guide wheel, its mating vee profile track with mounting shoulder, and 90º DualVee Guide Wheel support bushings. DMT is one of the most popular guided motion technologies due to its self-cleaning action and self-aligning track, which result in an overall Double Row Angular Contact Bearing • • Lubed for Life Designed...

Motion Without Limits ® Product Overview LoPro® Linear Motion Systems LoPro linear motion systems are available in four sizes and in belt, lead screw, ball screw and chain driven configurations, as well as un-driven. LoPro provides a tough, cost effective, low friction, low profile modular solution, built to withstand a wide range of operating environments. LoPro is the system of choice for wood, packaging and textile machinery, as well as the clean room or laboratory. LoPro has the lowest profile in the industry, accomplished by mounting two lengths of our hardened steel track to a low profile...

Product Overview Proven Technology DualVee Motion Technology® has been successfully employed in industrial linear motion systems for over 40 years. High Speed Speeds up to 5.5 m/s, and acceleration up to 5 g’s. Tolerant of Contamination and Debris Inherent surface velocity gradient provides a constant sweeping action. Low Profile Sleek, compact design. Low Noise/Low Vibration Reduces noise and vibration recirculating ball designs. Long Stroke Lengths Tracks can be butt-joined to create systems of virtually any length (screw driven system lengths are limited by available screw lengths). Flexibility...

Motion Without Limits ® Typical Configurations Single Axis Linear Motion 3 © Bishop-Wisecarver Corporation 2017. All rights reserved.

DualVee-based linear guides are popular worldwide and used throughout a broad range of industries. ■ Machine tool ■ Laboratory ■ Automotive production ■ Industrial automation ■ Biomedical ■ Inspection equipment ■ Material handling equipment ■ Textile machinery ■ Paper processing and converting Bishop-Wisecarver specializes in long length challenges. Belt and chain driven LoPro linear actuators have been fabricated up to 80 feet. ■ Semiconductor ■ Packaging machinery ■ Electronics assembly ■ Non-contact machining equipment Automotive assembly plant. LoPro is used to carry an air gun and parts...

Motion Without Limits ® Belt Driven Systems Basic Wheel Plate Integral Wheel Lubricant Saturated Felt Drive End Constructed with anodized aluminum housing with a stainless steel drive shaft. The pulley and shaft are supported by two single row ball bearings. Aluminum Support Beam Idler End with Belt Tensioning Adjustment Rugged anodized aluminum housing; pulley is supported by two single row ball bearings. Tension adjustment screw is easily accessed on the back plate of the idler end assembly. Basic Wheel Plate Steel Support Beam Wiper Wheel Plate Aluminum Support Beam Wiper Wheel Plate Steel...

Belt Driven Systems ■ Complete belt actuated system, ready for installation ■ Long stroke, high speed and acceleration capability ■ AT style reinforced polyurethane belting ■ Linear accuracy of .008 in/ft (0.2mm/300mm) ■ Repeatable within .004 in (0.1mm) ■ Small and large drive options available on size 2 ■ Aluminum support beams, steel beams or un-mounted (without beams) ■ Basic wheel plate or wiper wheel plate ■ Optional NEMA and IEC motor mounts ■ Standard and corrosion resistant versions available ■ Aluminum alloy drive end pulleys with aluminum or plated steel flanges Carriage Assembly Load...

Motion Without Limits® Beam Mounted (Beam Length) Aluminum Beam Belt Un-mounted* *Un-mounted systems are designed for mounting to a customer-supplied mounting surface. System straightness and flatness are determined by mounting surface accuracy. Continuous support along the entire track plate length and under drive end mounting surfaces is required. 1. TL (Travel Length) must be in mm for metric calculation, inches for English calculation. 2. M (Mass of payload on the carriage) must be in kg for metric calculation, lbm for English calculation. © Bishop-Wisecarver Corporation 2017. All rights...

Belt Driven Systems - Basic Beam Mounted Wheel Plate (Carriage Length) (Travel Length) (Beam Length) (Carriage Length) (Travel Length) *Un-mounted systems are designed for mounting to a customer-supplied mounting surface. System straightness and flatness are determined by mounting surface accuracy. Continuous support along the entire track plate length and under drive end mounting surfaces is required. 1. TL (Travel Length) must be in mm for metric calculation, inches for English calculation. 2. M (Mass of payload on the carriage) must be in kg for metric calculation, lbm for English calculation. 8...

Drive Ends for Belt Driven Systems ■ Designed for high performance, high cycling linear motion ■ Incorporates high quality radial bearings with a high strength aircraft grade aluminum housing ■ Drive ends are available with optional relief holes for extremely aggressive environments with high particulate matter. Contact Bishop-Wisecarver for details. Right hand version shown. Dual shaft, left hand, and corrosion resistant versions are also available. Contact Bishop-Wisecarver for details. © Bishop-Wisecarver Corporation 2017. All rights reserved.

■ Belt adjustment is easily accomplished via rotation of a single, easy-to-access adjustment screw ■ High quality radial bearings and high strength aluminum housing provides smooth, accurate linear motion ■ Idler ends are available with optional relief holes for extremely aggressive environments with high particulate matter. Contact Bishop-Wisecarver for details. Corrosion resistant versions are also available. Contact Bishop-Wisecarver for details. © Bishop-Wisecarver Corporation 2017. All rights reserved.
