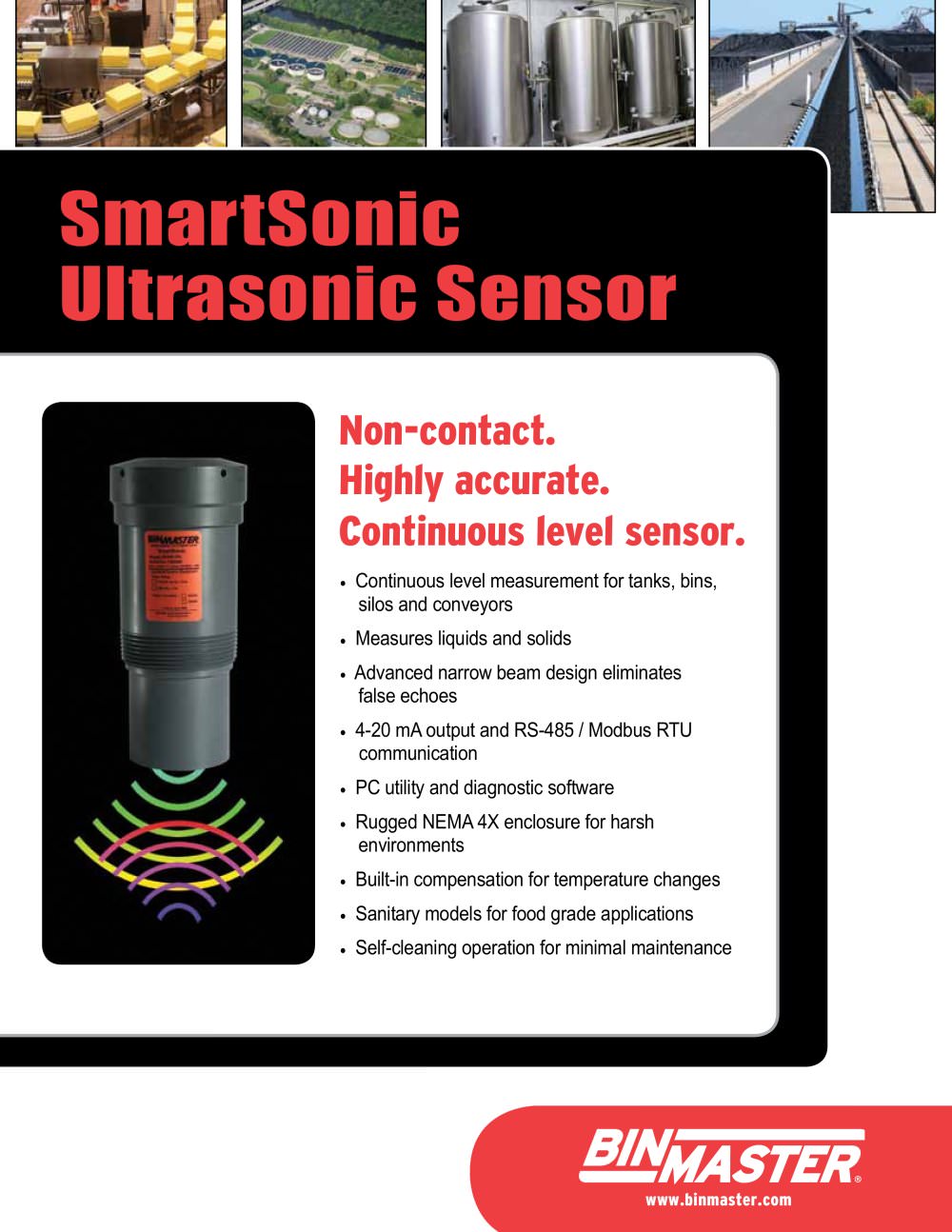

SmartSonic Ultrasonic Level Sensor
Product catalog summary
Overview: The SmartSonic Ultrasonic Sensor is a non-contact, highly accurate continuous level sensor designed for measuring levels in tanks, bins, silos, and conveyors. It is suitable for both liquids and solids and features advanced technology to eliminate false echoes.
Key Features:
- Continuous level measurement with 4-20 mA output and RS-485/Modbus RTU communication.
- Advanced narrow beam design for enhanced accuracy and elimination of false echoes.
- Rugged NEMA 4X enclosure for harsh environments and built-in temperature compensation.
- Sanitary models available for food-grade applications with self-cleaning operation.
Specifications:
- Operating temperature range: -4°F to 140°F (-40°C to 60°C) for standard models, up to 266°F (130°C) for sanitary models.
- Pressure maximum: 2 bars.
- Accuracy: +/-0.1% of maximum range.
- Beam angle: 6° to 12° conical at -3dB.
Applications:
- Suitable for water, oils, municipal waste, acids, aggregates, and solids.
- Used in chemical processing, food processing, and pharmaceutical applications.
- Can be installed on belt conveyors and in high-temperature environments.
Models and Options:
- Available in various models with different operating ranges and resolutions.
- Power options include 115 VAC, 230 VAC, and 12 to 30 VDC.
- Two-wire models available for simple 4-20 mA output requirements.
Accessories:
- PC-based software for monitoring and diagnostics.
- Optional display modules for remote viewing and process control.
- Ball & socket mounting flange for angled installations.
