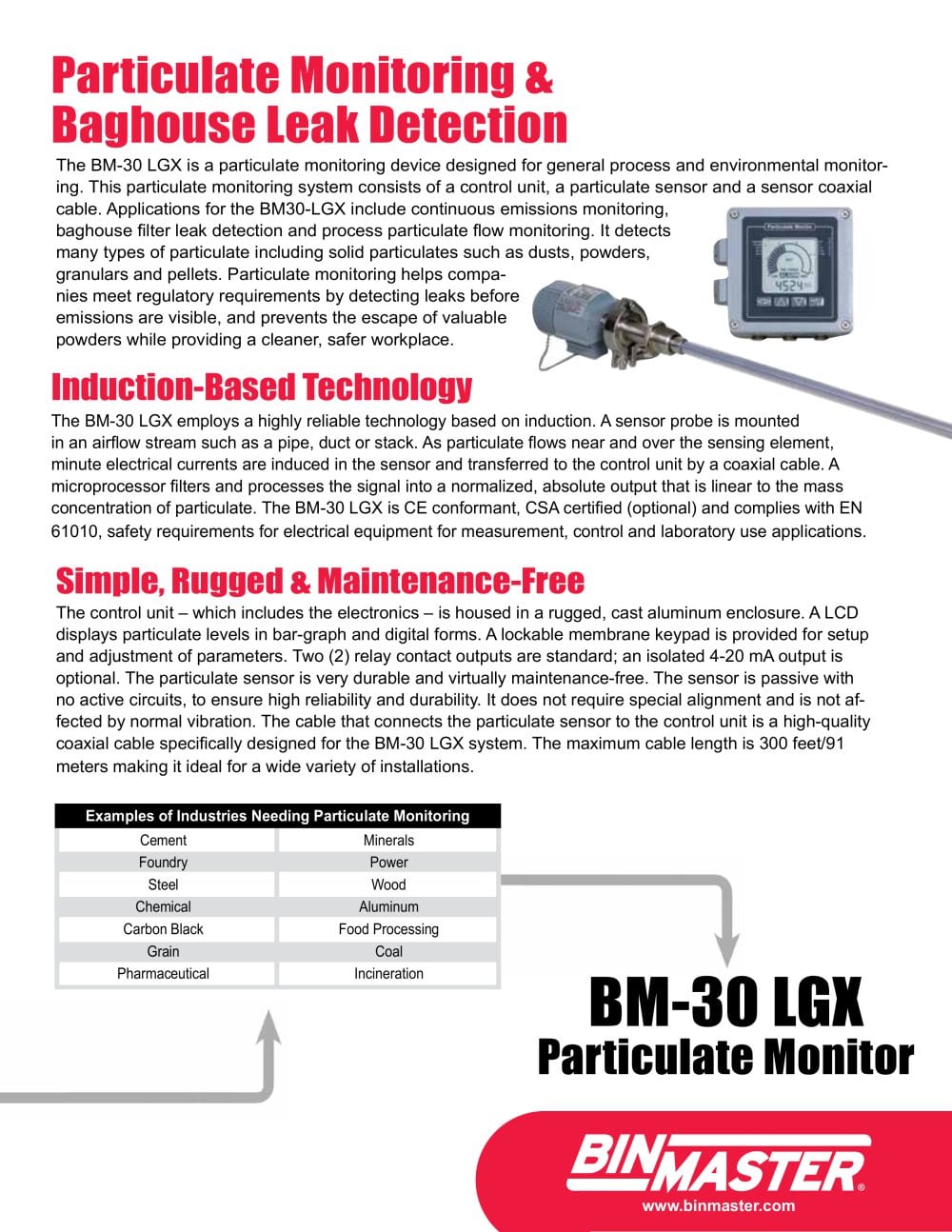

Particulate Monitoring & Baghouse Leak Detection The BM-30 LGX is a particulate monitoring device designed for general process and environmental monitoring. This particulate monitoring system consists of a control unit, a particulate sensor and a sensor coaxial cable. Applications for the BM30-LGX include continuous emissions monitoring, baghouse filter leak detection and process particulate flow monitoring. It detects many types of particulate including solid particulates such as dusts, powders, granulars and pellets. Particulate monitoring helps companies meet regulatory requirements by detecting leaks before emissions are visible, and prevents the escape of valuable powders while providing a cleaner, safer workplace. Induction-Based Technology The BM-30 LGX employs a highly reliable technology based on induction. A sensor probe is mounted in an airflow stream such as a pipe, duct or stack. As particulate flows near and over the sensing element, minute electrical currents are induced in the sensor and transferred to the control unit by a coaxial cable. A microprocessor filters and processes the signal into a normalized, absolute output that is linear to the mass concentration of particulate. The BM-30 LGX is CE conformant, CSA certified (optional) and complies with EN 61010, safety requirements for electrical equipment for measurement, control and laboratory use applications. Simple, Rugged & Maintenance-Free The control unit – which includes the electronics – is housed in a rugged, cast aluminum enclosure. A LCD displays particulate levels in bar-graph and digital forms. A lockable membrane keypad is provided for setup and adjustment of parameters. Two (2) relay contact outputs are standard; an isolated 4-20 mA output is optional. The particulate sensor is very durable and virtually maintenance-free. The sensor is passive with no active circuits, to ensure high reliability and durability. It does not require special alignment and is not affected by normal vibration. The cable that connects the particulate sensor to the control unit is a high-quality coaxial cable specifically designed for the BM-30 LGX system. The maximum cable length is 300 feet/91 meters making it ideal for a wide variety of installations. Examples of Industries Needing Particulate Monitoring Cement Foundry Steel Chemical Carbon Black Grain Pharmaceutical Minerals Power Wood Aluminum Food Processing Coal Incineration Particulate Monitor www.binmaster.co

BM-30 LGX Particulate Monitor Benefits • Early detection: detects broken bags and prevents cross contamination of materials • Scheduled maintenance: prevents unforeseen downtime and expensive equipment repairs • Regulatory compliance: detects leaks before they become visible, monitors air quality and helps companies meet EPA regulations • Plug & play: simply set the desired alarm level that will trigger an alert • Reliable operation: dust coating on sensor will not affect signal or trigger false alarms • Improved safety: available in CSA approved Intrinsically Safe version for hazardous area...
