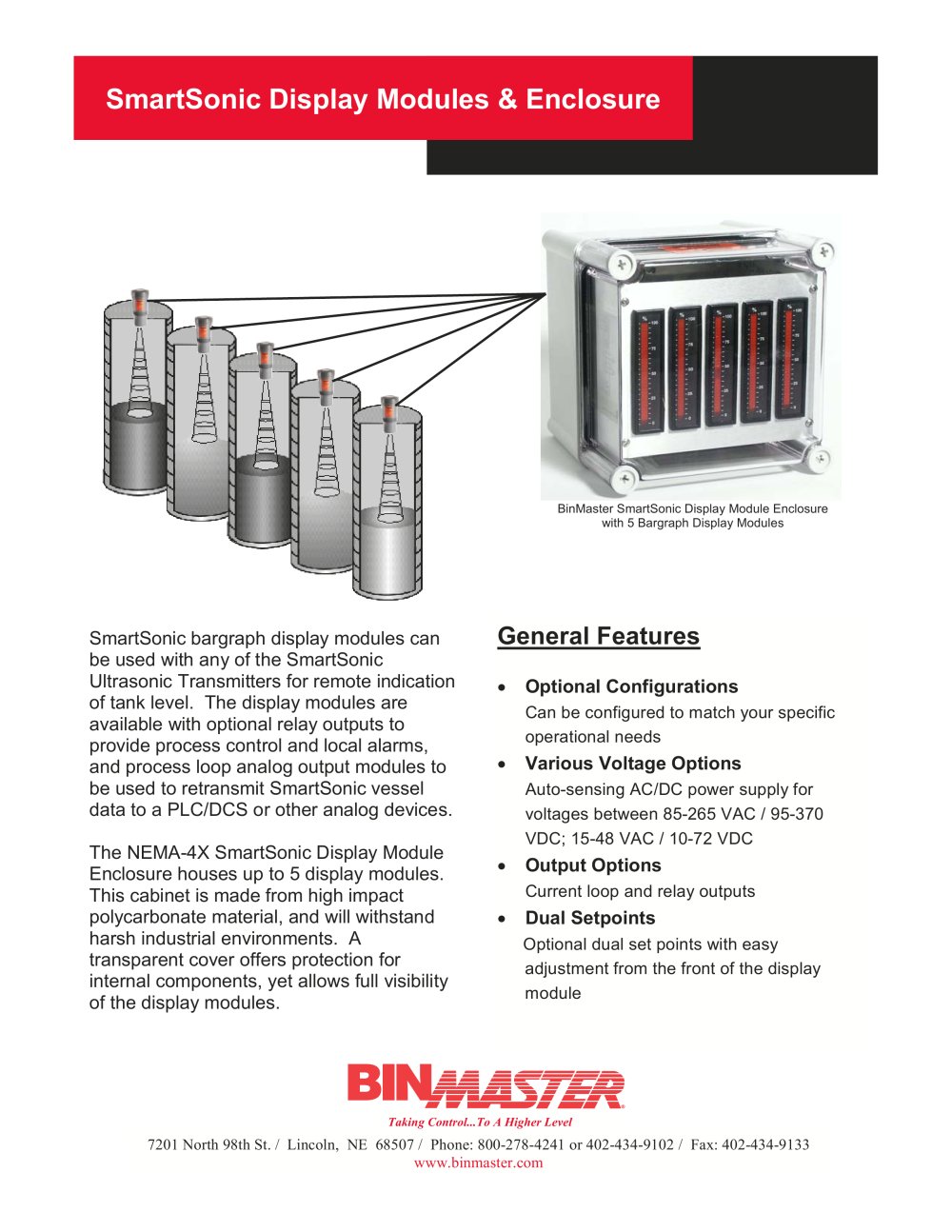

BinMaster SmartSonic Display Module Enclosure with 5 Bargraph Display Modules SmartSonic bargraph display modules can be used with any of the SmartSonic Ultrasonic Transmitters for remote indication of tank level. The display modules are available with optional relay outputs to provide process control and local alarms, and process loop analog output modules to be used to retransmit SmartSonic vessel data to a PLC/DCS or other analog devices. The NEMA-4X SmartSonic Display Module Enclosure houses up to 5 display modules. This cabinet is made from high impact polycarbonate material, and will withstand harsh industrial environments. A transparent cover offers protection for internal components, yet allows full visibility of the display modules. > Optional Configurations > Can be configured to match your specific operational needs Various Voltage Options > Auto-sensing AC/DC power supply for voltages between 85-265 VAC / 95-370 VDC; 15-48 VAC / 10-72 VDC Output Options > Current loop and relay outputs Dual Setpoints > Optional dual set points with easy adjustment from the front of the display module Taking Control...To A Higher Level 7201 North 98th St. / Lincoln, NE 68507 / Phone: 800-278-4241 or 402-434-9102 / Fax: 402-434-9133 www.binmaster.com size="-2">

Open the catalog to page 1

BinMaster SmartSonic Display Brochure - 2

Technical Specifications Input Specs: Process Loop, 4-20 mA (0-100.00) Input Specs: Process Loop, 4-20 mA (0-100.00) A/D Converter: 31 step flash converter A/D Converter: 14 bit single slope Accuracy: 0.05% of reading + 3 counts Accuracy: ѱ 0.05% of reading + 3 counts Temperature Coeff: 100 ppm C (typical) Warm-Up Time: 2 minutes Warm-Up Time: 2 minutes Display: 4 digit 0.31ٔ Red LED display Display: 31 red LED segments Decimals: User programmable Positive Overrange: All segments flash Positive Overrange: Bargraph and top segments of digital display flash Negative Overrange: Zero segments...
