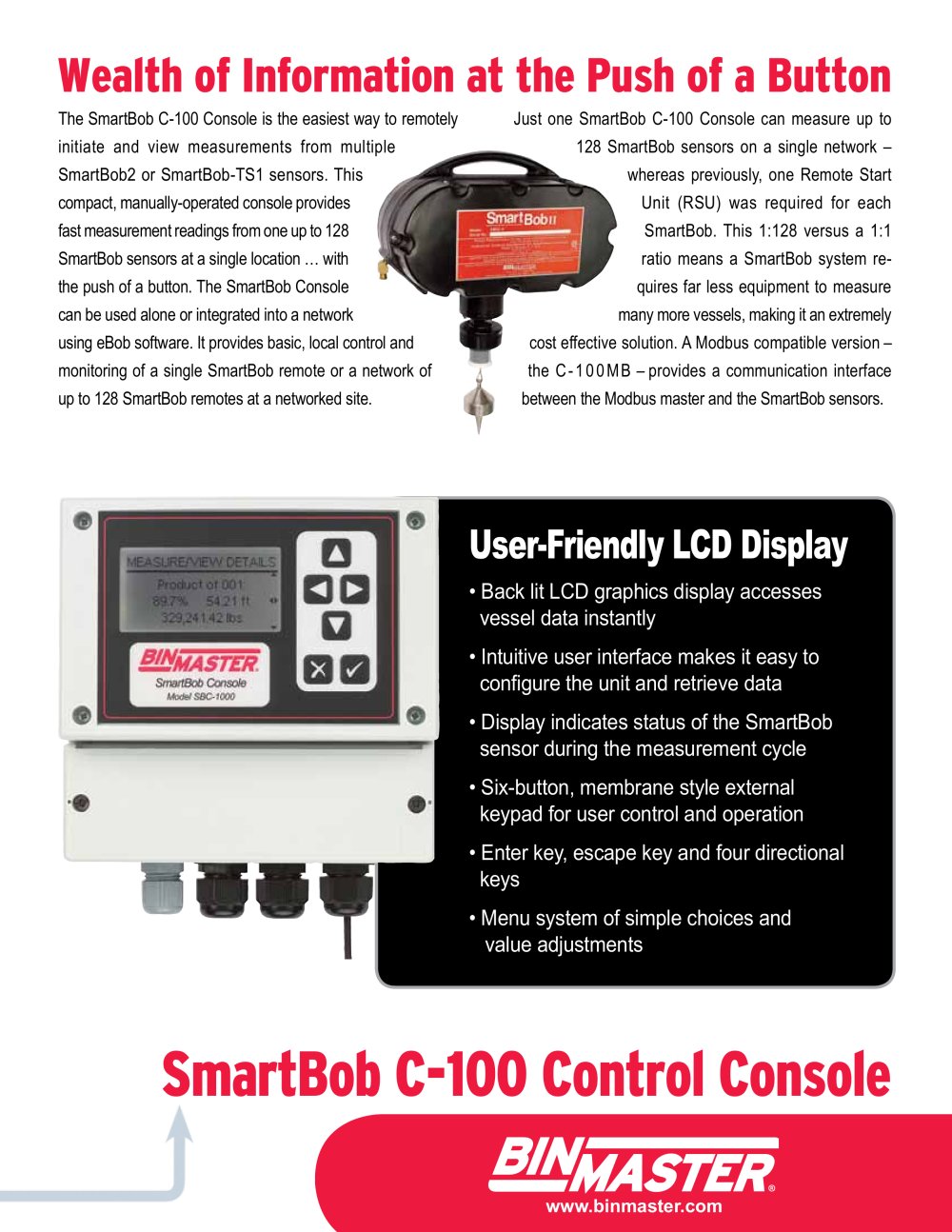

BinMaster SmartBob C-100 Control Console Brochure

BinMaster SmartBob C-100 Control Console Brochure

Product catalog summary

Overview: The SmartBob C-100 Console is a compact, manually-operated device designed to remotely initiate and view measurements from multiple SmartBob2 or SmartBob-TS1 sensors. It supports up to 128 sensors, offering a cost-effective solution by reducing the need for multiple Remote Start Units.

Specifications: The console features a user-friendly LCD display with a backlit graphics interface, a six-button membrane keypad, and a menu system for easy configuration and data retrieval. It provides measurements such as distance to product, height, percent full, and weight, calculated using vessel shape, dimensions, and product density.

Integration and Compatibility: The SmartBob C-100 can be used standalone or integrated into a network with eBob software. It includes a Modbus compatible version (C-100MB) for communication with Modbus masters. The console has a 4 to 20 mA output and remote start contact for interfacing with PLC/DCS systems.

Design and Durability: The console is housed in an impact-resistant polycarbonate enclosure suitable for outdoor installation. It operates within a temperature range of -4°F to 158°F (-20°C to 70°C) and includes features like water-tight cord grips, RS-485 port with surge protection, and internal memory for data retention during power loss.

Additional Features: The console can auto-detect and list connected SmartBob sensors, and it supports master loading of vessel characteristics to save time. It also includes an RS-232 port for future updates.

Contact Information: BinMaster, 7201 N. 98th St., Lincoln, NE 68507. Phone: 800.278.4241 | 402.434.9102. Fax: 402.434.9133. Website: www.binmaster.com. Email: [email protected].
