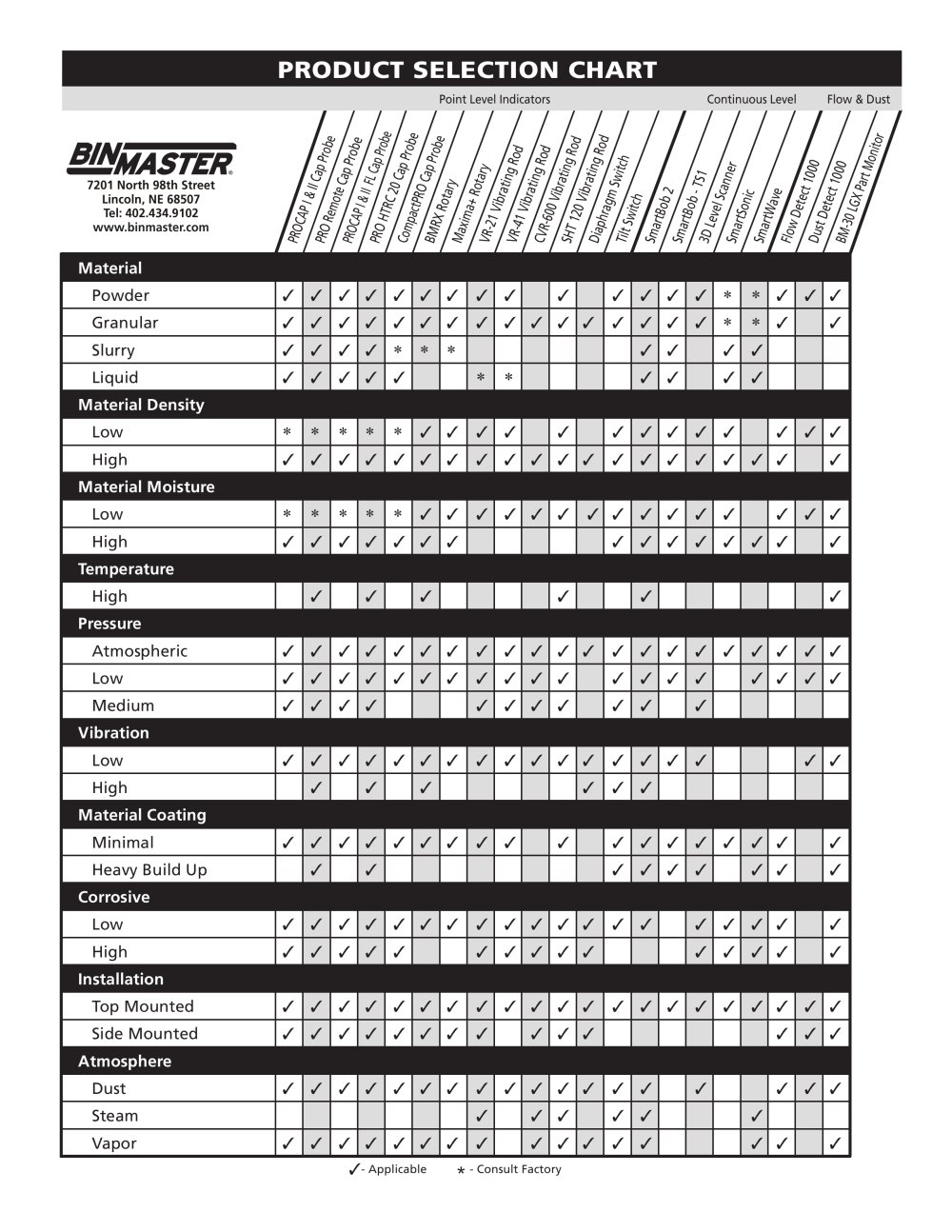

Product Selection Chart Overview

This document provides a detailed matrix for selecting appropriate measurement instruments based on material characteristics, environmental conditions, and installation parameters. The chart categorizes various product models against specific application criteria to guide optimal device choice.

1. Material Types and Compatibility

• Powder and Granular Materials: Most devices are applicable (marked '3'), with some requiring factory consultation ('*') for specific models.
• Slurry and Liquid Materials: Limited device compatibility; several models require factory consultation or are not applicable.

2. Material Properties

• Density: Devices generally support high-density materials well. Low-density materials often require factory consultation or are less compatible.
• Moisture Content: Both low and high moisture materials are supported by most devices, though some models have limitations with low moisture requiring consultation.

3. Environmental Conditions

• Temperature: High temperature applications are supported by select devices only.
• Pressure: Atmospheric, low, and medium pressures are broadly supported, with some gaps at medium pressure for certain models.
• Vibration: Devices generally perform well under low vibration; high vibration environments are supported by fewer models.
• Corrosiveness: Both low and high corrosive environments are accommodated by most devices, with some exceptions.
• Atmosphere: Dust and vapor atmospheres are widely supported; steam atmospheres have limited device compatibility.

4. Installation Types

• Both top-mounted and side-mounted installations are supported by most devices, with some models better suited for specific mounting types.

5. Device Models and Features

The chart lists multiple product models such as PROCAP I & II, Cap Probe PRO, Remote Cap Probe, PRO HTRC 20, CompactPRO Cap Probe, BM RX Rotary, Maxima+ Rotary, VR-21 Vibrating Rod, VR-41 Vibrating Rod, CVR-600 Vibrating Rod, SHT 120 Vibrating Rod, Diaphragm Switch, Tilt Switch, SmartBob, 3D Level Scanner, SmartSonic, SmartWave, Flow Detect 1000, Dust Detect 1000, and BM-30 LGX Part Monitor.

Each model is evaluated for applicability ('3' = applicable, '*' = consult factory) against the criteria above.

6. Legend and Notes

• 3: Applicable for the given condition or material.
• *: Requires factory consultation for suitability.

7. Contact Information

Manufacturer: BinMaster

Address: TS1, 7201 North 98th Street, Lincoln, NE 68507

Phone: 402.434.9102

Website: www.binmaster.com
