BinMaster Point Level Alarm Panel Brochure

Product catalog summary

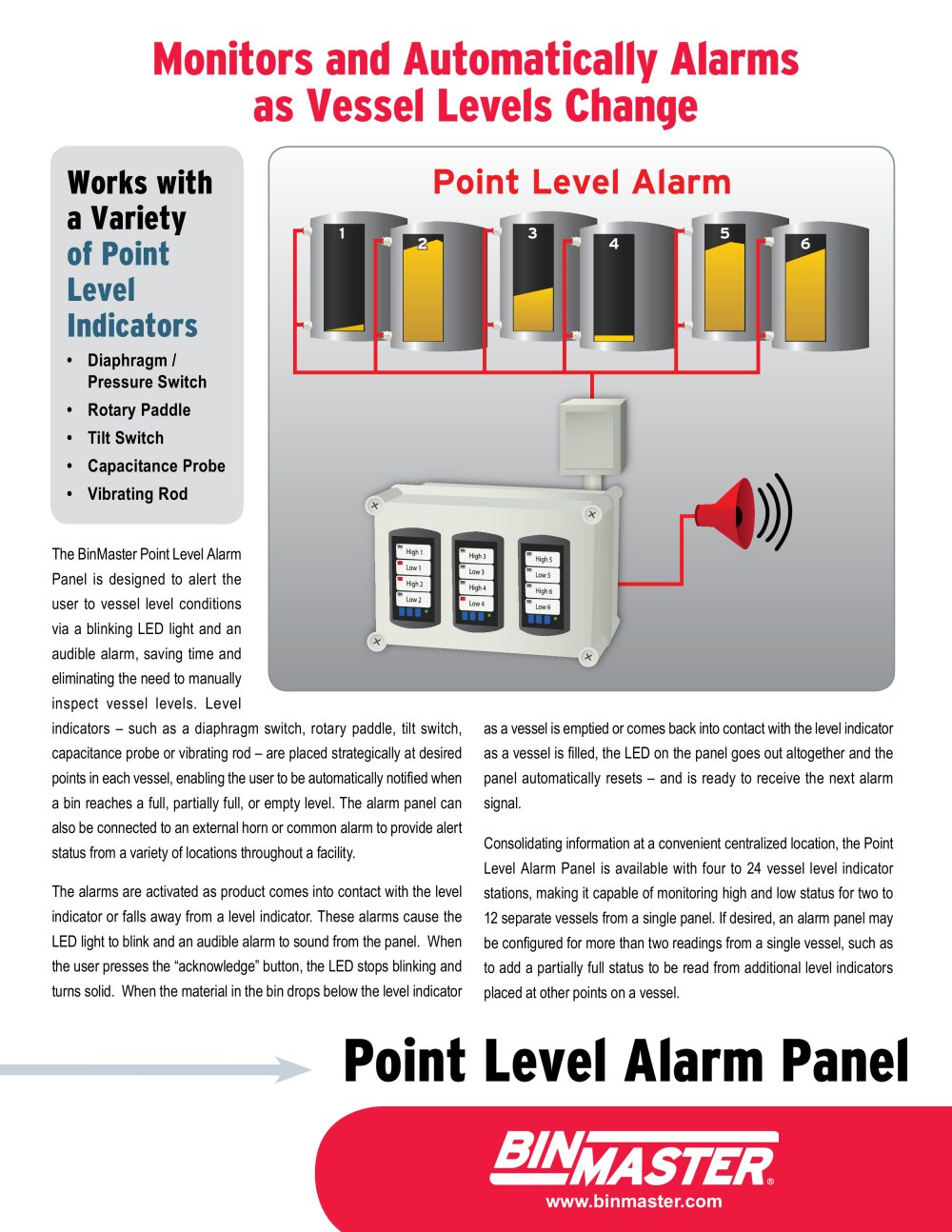

Overview: The BinMaster Point Level Alarm Panel is designed to provide automatic alerts for vessel level conditions using a blinking LED light and an audible alarm. This system eliminates the need for manual inspections by notifying users when a bin reaches full, partially full, or empty levels.

Specifications:

Input Voltage: 115 VAC +/- 10%, 50/60 Hz, 3 VA; 230 VAC +/- 10%, 50/60 Hz, 3 VA; 24–48 VDC, 2 W maximum.
Relay: SPDT 2A 240 VAC.
Enclosure: NEMA 4X, suitable for harsh environments.
Number of Indicator Stations: 4, 8, 12, 16, 20, or 24.
Operating Temperature: -4° to +158°F (-20° to +70°C).
Warranty: One year.

Functionality: The panel works with various point level indicators such as diaphragm switches, rotary paddles, tilt switches, capacitance probes, and vibrating rods. It can monitor high and low status for two to 12 separate vessels from a single panel and can be configured for more than two readings from a single vessel.

Features:

Automatic notification of vessel levels via LED and audible alarms.
Centralized monitoring for up to 24 level indicator stations.
Easy-to-read LED panel with high and low bin level alarms, power status, and acknowledge button.

Applications: Suitable for use in various industrial settings, particularly where harsh environmental conditions are present.

Contact Information: BinMaster, 7201 N. 98th St., Lincoln, NE 68507. Phone: 800.278.4241 | 402.434.9102. Fax: 402.434.9133. Website: www.binmaster.com. Email: [email protected].
