BinMaster

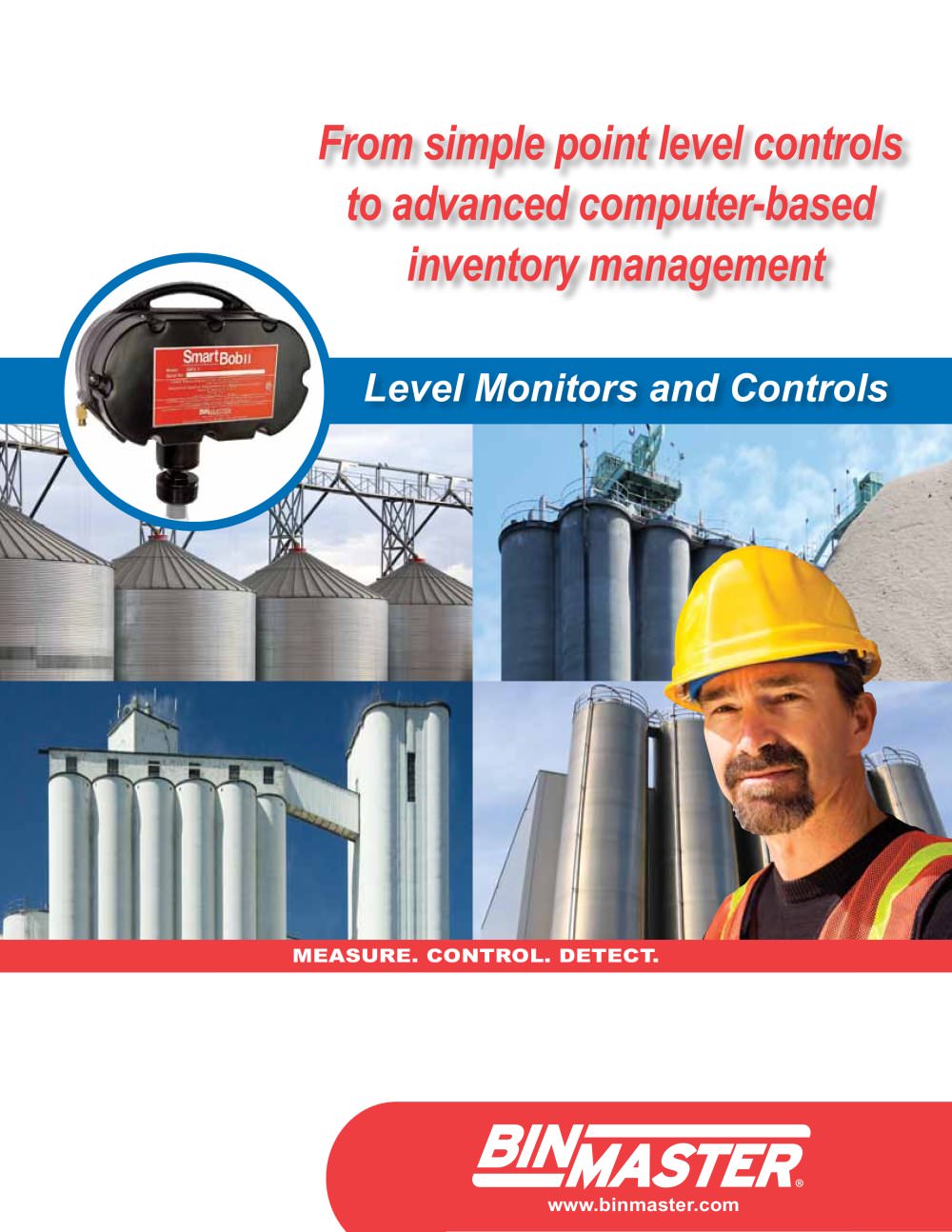

BinMaster Full Line Product Brochure

BinMaster Full Line Product Brochure

Product catalog summary

Overview: BinMaster offers a variety of devices aimed at enhancing process control and inventory management across multiple industries. Their products focus on improving safety, simplifying operations, saving time, reducing staffing needs, preventing bin overflows, and optimizing inventory management.

Key Features:

Safety Enhancements: Bin level indicators minimize manual checks, reducing accident risks. Explosion-proof certifications are available for volatile materials.
Operational Simplicity: Devices are user-friendly, requiring minimal technical expertise and maintenance.
Time and Staff Efficiency: Centralized monitoring reduces manual checks, allowing efficient management with fewer staff.
Overflow Prevention: Automatic monitoring prevents overflows and material waste.
Inventory Management: Systems like SmartBob provide accurate inventory levels for just-in-time replenishment.
Cost-Effectiveness: Solutions cater to various budgets, offering quick ROI through labor savings and optimized storage.

Product Offerings:

Non-Contact Ultrasonic & Pulse Radar: SmartSonic and SmartWave provide continuous level measurement for tanks, bins, and silos.
SmartBob Systems: Cable-based sensors for reliable inventory measurement, compatible with eBob software.
Vibrating Rods and Capacitance Probes: Designed for point level detection, preventing material buildup.
3DLevelScanner: Acoustics-based technology for multiple-point measurement in high-dust environments.
Tilt Switch and Diaphragm Switch: Cost-effective solutions for high-level indication in dry materials.
Rotary Level Controls: Energy-saving devices for point level detection.
Airbrator and Flow/No Flow Detection: Combines aeration and vibration for flow aid, with systems to detect flow changes.
Dust Detection: Monitors particulate emissions, alerting users to abnormal levels.

Applications: BinMaster products are applicable in industries such as grain, seed, feed, chemical processing, aggregates, cement, food processing, bioenergy, pulp and paper, petrochemicals, plastics manufacturing, power plants, and mining operations.

Technical Specifications: Detailed specifications include power requirements, temperature ranges, measurement accuracy, and certifications. AC units require 115 VAC 60 Hz or 230 VAC 50 Hz, while DC units need 12 to 30 VDC at 0.07 Amp. The ambient temperature range is -40°F to +140°F (-40°C to +60°C). The process temperature varies with materials: PP rod up to 140°F (60°C) and PTFE rod up to 400°F (204°C). The operation uses pulse radar at a frequency of 6.3 GHz, with a measurement range of 100’ for liquids and 50’ for solids, and an accuracy of ± 0.25%.

3DLevelScanner Applications: Suitable for pellets, granulars, powders, and bulk solids in high dust environments. Ideal for bins, silos, and open pits with irregular surfaces.

3DLevelScanner Features: Offers multiple-point bin volume measurement, acoustical-based low-frequency technology unaffected by dust, and a maximum measuring range of 200 feet.

Flow Detect 1000 Applications: Detects flow/no-flow conditions in pneumatic pipelines, gravity chutes, and feeders.

Flow Detect 1000 Features: Uses Doppler technology for motion detection, offering non-intrusive flush mounting and selectable sensitivity adjustment.

Dust Detect 1000 Applications: Monitors emissions through air filtration systems, suitable for various industries.

Dust Detect 1000 Features: Complies with EPA regulations, provides averaged emission readings, and includes a pre-warning indicator for hazardous situations.

BM-30 LGX Particulate Monitor Applications: Monitors dust collector emissions and detects leaks.

BM-30 LGX Features: Complies with EPA regulations, offers a simple absolute output, and features a large LED display.

Point Level Indicators: Includes models like BMRX, MAXIMA+, Mini Rotary, Tilt Switch, BM-45, and BM-65, designed for specific applications in detecting point levels of solids, powders, and granular materials.

Airbrator Aeration & Vibration Applications: Eliminates packing and maintains flow of finely-ground dry bulk materials.

Airbrator Features: Provides dual-action flow aid through aeration and vibration, requiring fewer pads than diffuser type devices.

PROCAP Series:

Applications: Suitable for bins, vessels, tanks, chutes, and conveyors.
Features: Includes explosion-proof design, simple calibration, and RF interference protection.
Specifications: Universal power supply, high temperature and pressure tolerance.

PRO REMOTE:

Applications: Designed for high temperature and vibration conditions.
Features: Auto-calibration, high sensitivity, and fail-safe operation.
Specifications: Operates with a wide range of power supplies.

Compact PRO:

Applications: Ideal for smaller bins and vessels.
Features: Compact design, easy installation, and high sensitivity.
Specifications: Operates with multiple power options.

Vibrating Rod Series:

Applications: Used for high and low-level indication.
Features: No calibration required, maintenance-free, and self-cleaning.
Specifications: Wide power range, high temperature tolerance.

Conclusion: The document outlines a range of probes designed for diverse industrial applications, emphasizing their adaptability, safety certifications, and operational efficiency in challenging environments.
