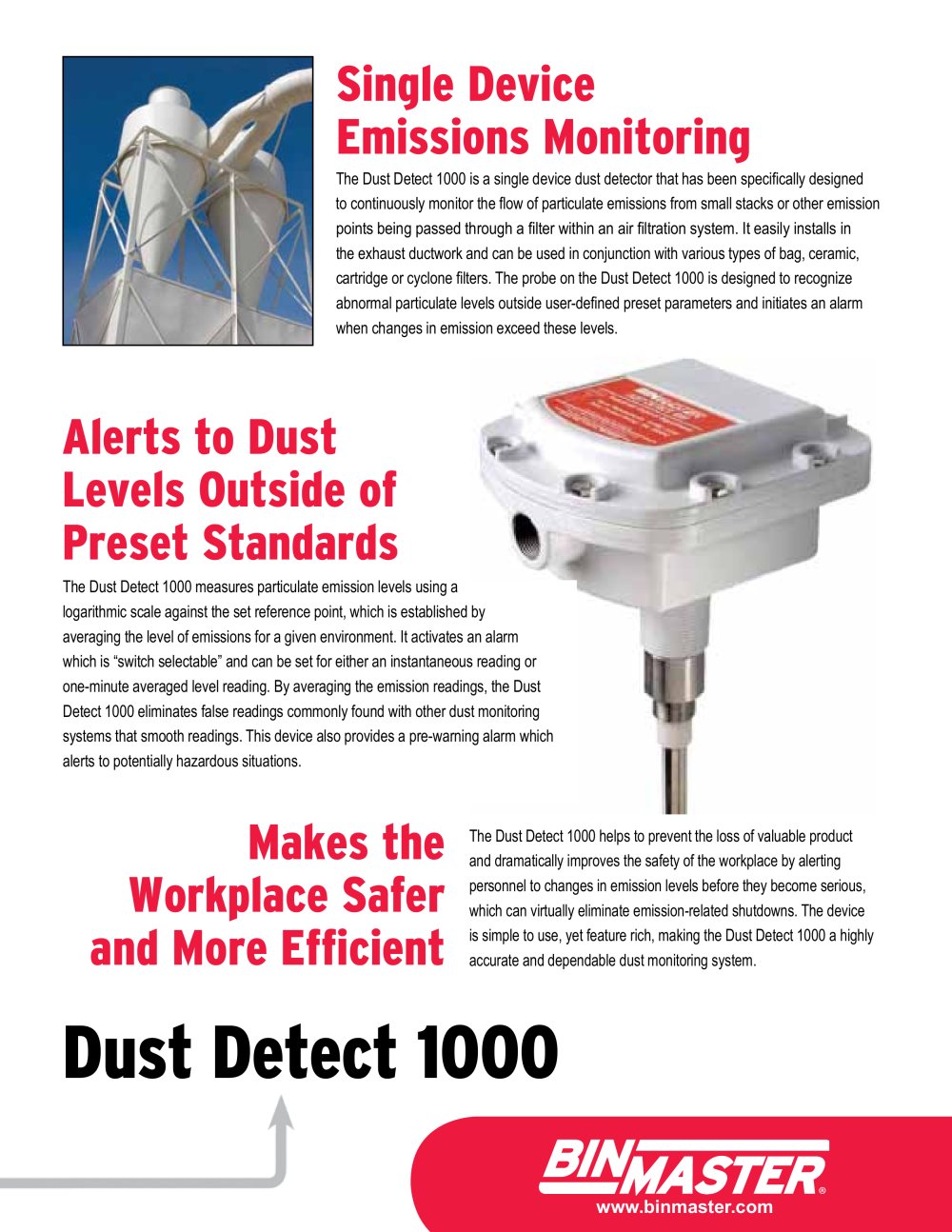

BinMaster Dust Detect 1000 Brochure

BinMaster Dust Detect 1000 Brochure

Product catalog summary

Overview: The Dust Detect 1000 is a single device designed for continuous monitoring of particulate emissions from small stacks or emission points in air filtration systems. It is compatible with various filter types and alerts users to dust levels outside preset standards, enhancing workplace safety and efficiency.

Key Features:

Utilizes triboelectric technology to detect particulate emissions.
Prevents false readings even with dust accumulation on the sensor rod.
Offers both instantaneous and one-minute averaged alarm settings.
Includes a pre-warning alarm for potentially hazardous situations.
Provides a 4-20 mA output for integration with PLC systems.

Specifications:

Enclosure: Die cast aluminum with FDA recognized powder coat finish.
Power Requirement: 115 VAC, optional 230 VAC, 60/50 Hz.
Operating Temperature: -25° to +160°F (-32° to +71°C).
Stack Temperature: Up to 250°F (107°C).
Conduit Connection: 3/4” NPT.
Process Connection: 1-1/4” NPT.
Output: Two SPDT 5A relays for warning and alarm.
Sensitivity: 1 mg/m (0.0005 gr/SCF).
Sensor Rod: 316 stainless steel, available in standard and custom lengths.

Applications: Suitable for industries such as ferrous and non-ferrous metals, food processing, pharmaceuticals, cement, mining, foundries, fertilizer, textiles, and more.

Benefits: The Dust Detect 1000 helps prevent product loss and improves safety by alerting personnel to emission changes before they become critical, reducing the risk of emission-related shutdowns.
