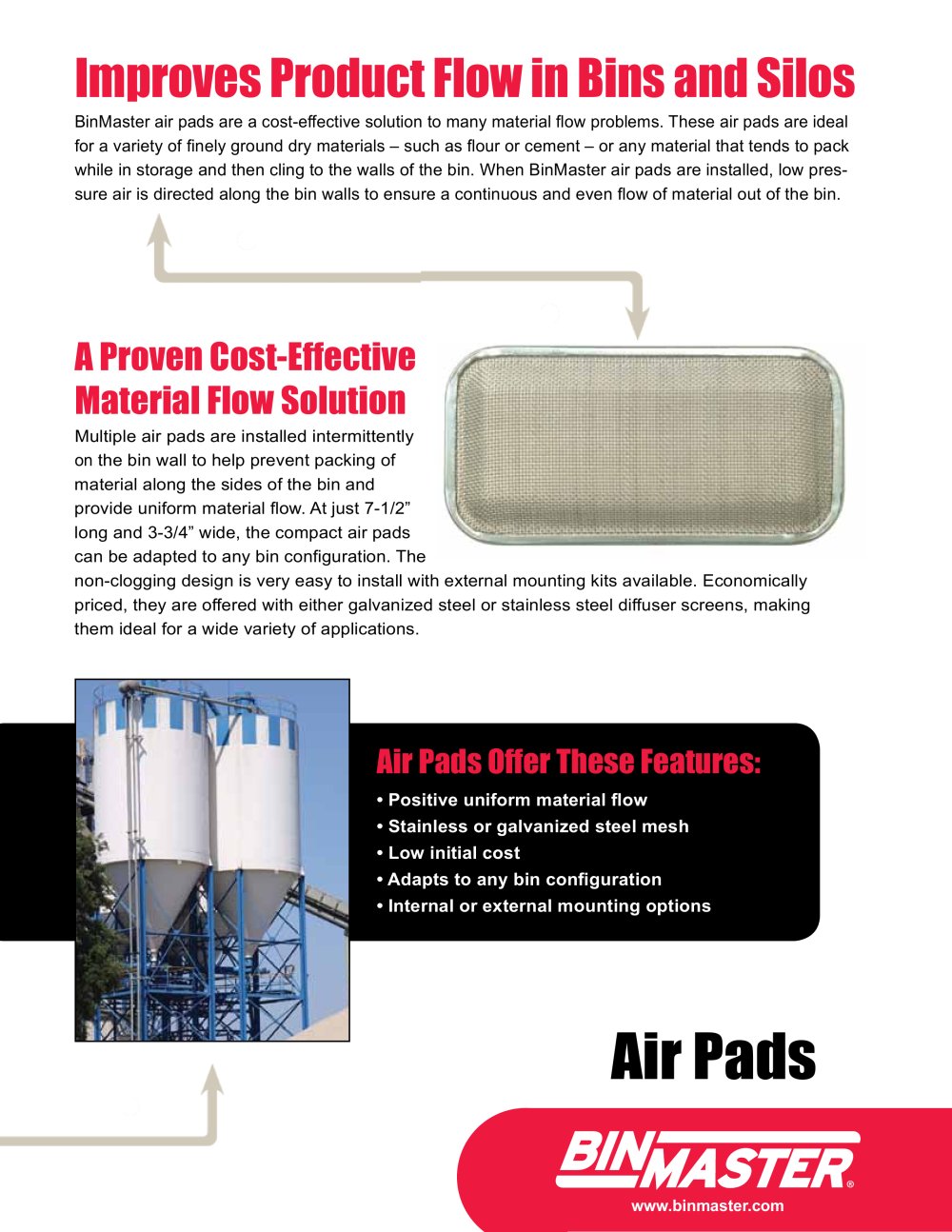

BinMaster Air Pad Brochure

Product catalog summary

Overview: BinMaster air pads are designed to improve material flow in bins and silos, particularly for finely ground dry materials like flour or cement. They prevent material from packing and clinging to bin walls by directing low-pressure air along the walls.

Key Features:

Positive and uniform material flow.
Available in stainless or galvanized steel mesh.
Low initial cost and adaptable to any bin configuration.
Options for internal or external mounting.

Specifications:

Body: Zinc-Plated Steel or Stainless Steel.
Diffuser Cloth: Cotton Canvas (up to 180°F) or Fiberglass (up to 600°F).
Diffuser Screen: 16 Mesh (Galvanized Steel or Stainless Steel Type 316).
Gasket: Neoprene.
Spacer Washers: Nickel-Plated Steel.
Tank Stem/Locknut: 1/8” (3 mm) Brass.

Dimensions:

Length: 7-1/2” (190.5 mm).
Width: 3-3/4” (95.2 mm).
Height of pad: 1/2” (12.7 mm).
Length of stem: 2” (50.80 mm).

Air Supply Requirements: The air pads require a positive displacement low-pressure blower. The air volume requirements vary with pressure levels, as shown in the provided chart.

Installation Guidelines: The number of air pads required depends on the bin size and configuration. Twelve-inch mounting centers are recommended, with specific guidelines for the maximum length of sloped walls and pipe sizes.

Ordering Information: Various models are available based on material and diffuser cloth type, including options for zinc-plated or stainless steel bodies and cotton or fiberglass diffuser cloths.

Contact Information: BinMaster can be contacted via their website, phone, or mailing address for further inquiries or orders.
