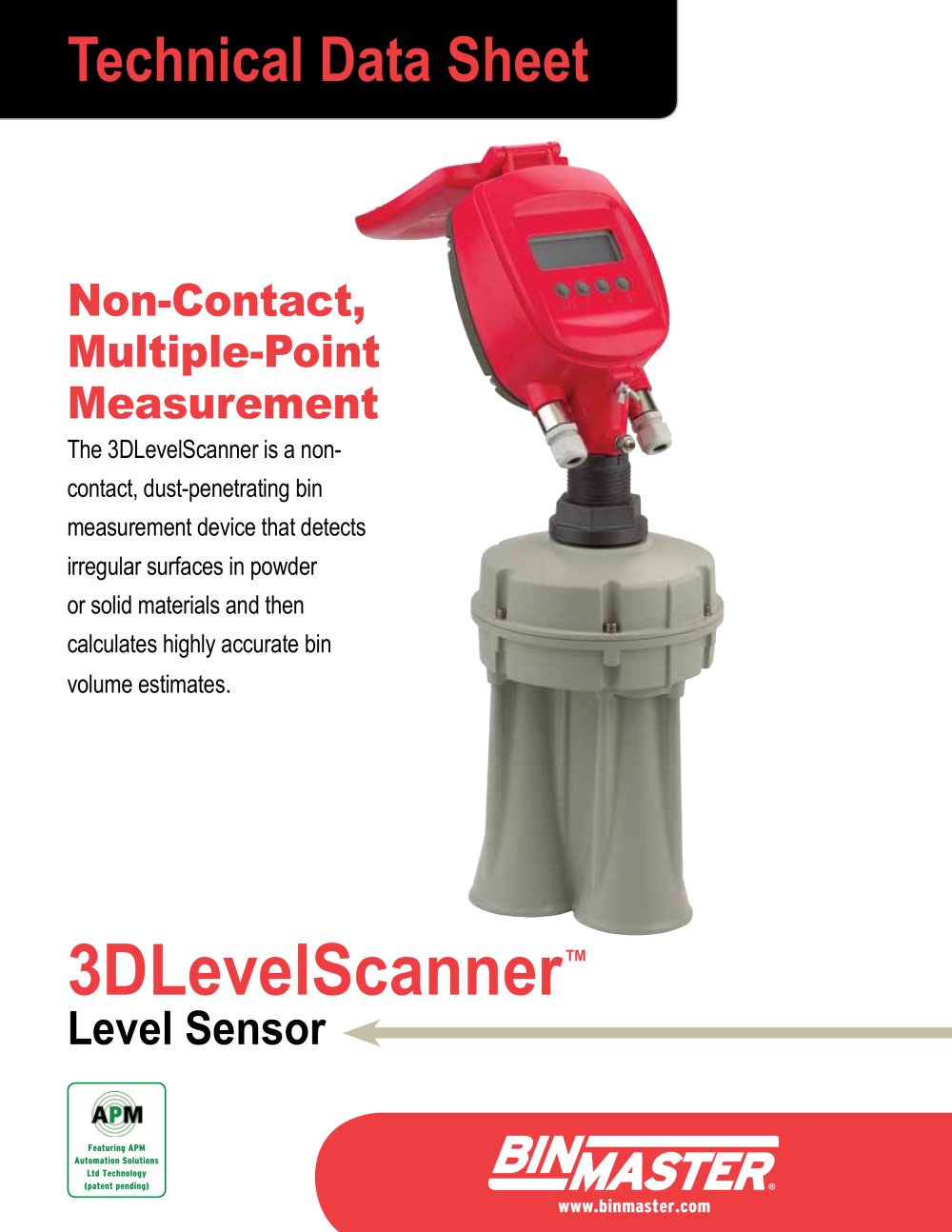

www.binmaster.com 3DLevelScanner™ Level Sensor Technical Data Sheet Non-Contact, Multiple-Point Measurement The 3DLevelScanner is a noncontact, dust-penetrating bin measurement device that detects irregular surfaces in powder or solid materials and then calculates highly accurate bin volume estimates. Featuring APM Automation Solutions Ltd Technology (patent pending)
Open the catalog to page 1
Overview Accurate Volume Measurement The BinMaster 3DLevelScanner uses non-contact, dust-penetrating technology to provide unsurpassed bin volume accuracy. Unlike conventional single point devices, it works by measuring multiple points within the bin. The 3DLevelScanner uses a very low frequency acoustical signal to penetrate dust and take measurements which are determined by how long the signal takes to “travel to” solid or powder material and “return to” the device. This technology is proven to perform in powders and bulk solids, determining a highly accurate volume of materials contained...
Open the catalog to page 2
Technical Data Materials, Non-Wetted Parts Housing Painted aluminum die casting Inspection Window in Housing Cover Polycarbonate Antenna Painted aluminum die casting Flange Steel Weight 12.3 lb (5.6 kg) Thread version Output Variable Output Signal 4 - 20 mA/HART, RS-485, Modbus RTU, TCP/IP Resolution 10 ìA Fault Signal Current output unchanged, 22 mA > 3.6 mA (adjustable) Current Limitation 22 mA Load 4-wire sensor Max. 500 Ohm Ambient Conditions Ambient, storage and transport temperature -40 to +185¢ªF (-40 to 85¢ªC) Relative humidity 20% to 85% Altitude 16,400 ft (5,000 m) Process...
Open the catalog to page 3
Technical Data Power supply – 4-wire instrument (Active) 4 - 20 mA / HART Supply Voltage 20 to 32 VDC Power Consumption Max 4VA; max 3 W Electrical Protective Measures Protection IP67 according to IEC 60529 Approvals ATEX ATEX II 1/2D, 2D, Ex ibD/iaD 20/21 T110¢ªC ATEX II 2G Ex ia/ib IIB T4 FM FM Intrinsically Safe Class I, II, Division I, Groups C, D, E, F, G (CFM pending) IECEx IEC EEx ia IIC T6 (pending) CE EMC Emission EN 61326:1997 (Class B) Susceptibility IEC / EN 61326:1997 + A1:1998 + A2:2001 + A3:2003 NSR (73/23/EWG) EN 61010-1:2001 FCC Conformity To part 15 of the FCC regulations...
Open the catalog to page 4
PS 4 to 20 mA/HART 4 to 20 mA RS-485 Display PS Electrical Connection & Wiring General Requirements The power supply range can differ depending on the instrument version. See the Technical Data section for full details. In hazardous areas, take note of the appropriate regulations, conformity and type of approval certificates of the sensors and power supply units. Power Supply 4 - 20 mA/HART 4-wire Power supply and signal current are carried on two separate connection cables. The output signal is active. Hence, the PLC must be configured passive. Connection Cable An outer cable diameter of...
Open the catalog to page 6
Operation The 3DLevelScanner can be set up and operated using one of the following: • The LCD panel • HART handheld • A software tool (3DLevel Manager) Adjustment Using the LCD Panel 1. RS-232 USB connection 2. 3DLevelScanner 3. HART adapter cable 4. HART Resistance -250 Ohm Navigate to the left within a function group; press ESC for 3 sec to go back to the basic screen Navigate upwards in the selection list; edit numeric value within a function Navigate downwards in the selection list; shifts to the right within a function Navigate to the right within a function group; confirmation and...
Open the catalog to page 7
Shipping Address: 7201 N. 98th St. Lincoln, NE 68507 Mailing Address: P.O. Box 29709 Lincoln, NE 68529 800.278.4241 | 402.434.9102 Fax: 402.434.9133 www.binmaster.com info@binmaster.com Featuring APM Automation Solutions Ltd Technology (patent pending) 3DLevelScanner™ 3DLevelScanner™ Model Description Part No. 3DLS-SB 3DLevelScanner-SB, 20-36 VDC, 4 to 20 mA output/Hart protocol, and RS-485 communications. Determines the average volume of stored materials based on a 30¢ª beam angle in silos up to 14' diameter and 40' tall. Unit comes with internal LCD display and 3DLevel Manager software is...
