IntelliSpray™ IS30

IntelliSpray™ IS30

IntelliSpray™ IS30

Product catalog summary
Overview
The IntelliSpray™ IS30 Proportioner is an optimized spray foam system designed to enhance contractor performance with a compact and efficient design. It maintains core features such as 99% ratio accuracy, faster heat-up times, and advanced system control capabilities.

Key Features
  • True Ratio Control: Independent servo motors and integral flow meters ensure accurate application of foam by maintaining the correct ratio of materials.
  • High DeltaT: Unique heater technology provides a Delta-T of over 70°F, allowing for faster spraying and increased productivity.
  • Intuitive Display: A 10" full-color touchscreen with intuitive menus simplifies operation.
  • Industrial Grade Hardware: Durable components designed to reduce failure points and ensure longevity, with motor bearings rated for over 20,000 hours.
  • Remote Connectivity: Cloud-enabled tech support and remote monitoring capabilities, including Automatic Viscosity Control for optimal temperature and pressure settings.

Product Specifications
  • Ratio Accuracy: 99%
  • DeltaT: 70°F
  • Start-up Time: Less than 15 minutes
  • Max. Fluid Pressure: 2,250 PSI (155 BAR)
  • Max. Fluid Temperature: 200°F (40°C)
  • Max. Flow Rate: 30 lb/minute
  • Max. Hose Length: 250ft (76m) for 4 zones, 350ft (107m) for 6 zones
  • Power Requirements: 200-240 VAC 3-Phase
  • Dimensions: 32"W x 68"H x 27"D
  • Weight: 415 lb (188 kg)

Service and Maintenance
  • Easy, modular service design allows for quick replacement of major components.
  • Embedded sensors and automated procedures simplify troubleshooting and maintenance.

Contact Information
For more information, visit binks.com or contact regional offices in the Americas, EMEA, China, and Japan.
See more

Catalog excerpts

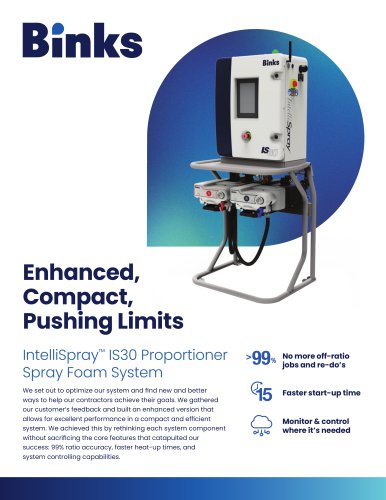

IntelliSpray™ IS30-1

Enhanced, Compact, Pushing Limits IntelliSpray™ IS30 Proportioner Spray Foam System We set out to optimize our system and find new and better ways to help our contractors achieve their goals. We gathered our customer’s feedback and built an enhanced version that allows for excellent performance in a compact and efficient system. We achieved this by rethinking each system component without sacrificing the core features that catapulted our success: 99% ratio accuracy, faster heat-up times, and system controlling capabilities. No more off-ratio jobs and re-do’s Faster start-up time Monitor & control where it’s n

 Open the catalog to page 1
IntelliSpray™ IS30-2

Spraying polyurethane foam is hard work. The last thing you need is equipment issues keeping you from finishing the job. That's why we set out to eliminate common equipment failures, ensure durability with industrial grade hardware, and simplify troubleshooting. The IS30 keeps you up and running every single day, and now with Automatic Viscosity Control, you'll spend more time spraying with true ratio assurance. Simple, Intuitive Display • Brilliant, Full-color 10" Display • Touchscreen with intuitive pull-down menus • Intuitive interface makes operation a breeze • Field-tested components • Engineered...

 Open the catalog to page 2
