Sand Moisture Measurement BTS-WIN

Product catalog summary

Overview of BTS-WIN Moisture Meter:
The BTS-WIN is a moisture meter designed for continuous moisture measurement in sand and aggregates, crucial for maintaining concrete quality in industrial production. It features four measuring points per instrument, utilizing either conductivity or microwave sensors, and operates effectively within a temperature range of +1 to +60°C. The device displays moisture levels from 1% to 20% and allows for manual output of moisture data.

Specifications:

Microwave Sensors: Used for moisture measurement in silos and on conveyor belts. They operate at a frequency of 433 MHz, with an output range of 0-20 mA and a power supply requirement of 15-24 V DC. The moisture range is 0-18% in silos and 0-20% on belts, with a measuring accuracy of +/- 0.3%.
Conductivity Sensors: These sensors are also used for moisture measurement on belts and in silos, with similar output and power supply specifications as microwave sensors. They measure moisture in the range of 0-20% with an accuracy of +/- 0.3%.

Sensor Dimensions:

Microwave Pipe Sensor: Diameter 55 mm, length 450 mm, with mounting attachment dimensions of WHD110 x 120 x 130 mm.
Microwave Belt Sensor: Length from fixation 260 mm, total length 500 mm, requiring a minimum material height of 60 mm on the belt.
Conductivity Belt Sensor: Length from fixation 200 mm, with a distance of approximately 150 mm between sensors, requiring a minimum material height of 50 mm on the belt.
Conductivity Pipe Sensor: Diameter 55 mm, length 450 mm, with mounting attachment dimensions of WHD110 x 120 x 130 mm.

Contact Information:
Bikotronic GmbH, Im Hohen Acker 7, 67146 Deidesheim, Germany. Tel.: +49 6326 96530, Fax: +49 6326 965350, Website: www.bikotronic.de, Email: [email protected]

Catalog excerpts

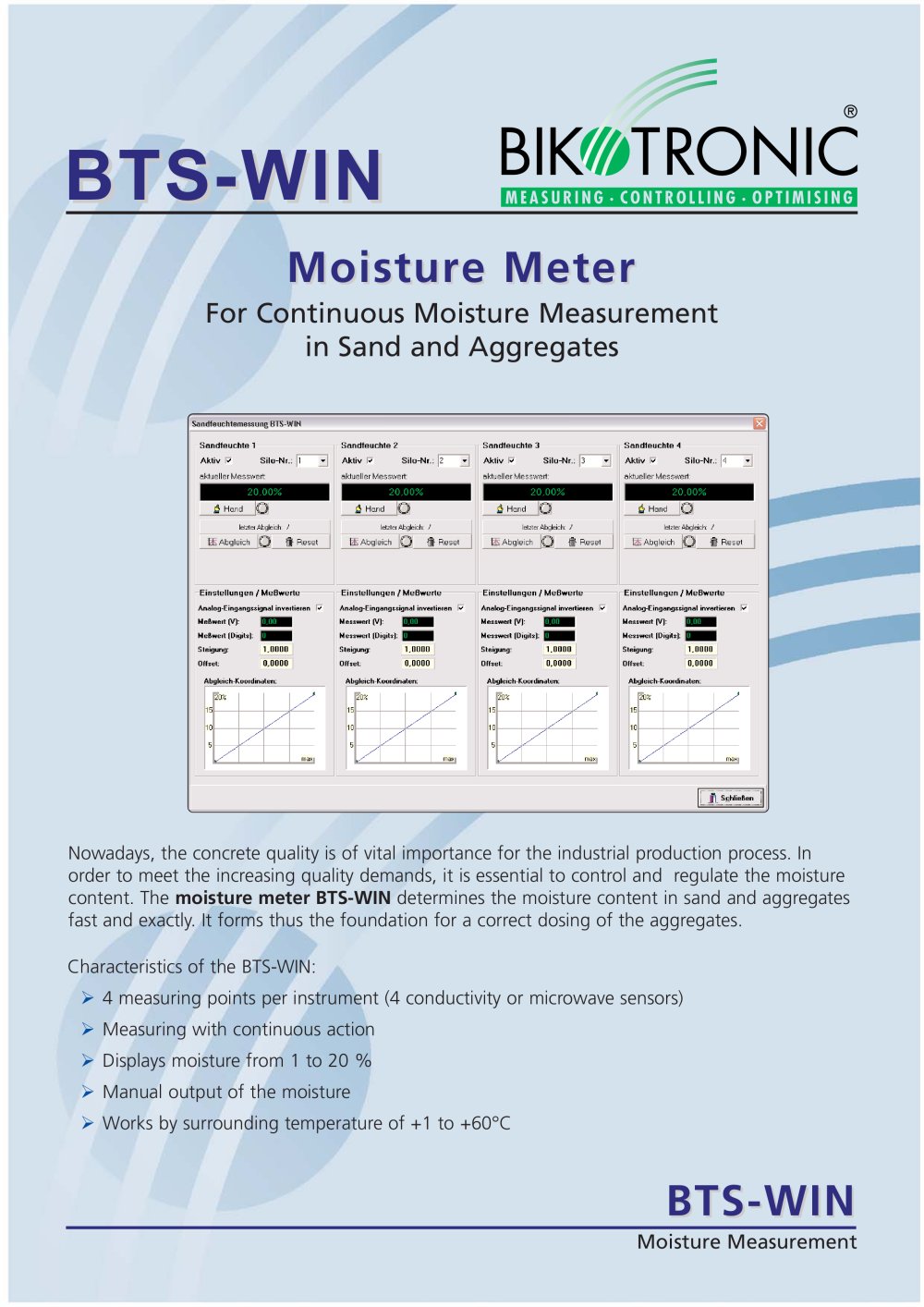

MEASURING • CONTROLLING • OPTIMISING Moisture Meter For Continuous Moisture Measurement Sandfeuchtemessung BTS-WIN aktueller Messwert: Einstellungen / MeBwerte- Analog-E ingangssignal invertieren MeBwert (Digits): aktueller Messwert: aktueller Messwert: ^Abgleich |jL=j j Reset aktueller Messwert: letzter Abgleich: / Einstellungen / MeBwerte Einstellungen / MeBwerte Analog-Eingangssignal invertieren F Analog-Eingangssignal invertieren ✓ Einstellungen / MeBwerte Nowadays, the concrete quality is of vital importance for the industrial production process. In order to meet the increasing quality demands, it is essential to control and regulate the moisture content. The moisture meter BTS-WIN determines the moisture content in sand and aggregates fast and exactly. It forms thus the foundation for a correct dosing of the aggregates. > 4 measuring points per instrument (4 conductivity or microwave sensors) > Measuring with continuous action > Displays moisture from 1 to 20 % > Manual output of the moisture > Works by surrounding temperature of +1 to +60°C Moisture Measurement
