Modular High Precision Converting Machine

Modular High Precision Converting Machine
1 / 2 PagesView full catalog

Modular High Precision Converting Machine

Product catalog summary
Overview: The HP-RDC is a high-performance rotary die cutting system designed for flexible material conversion. It integrates multiple cutting and processing technologies to enhance efficiency and precision.
Main Features:
  • Cutting Technologies: Includes flying cut knife, in-line slitter, rotary die cutting, and rotary kiss cutting.
  • Integration Capabilities: Laser system integration, web defect detection, and heated shaft integration up to 200°C.
  • Material Handling: Supports web widths from 180 mm to 650 mm, with roll cores of 76 mm diameter and maximum roll diameter of 500 mm, expandable to 1000 mm.
  • Speed and Control: Operates at speeds up to 100 m/min with automatic web edge guide and tension control.
  • User Interface: Features a user-friendly interface with multilevel password protection for work and maintenance access.
  • Inspection and Synchronization: Equipped with inspection camera integration and cutting station synchronization via sensor edge/mark reading.
Technical Specifications:
  • Main Frame: Integrates an electric cabinet with an aluminum surface and pneumatic expanding shaft spindles.
  • Idle Rolls: Equipped with load cells for precise tension measurement.
  • Motorization: Each station is independently motorized by brushless motors.
Company Background: Biko Meccanica has over 40 years of experience in designing and manufacturing machinery for converting flexible materials. The company exports 90% of its products and is expanding into new industrial sectors, including filter lamination and electric mobility products.
Contact Information: Biko Meccanica Srl, via Pacinotti 105, 30020 Pramaggiore (VE) — Italy. Phone: +39 0421 200024. Email: [email protected]. Website: www.biko.it
See more

Catalog excerpts

Modular High Precision Converting Machine-1

HP-RDC High-Performance Rotary Die Cutting System Compact System Configurable Unit Sequence Expandable to Meet Application Needs ROTARY KISS CUTTING HEATED SHAFT INTEGRATION UP TO 200 °C CUT WASTE/ TRIM REMOVAL PART SIZE TOLERANCE CONTROL IN-LINE SLITTER LINER/ CARRIER CHANGE ISLAND PLACEMENT LASER SYSTEM INTEGRATION

 Open the catalog to page 1
Modular High Precision Converting Machine-2

Up to 100 m/min (300 ft/min) Web Speed Ro s °°r®. Inspection Camera Integration 76 mm (3 ) dia. f Defect and Part size Friendly User Interface Multilevel Password for Work and Maintenance Parameters Access Automatic Web Tension Measuring & Control and Parameter available on HMI Idle Rolls Equipped with Load Cells Pneumatic Expanding Shaft Aluminum Spindles Surface Independently Motorized ' by Brushless Motors Cutting Station Synchronization via Sensor Edge/Mark Reading Single Parts Creation and Conveying Extensions Available for Bigger Diameter Rolls, up to 1000 mm (40“) For over 40 years, BIKO...

 Open the catalog to page 2

All Biko Meccanica Srl catalogs and technical brochures

  1. Flatbed Die-Cutting Machine
    Flatbed Die-Cutting Machine

    2  Pages

  2. Kiss-Cutting Machine
    Kiss-Cutting Machine

    2  Pages

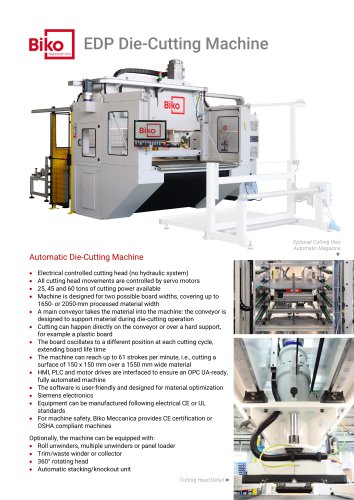

  3. Die-Cutting Traveling Head
