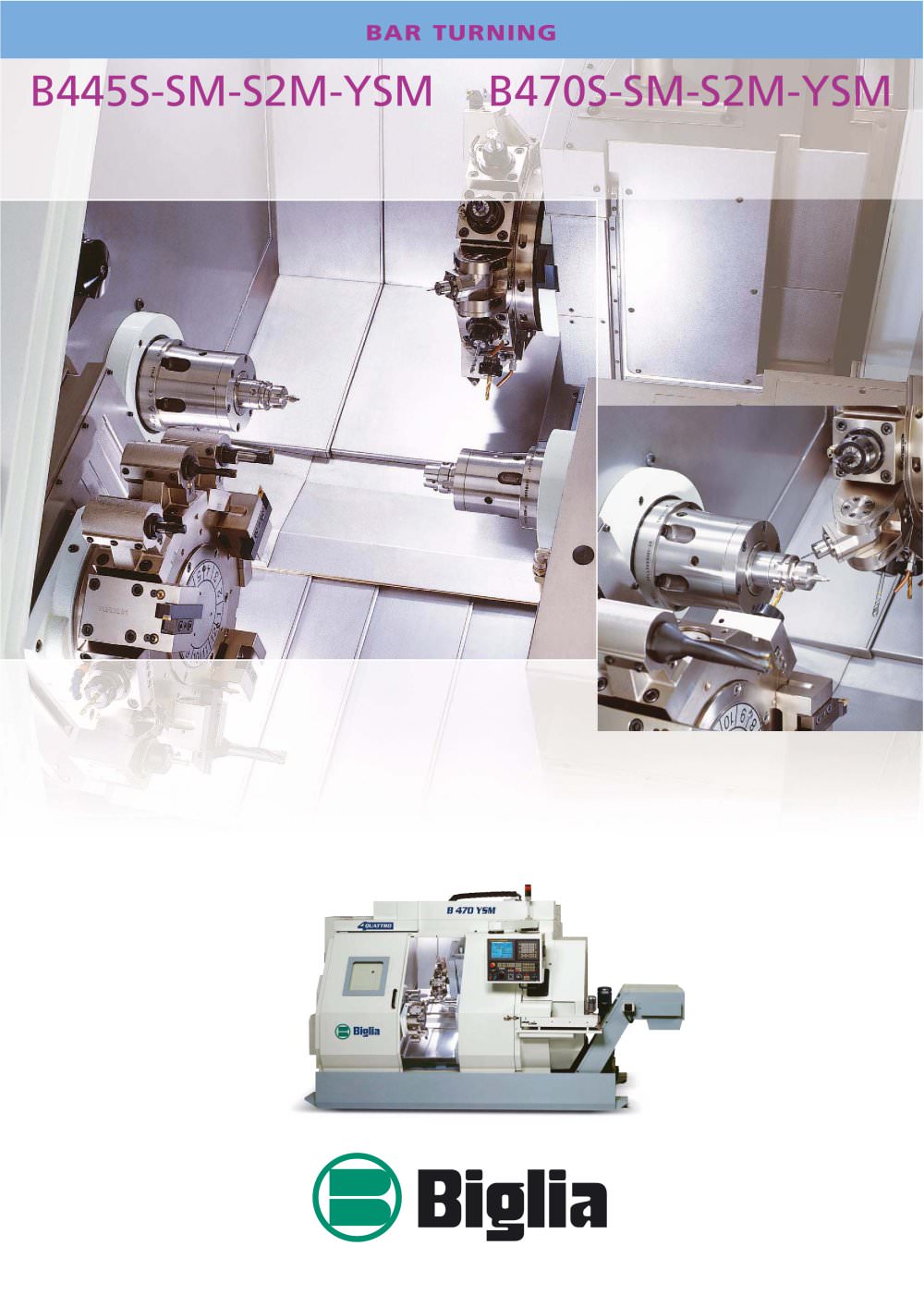

B445 S 2 turrets, 2 spindles
16Pages

The QUATTRO range ofdouble-spindle machining centres is suitable for barmachining.The main performancebenefits offered by the30-degree slant bed, the largely proportioned guides and turrets are: - Reduction of cycle times- Great rigidity allowing tomachine tough materials- Up to 30 tools available formachining of complex partsand reduced set-up times - Ergonomics and easy accessfor retooling operations- Perfect removal of chippingsThe modular design allows awide range of customized configurations to be offered, resulting in extremely efficient and flexible production of simple to complex...

The QUATTRO turning centresavailable in four configurationsfeaturing 45-65-80 mm bar capacityare prepared to meet with every application requirement.Models available: Quick cyclesՕ Double productivity Finished parts B445/B470 S > 2 turrets, 2 spindles B445/B470 SM > 2 turrets (one with live tooling)2 spindles (one equipped with C-axis) B445/B470 S2M > 2 turrets equipped with live tooling 2 spindles featuring C-axis B445/B470 YSM > 2 turrets equipped with live tooling 2 spindles featuring C-axis Y-axis on the upper turret size="-1">

STANDARD FEATURES - 30-degree slant cast-iron bed- Cartridge spindles - 12-station BIGLIA servo-turrets - Sub-spindle with axial traverse - Bar-feeder interface - Rigid tapping - Automatic parts-catcher - Finished parts conveyor - Sub-spindle equipped with ejectorand air blow- Chip conveyor - Coolant system featuring 7 barpumps and filters- Two colour alarm lamp- Electrical cabinet - air conditioned OPTIONAL FEATURES - Tool probing system- High-pressure pump (18 bar)- Fume exhauster- Polygon turning- SBS tool load monitoring system- BIGLIA EASY CYCLESӔ POLYGON TURNING This optional feature...

BAR MACHINING UP TO 80 mm The QUATTRO turning centres are available with 45-65 and 80 mm bar capacity. > 46 67 踘 82 SUB-SPINDLE TO HOLD THE COMPONENT The sub-spindle can also be used as a regular tailstock to hold the component. The sub-spindle axis thrust (B-axis) is programmed according to machining requirements. Turning with tailstock to hold the component.Turning operation with pushed-back tailstock. 8 - 9 >

MANUAL GUIDE: QUICK AND EASYFOR PROGRAM RELIABILITY The innovative MANUAL GUIDEsoftware package provides operatorswith access to a very simple anduser-friendly graphics interface, strong editingӔ functions and offers a wide selection of machining cycles (turning, milling and drilling). This system allows the execution of even the most complex programs withease of operation. The 3D simulationfacilitates the checking of programmes before machining operations. CNC UNIT CNC unit mod. Fanuc 18 i-T:- 10.4 colour liquid crystaldisplay- Alphanumeric full-keyboard - Biglia operator panelfeaturing...

H > TOOLING SYSTEM H Double tool-holder 20x2010.57.76.00 Frontal tool-holder 20x2041.03.19.00 Cut-off tool holder 25x2510.57.95.00 Tool-holder 20x2010.57.60.00 Cut-off tool holder 20x2010.57.77.00 Tool-holder 20x20for lower turret 10.88.02.00 Boring bar holder 3210.57.74.00 Boring bar ؘ32 and tool-holder 20x2010.57.91.00 Tapping collets ER 20T170 - 00XXX M 4 min.M 12 max Tapered reduction bush MT1= 41.14.01.092= 41.14.01.083= 41.14.01.07Collet holder ER 2041.34.02.00Bar-stopper41.07.02.10Reduction bush41.14.10.01 - 12 41.14.10.02 - ؘ 16 41.14.10.03 - 2041.14.10.04 - ؘ 25 U-drill Tap Drill...

Collet ER32T170-00XXX min. 1 mm ؘ max 20 mmTapping collets ER32T170-00XXX M 4 min. M 20 max T134-00071 ER32 > H H=108 T134-0002612000 rpm Collet ER25 T170-00XXX min. 1 mmؘ max 10 mmTapping collets ER25T170-00XXXM 3 min. M 10 max > H H=70 T134-00060 Axial live-spindle8000 rpm T134-0002712000 rpmT134-00070 Axial live spindle, double > Collet ER16T170-00XXX min. 1 mmؘ max 10 mmTapping collets ER16T170-00XXX M 3 min.M 10 max Double boring bars 25and tool-holder 20x2010.57.94.00 Only for B445YSM - B470YSM With internal coolant Radial live spindle, double 41.32.30.00 Radial...

TECHNICAL SPECIFICATIONS MACHINE TYPE B445 SB445 SMB445 S2MB445 YSM MACHINING CAPACITY Bar capacitymm45454545 Max. machining diametermm240240240240 Max. machining lengthmm250 (320)250 (320)250 (320)250 (320) Max. swing over diametermm520520520520 MAIN SPINDLE Max. speedrpm5000500050005000 Spindle noseASA5"5"5"5" Spindle boremm55555555 Inside diam. of bearingsmm80808080 Chuck diametermm165/210165/210165/210165/210 Motor powerkW15151515 C-axis:least input valuedeg-0,0010,001а0,001 SUB-SPINDLE Max. speedrpm5000500050005000 Spindle noseASA5"5"5"5" Spindle boremm55555555 Drawtube inside...

TECHNICAL SPECIFICATIONS MACHINE TYPE B470 SB470 SMB470 S2MB470 YSM MACHINING CAPACITY > Bar capacitymm65 (80)65 (80)65 (80)65 (80) Max. machining diametermm240240240240 Max. machining lengthmm250 (320)250 (320)250 (320)250 (320) Max. swing over diametermm520520520520 MAIN SPINDLE Max. speedrpm4000 (3200)4000 (3200)4000 (3200)4000 (3200) Spindle noseASA6" (8")6" (8")6" (8")6" (8") Spindle boremm80 (92)80 (92)80 (92)80 (92) Inside diam. of bearingsmm110 (130)110 (130)110 (130)110 (130) Chuck diametermm165/210165/210165/210165/210 Motor powerkW26262626 C-axis:least input...

SMART TURN 1200 SMART TURN 1200S > SPECIFICATIONS CONTAINED HEREIN ARE APPROXIMATE OFFICINE E. BIGLIA & C. SPA ɕ I-14045 INCISA SCAPACCINO (AT)TEL.: +39 0141 7831 FAX: +39 0141 783327 Օ www.bigliaspa.it biglia@bigliaspa.it A017-00065 size="-3">
