BIG DAISHOWA
BDV/DV Shank

BDV/DV Shank

Product catalog summary

Overview

This document provides comprehensive technical specifications, model descriptions, accessory details, and operational guidelines for the MEGA series and BIG-PLUS tooling components. It covers a wide range of tool holders, chucks, collets, adapters, angle heads, tapping holders, air turbine spindles, and related accessories designed for high precision, rigidity, and high-speed machining applications compliant with DIN 69871 A/B standards.

1. Product Range and Types

MEGA Series Tool Holders and Chucks: Includes MEGA MICRO CHUCK, MEGA NEW BABY CHUCK, MEGA E CHUCK, MEGA DOUBLE POWER CHUCK, MEGA ER GRIP, and MEGA SYNCHRO tapping holders, optimized for various machining needs from micro-diameter tools to heavy milling.
Accessories: MEGA NUT, MEGA WRENCH, ADJUSTING SCREW, SEALING NUT, COOLANT-THROUGH HOLE components, protective cases, and taper cleaners.
Other Components: FACE MILL ARBOR, ANGLE HEADS, AIR TURBINE SPINDLES, HIGH SPINDLE, Hi-JET HOLDER, DYNA TEST devices.

2. Technical Specifications

Clamping Range: From micro sizes (ø0.25 mm) up to large diameters (ø42 mm), varying by model.
Maximum Rotational Speed: Ranges between 9,000 min-1 and 80,000 min-1 depending on component type and size.
Dimensions and Weight: Detailed length, diameter, and weight data provided for each model to assist in selection.
Standards Compliance: All components conform to DIN 69871 A/B (BIG-PLUS) standards with dual contact spindle systems for enhanced rigidity and precision.

3. Design Features and Benefits

Dual Contact Spindle System: Provides flange and taper contact for superior rigidity and machining accuracy.
Coolant-Through Capability: Many models support coolant delivery through the tool holder to improve tool life and machining quality.
Micro Diameter Designs: Enable high-speed machining in confined spaces with small diameter tools.
Wide Size and Length Variations: Support diverse machining operations from micro drilling to heavy end milling.

4. Model Families and Key Parameters

MEGA MICRO CHUCK Series: Clamping range ø0.45 - ø6.05 mm, max speed up to 35,000 min-1.
MEGA E CHUCK Series: Clamping range ø3 - ø12 mm, max speed up to 30,000 min-1.
MEGA DOUBLE POWER CHUCK Series: Clamping range ø16 - ø42 mm, max speed up to 25,000 min-1, with coolant-through holes and flange contacting nuts.
NEW BABY CHUCK Series: Clamping range ø0.25 - ø20 mm, max speed up to 20,000 min-1, designed for high precision.
MEGA ER Grip System: Clamping range ø1.9 - ø20 mm, max speed up to 35,000 min-1, coolant-through holes available.
Tapping Holders (BDV40/50-MGT): For rigid tapping, covering metric threads M2 to M20, max speed up to 35,000 min-1.
Angle Heads (NEW BABY CHUCK): Provide high rigidity and accuracy with adjustable positioning pins and fixed spindle angles at 90°, max speeds up to 6,000 min-1.
Air Turbine Spindles: High-speed micro machining up to 80,000 min-1, for tool diameters up to 1.5 mm.

5. Accessories and Spare Parts

Wrenches, adjusting screws, sealing nuts, coolant-through components, protective cases, taper cleaners, and exclusive stop blocks for angle heads and air turbine spindles.
Collets and nuts must often be ordered separately; use only BIG-manufactured collets and nuts with BIG chuck bodies to maintain accuracy.

6. Usage Recommendations and Limitations

Adhere strictly to maximum rotational speeds and coolant pressure limits (generally max 2 MPa) to ensure safety and tool longevity.
Use exclusive stop blocks for angle heads and air turbine spindles to prevent damage and ensure correct positioning.
Coolant-through features are recommended for high-speed and heavy-duty machining to improve cooling and chip evacuation.
Do not use neat oil coolant with air turbine spindles due to fire risk.
Proper assembly using specified wrenches and adjusting screws is critical to maintain precision and avoid damage.
BIG-PLUS tooling is compatible with machining centers equipped with conventional spindles.

7. Standards and Compliance

All components conform to DIN 69871 A/B (BIG-PLUS) standards ensuring interchangeability, reliability, and enhanced rigidity via dual contact spindle systems.
Tapping holders comply with DIN and ISO standards for thread sizes and tapping ranges.

8. Summary of Critical Parameters

Component	Clamping Range (mm)	Weight (kg)	Max Speed (min-1)	Notes
Milling Chucks (FK Series)	20 - 42	1.6 - 7.4	Not specified	Adjusting screws ordered separately; coolant-through available
MEGA ER Grip	1.9 - 20	Varies	Up to 35,000	Use only BIG collets and nuts; balance screws not included
Tapping Holders (BDV40/50-MGT)	M2 - M20 threads	1.4 - 4.2	Up to 35,000	Rigid tapping requires machine support; coolant-through flange standard
Angle Heads (NEW BABY CHUCK)	Collet sizes 6 - 20	5.1 - 14.2	Up to 6,000 (small collets), 3,000 (large collets)	Exclusive stop block required; adjustable positioning pin angles
Air Turbine Spindles	Up to 1.5 mm tool diameter	3.1 - 9.7	Up to 80,000	Clean compressed air required; coolant through spindle prohibited

9. Safety and Best Practices

Always use exclusive stop blocks for angle heads and air turbine spindles to prevent tool slippage and damage.
Do not use neat oil coolant with air turbine spindles to avoid fire hazards.
Order and use correct collets, nuts, and accessories as specified to maintain precision.
Adhere to specified speed and coolant pressure limits to ensure tool integrity and machining accuracy.

Conclusion

The MEGA series and BIG-PLUS tooling components provide a versatile, high-precision, and rigid solution for a broad spectrum of machining applications, from micro machining to heavy milling. The modular design, compliance with international standards, and availability of coolant-through options enhance machining performance and tool life. Proper selection, assembly, and adherence to operational guidelines are essential for optimal results and safety.

Catalog excerpts

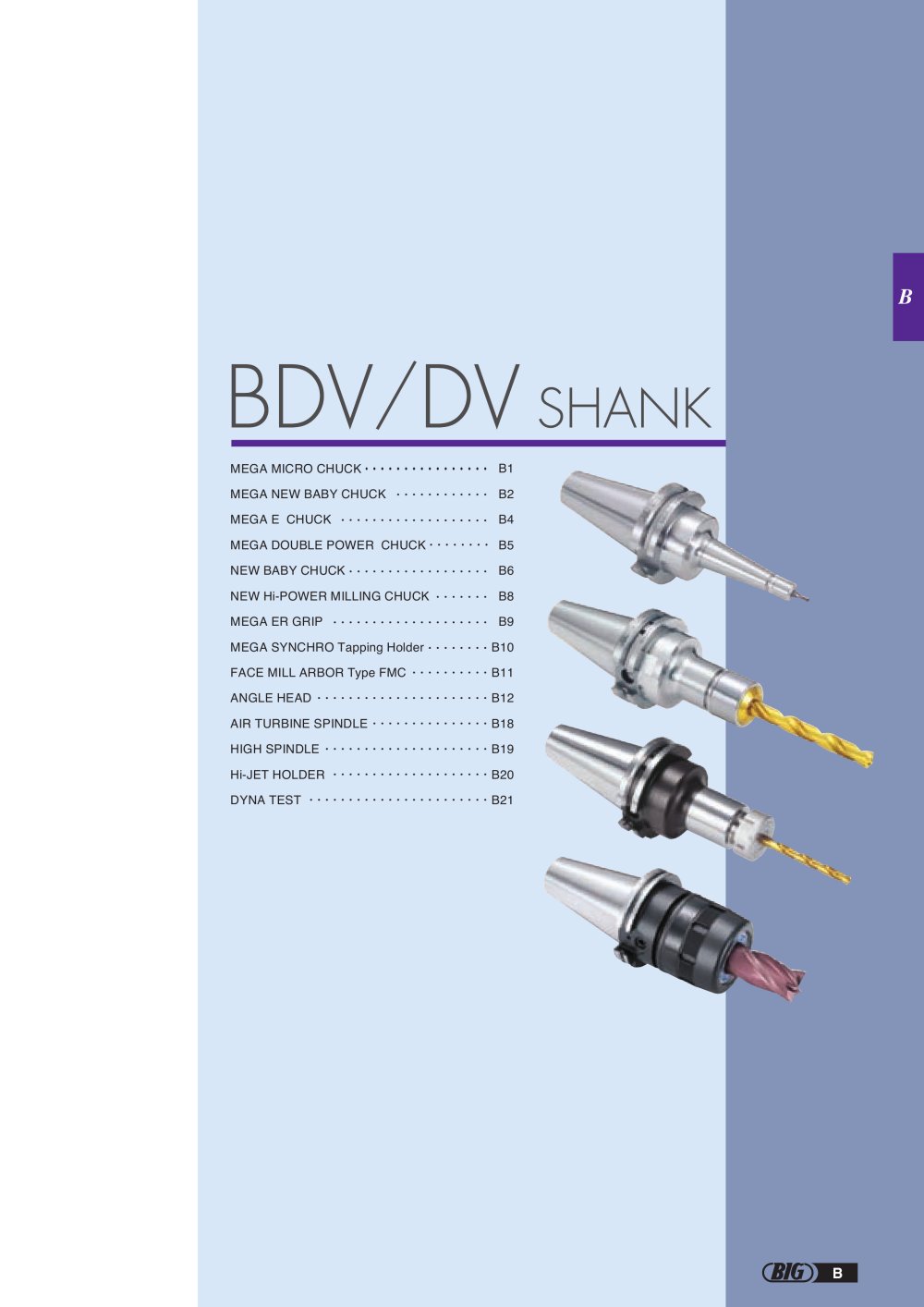

BDV/DV SHANK

Open the catalog to page 1

R S P I N D L E DUAL S Y S T E M DIN 69871 A (BIG-PLUS) CONTACT Coolant-through hole R Clamping Range : ø0.45 - ø6.05 Type T Micro diameter design is ideal for high speed applications in tight areas with small diameter cutting tools. MAX. 35,000 min-1 L B BDV No. ød BDV / DV SHANK øD L1 BIG-PLUS tools can be used in machining centers with conventional spindles. Model BDV40-MEGA3S- 60T - 90T -120T -MEGA4S- 60T - 90T -120T -MEGA6S- 60T - 90T -120T Clamping Range ød øD 0.45 - 3.25 10 0.45 - 4.05 12 0.45 - 6.05 14 L L1 60 90 120 60 90 120 60 90 120 30 60 90 30 60 90 30 60 90 35,000 28,000 22,000...

Open the catalog to page 2

R S P I N D L E DUAL S Y S T E M CONTACT DIN 69871 (BIG-PLUS) ANGLE HEAD Spindle head is equipped with a short taper for quick changing of various adapters. AG90 BUILD-UP type [STANDARD TYPE] 230 10 65 ø125 45 Gage Line for AG35 Adapters 45 45 0 ø38.1 6 Collar Compression 3 Pin Compression Fixed Length A 10 2 100 S=110 R21 Draw Bar 97 Exclusive STOP BLOCK for ANGLE HEAD is required. MAX.3,000 min-1 BIG-PLUS tools can be used in machining centers with conventional spindles. The cutter rotates in the same direction of the machine spindle. Model Weight (kg) BDV50-AG90/AGH35-230 15.0 1. The standard...

Open the catalog to page 14

R S P I N D L E DIN 69871 (BIG-PLUS) S Y S T E M CONTACT ADAPTER SERIES NEW BABY CHUCK L Model L øC øF 1.5 - 10 2.5 - 13 2.5 - 16 2.5 - 20 AG35-NBS10 -NBS13 -NBS16 -NBS20 øC ød ød 47 30 35 42 46 162 168 54 Collet and wrench must be ordered separately. 170 Weight (kg) 0.6 0.7 0.8 0.9 For NEW BABY COLLET G For WRENCH A L 3 15 NEW HI-POWER MILLING CHUCK ød ød L øC øF AG35-HMC20S øC Model 20 60 50 178 Wrench(FK45-50L) is included. L H For STRAIGHT COLLET G F2 Tension (forward) AUTO TAPPER TYPE B (Automatic depth control) F3 Tension (reverse) Model d L øC H F1 F1 Compression d Tap Collet AG35-ATB12E...

Open the catalog to page 15

R S P I N D L E DUAL S Y S T E M CONTACT DIN 69871 (BIG-PLUS) ANGLE HEAD Improved versatility is achieved from the 32mm capacity Milling Chuck by using parallel reduction collets and other accessories. AG90 HMC type [STANDARD TYPE] 230 45 100 65 ø32 45 Min.Access Bore ø175 ø125 45 ø80 S=110 R 21 97 6 Collar Compression 3 Pin Compression Fixed Length A Exclusive STOP BLOCK for ANGLE HEAD is required. MAX.3,000 min-1 BIG-PLUS tools can be used in machining centers with conventional spindles. The cutter rotates in the same direction of the machine spindle. Model Weight (kg) BDV50-AG90/HMC32-230...

Open the catalog to page 16

R S P I N D L E DIN 69871 (BIG-PLUS) DUAL S Y S T E M CONTACT High rigidity bearings and substantial spindle design. Max. power transmission 20Kw. (at 1,500min-1) SPINDLE ANGLE : 90˚ (ø80) Clamp Bolt 38.5 38.5 (117) 9.35 Min. bore ø206 ss for acce S=110 76.5 22 ø25.4 57 R21 6 Collar Compression 3 Pin Compression Fixed Length A MAX.1,500 min-1 Simple 90 indexing of the cutter direction. (Accuracy Exclusive STOP BLOCK for ANGLE HEAD is required. BIG-PLUS tools can be used in machining centers with conventional spindles. The rotation of the cutting tool is in reverse direction of the machine spindle....

Open the catalog to page 17

R S P I N D L E DUAL S Y S T E M CONTACT DIN 69871 (BIG-PLUS) ANGLE HEAD Suitable for all cutting angles. In addition to the cutter head being adjustable a full 360˚, the spindle also becomes easily and precisely adjustable from 0˚ to 90˚ by 1˚ increments. UNIVERSAL type SPINDLE ANGLE : 0˚ to 90˚ L L1 B L2 F øE BDV / DV SHANK C1 ø97(#40) ø125(#50) C2 AGU S ød øD M 6 Collar Compression(#50 Only) 5(#40), 3(#50) Pin Compression Fixed Length A BIG-PLUS tools can be used in machining centers with conventional spindles. Exclusive STOP BLOCK is required. The rotation of the cutting tool is in reverse...

Open the catalog to page 18

R S P I N D L E DIN 69871 (BIG-PLUS) DUAL AIR TURBINE SPINDLE S Y S T E M CONTACT MAX. Machine Spindle Rotation= 0 High-speed Micro-Machining can be done on a normal machining center, eliminating the need of an expensive high-speed machine. 80,000 min-1 Relation between Spindle speed and air pressure (Reference) 90,000 80,000 70,000 60,000 - 80,000 40,000 - 50,000 66,000 60,000 58,000 50,000 40,000 B 50,000 47,000 43,000 38,000 30,000 0.3 0.4 0.5 0.6 Air pressure (MPa) CENTER THROUGH Type For compressed air through the machine spindle. BDV / DV SHANK ø0.45 - ø4.05mm (MEGA4S) Less than 1 m Less...

Open the catalog to page 19

R S P I N D L E DUAL S Y S T E M CONTACT DIN 69871 (BIG-PLUS) HIGH SPINDLE GTG Type Higher spindle speeds are available without excessive load on the machine spindle. MAX. L 20,000 B 0.01 L1 K1 min-1 BDV No. øD1 S ød BDV / DV SHANK øD2 4D ø18 COOLANT Fixed Length H Exclusive STOP BLOCK is required. BIG-PLUS tools can be used in machining centers with conventional spindles. Model ød L L1 øD1 øD2 K1 S Collet Speed Ratio Weight (kg) BDV40-GTG5-10-155 BDV50-GTG6-10-163 -GTG4-16-182 Max. min-1 1.5 - 10 1.5 - 10 2.5 - 16 155 163 182 20 20 25.5 30 30 42 80 100 110 58 63 63 65 80 80 NBC10 NBC10 NBC16...

Open the catalog to page 20

DIN 69871 Hi-JET HOLDER NEW BABY CHUCK Type Suitable for small diameter drills, gun drills and end mills due to high precision New Baby Chuck. L øC1 øD ød B Baby Perfect Seal (optional) Fixed Length H Exclusive STOP BLOCK is required. Model ød DV40-ONBS13N-165 ONBS16N-165 -ONBS20N-165 DV50-ONBS13N-165 ONBS16N-165 -ONBS20N-165 øD 2.5 - 13 2.5 - 16 2.5 - 20 2.5 - 13 2.5 - 16 2.5 - 20 35 42 46 35 42 46 L øC1 165 81.6 165 99.6 øC2 S 73 Collet NBC13 NBC16 NBC20 NBC13 NBC16 NBC20 65 80 80 80 1. The standard Fixed Length H is 6mm. 2. Wrench, Collet and Adjusting Screw are optional items. 3. Max. coolant...

Open the catalog to page 21

DIN 69871 Hi-JET HOLDER SIDE LOCK Type Suitable for popular straight shanks with flat. L ød øD øC2 øC1 DV No. S B BDV / DV SHANK Fixed Length H Exclusive STOP BLOCK is required. Model ød DV40-OSL16N-150 -OSL20N-150 -OSL25N-165 -OSL32N-165 DV50-OSL16N-150 -OSL20N-150 -OSL25N-165 -OSL32N-165 -OSL40N-165 -OSL50N-185 16 20 25 32 16 20 25 32 40 50 1. The standard Fixed Length H is 6mm. L øD 150 48 165 58 150 48 58 64 84 165 185 2. Max. coolant pressure is 2MPa. 99.6 80 99.6 121 129.6 For LOCATING PINS G 27 MES-65 MES-50 6,000 80 98 MES-65 MES-90 MERIT SET Please do not use with neat oil coolant. Using...
