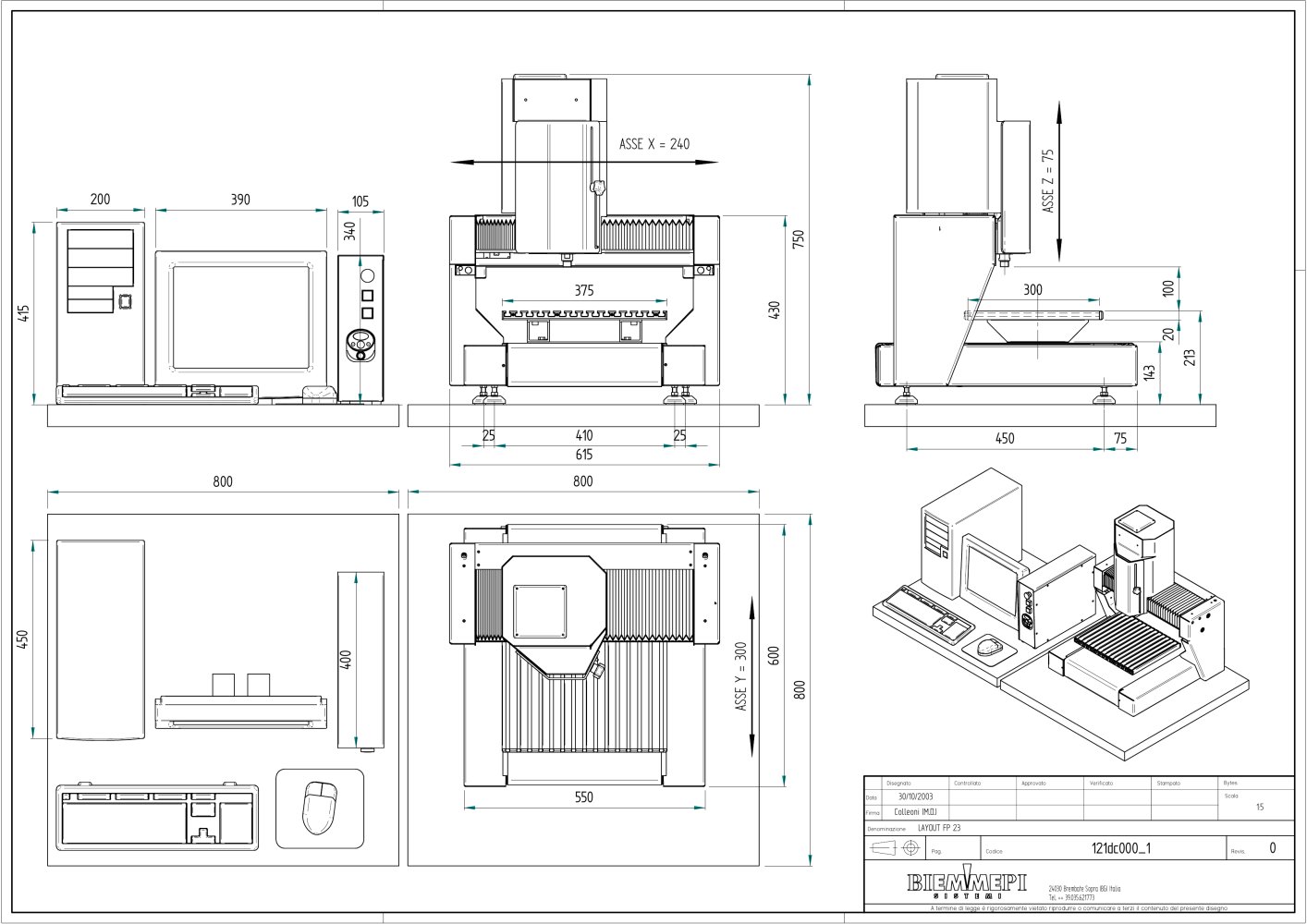

Document Overview: This technical document appears to be a mechanical or engineering drawing layout labeled "LAYOUT FP 23" with a scale of 1:5. The drawing includes various dimensional specifications and annotations, likely related to component or assembly measurements.

1. Dimensional Specifications

• Key dimensions are indicated as follows: X = 240, Y = 300, Z = 75.
• Additional measurements include values such as 375, 300, 75, 0, 600, 550, 615, 20, 340, 415, 200, 105, 800, 40, 45, 390, 430, 25, 410, 25, 75450, 10, 0, 21, 3, 14, 3, 800, 80, 0. These likely correspond to lengths, widths, heights, or positional coordinates.

2. Document Metadata

• Date: October 30, 2003
• Designer: Colleoni (M.D.)
• Scale: 1:5
• Location: Brembate Sopra (BG), Italy
• Contact: Tel. ++39.035.621773

3. Legal Notice

The document explicitly states that reproduction or communication of its content to third parties is strictly prohibited by law.

4. Layout and Format

The document includes fields for signatures and approvals such as "Firma," "Disegnato," "Controllato," "Approvato," and "Verificato," indicating a formal review and approval process.

Summary

This document is a technical layout drawing with detailed dimensional data and formal metadata. It is intended for internal use with strict confidentiality. The dimensions and annotations provide critical parameters for manufacturing or assembly processes, while the metadata ensures traceability and compliance with company standards.
