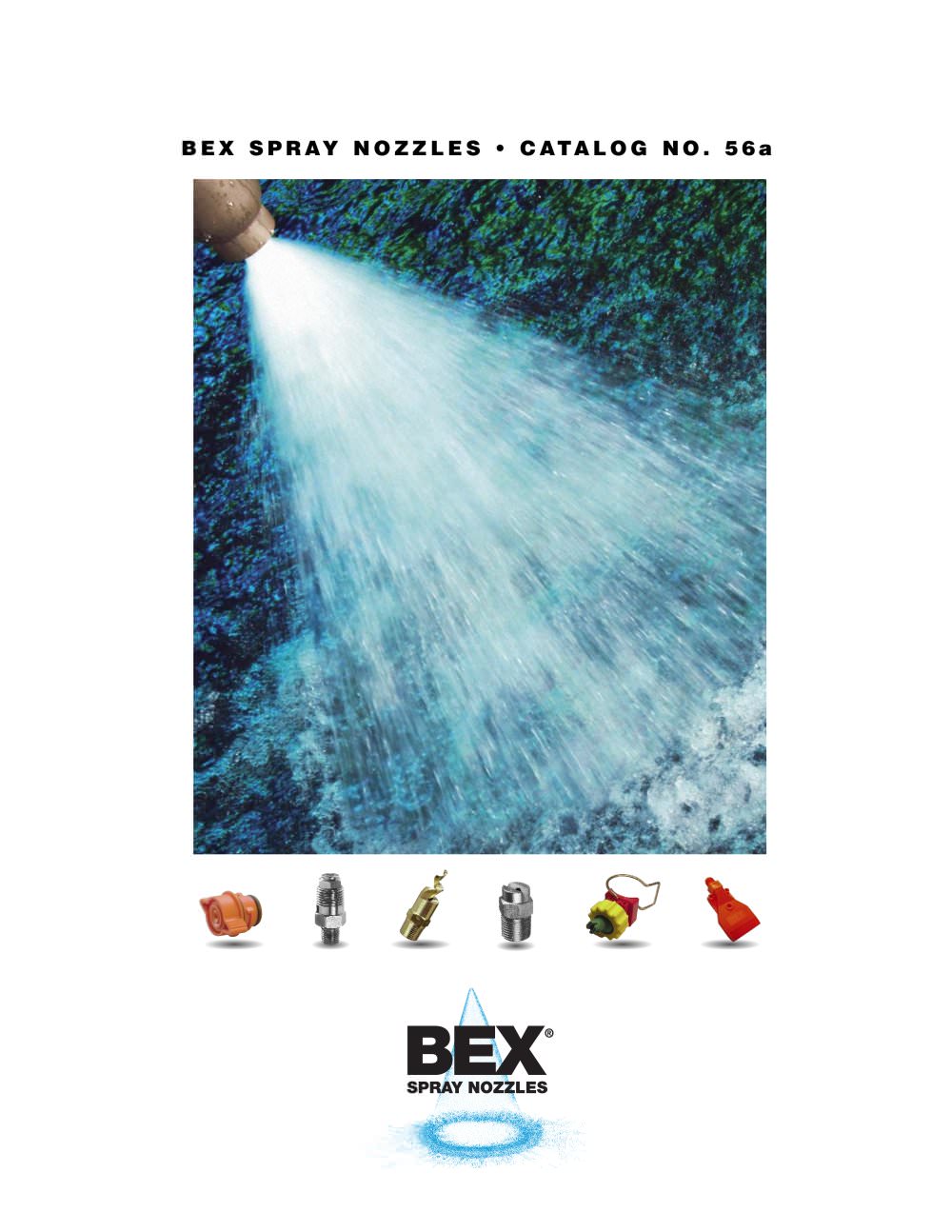

catalog 56

catalog 56

Product catalog summary

Introduction
This catalog introduces new features to assist in selecting the appropriate spray nozzle for various applications. BEX has over 40 years of experience in designing and developing spray nozzles, offering fast delivery and competitive pricing.

Expanded Engineering Section
The catalog includes more engineering data to aid in selecting the right nozzle, with color-coded K-Ball Flat-V Spray Balls and Plastic Zip-Tips for easier identification.

Featured Products
Highlighted products include the All Teflon TWK Rotating Nozzle, 150 & 300 Full Cone Spray Nozzle, Mini Eductors, and Split Eyelets.

Technical Information
The catalog provides detailed information on nozzle selection, technical specifications, conversion factors, and common causes of nozzle problems.

Nozzle Construction
Key elements include assembly configuration, spray pattern, flow rate, connection size, physical dimensions, and material of construction. Various materials are available, such as Brass, Stainless Steel, Hastelloy, Titanium, and more.

Spray Characteristics
Spray characteristics are defined by spray pattern, flow rate, atomization, and spray angle. The catalog provides detailed descriptions and theoretical coverage for different spray angles.

Connection Types
BEX nozzles offer various connection styles, including NPT and BSPT threads, quick disconnect styles like BEX Zip-Tip, and clip-on K-Ball series.

Impact and Spray Coverage
Spray impact is calculated using specific formulas, and theoretical coverage is provided for various spray angles and distances.

Preventing Nozzle Problems
Recommendations include monitoring nozzle performance, cleaning regularly, and selecting appropriate materials to prevent issues like corrosion, erosion, and clogging.

Common Causes of Nozzle Problems
Issues such as corrosion, temperature damage, erosion, clogging, and mechanical damage are discussed, with solutions provided.

Useful Conversion Factors
The catalog includes conversion factors for volume and pressure to assist in calculations.

Conversion Factors:
- Pressure: 1 N/m² = 1.02 Kg/cm²; 1 foot head (water) = 0.433 psi.
- Flow Rate: 1 U.S. gallon per minute = 0.1337 ft³/min = 3.785 l/min.
- Volume: 1 ft³/sec = 0.02832 m³/sec = 28.32 l/sec.
- Length: 1 in = 25.4 mm; 1 ft = 0.3048 m; 1 mile = 1.609 km.

Volumetric Units – Equivalents:
- Cubic Centimeter: 0.034 Fluid Ounce, 2.2x10^-3 Pound of Water, 0.001 Liter, 2.64x10^-4 US Gallon, 3.53x10^-5 Cubic Foot, 1.0x10^-6 Cubic Meter.
- Fluid Ounce: 29.4 Cubic Centimeters, 0.065 Pound of Water, 0.030 Liter, 7.81x10^-3 US Gallon, 1.04x10^-3 Cubic Foot, 2.96x10^-5 Cubic Meter.
- Pound of Water: 454 Cubic Centimeters, 15.4 Fluid Ounces, 0.454 Liter, 0.12 US Gallon, 0.016 Cubic Foot, 4.54x10^-4 Cubic Meter.
- Liter: 1,000 Cubic Centimeters, 33.8 Fluid Ounces, 2.2 Pounds of Water, 0.264 US Gallon, 0.035 Cubic Foot, 0.001 Cubic Meter.
- US Gallon: 3,785 Cubic Centimeters, 128 Fluid Ounces, 8.34 Pounds of Water, 3.785 Liters, 0.134 Cubic Foot, 3.78x10^-3 Cubic Meter.
- Cubic Foot: 28,320 Cubic Centimeters, 958 Fluid Ounces, 62.4 Pounds of Water, 28.3 Liters, 7.48 US Gallons, 0.028 Cubic Meter.
- Cubic Meter: 1.0x10⁶ Cubic Centimeters, 3.38x10⁴ Fluid Ounces, 2202 Pounds of Water, 1000 Liters, 264 US Gallons, 35.3 Cubic Feet.

Linear Units – Equivalents:
- Micron: 0.039 Mil, 0.001 Millimeter, 1.0x10^-4 Centimeter, 3.94x10^-5 Inch.
- Mil: 25.4 Microns, 2.54x10^-2 Millimeter, 2.54x10^-3 Centimeter, 0.001 Inch, 8.33x10^-5 Foot.
- Millimeter: 1000 Microns, 39.4 Mils, 0.10 Centimeter, 0.0394 Inch, 3.28x10^-3 Foot, 0.001 Meter.
- Centimeter: 10,000 Microns, 394 Mils, 10 Millimeters, 0.394 Inch, 0.033 Foot, 0.01 Meter.
- Inch: 2.54x10⁴ Microns, 1,000 Mils, 25.4 Millimeters, 2.54 Centimeters, 0.083 Foot, 0.0254 Meter.
- Foot: 3.05x10⁵ Microns, 1.2x10⁴ Mils, 305 Millimeters, 30.5 Centimeters, 12 Inches, 0.305 Meter.
- Meter: 1.0x10⁶ Microns, 3.94x10⁴ Mils, 1,000 Millimeters, 100 Centimeters, 39.4 Inches, 3.28 Feet.

Liquid Pressure – Equivalents:
- Lb/In² (psi): 2.31 Ft Water, 0.070 Kg/Cm², 0.068 Atmosphere, 0.069 Bar, 2.04 Inch Mercury, 6.895 kPa.
- Ft Water: 0.433 Lb/In², 0.030 Kg/Cm², 0.029 Atmosphere, 0.030 Bar, 0.882 Inch Mercury, 2.99 kPa.
- Kg/Cm²: 14.2 Lb/In², 32.8 Ft Water, 0.968 Atmosphere, 0.981 Bar, 29.0 Inch Mercury, 98 kPa.
- Atmosphere: 14.7 Lb/In², 33.9 Ft Water, 1.03 Kg/Cm², 1.01 Bar, 29.9 Inch Mercury, 101 kPa.
- Bar: 14.5 Lb/In², 33.5 Ft Water, 1.02 Kg/Cm², 0.987 Atmosphere, 29.5 Inch Mercury, 100 kPa.
- Inch Mercury: 0.491 Lb/In², 1.13 Ft Water, 0.035 Kg/Cm², 0.033 Atmosphere, 0.034 Bar, 3.4 kPa.
- kPa (kilopascal): 0.145 Lb/In², 0.335 Ft Water, 0.01 Kg/Cm², 0.009 Atmosphere, 0.01 Bar, 0.296 Inch Mercury.

Easy Pump Head Table:
- Feet Head (Water) to PSI conversion: 10 ft = 4.3 psi, 20 ft = 8.6 psi, 30 ft = 13 psi, 40 ft = 17 psi, 50 ft = 22 psi, 60 ft = 26 psi, 70 ft = 30 psi, 80 ft = 34 psi, 90 ft = 38 psi, 100 ft = 42 psi, 110 ft = 46 psi, 120 ft = 50 psi, 130 ft = 54 psi, 140 ft = 58 psi, 150 ft = 61 psi.

Technical Specifications for Threaded Nozzles:
- F-Series spray nozzles produce a flat, fan-shaped spray pattern with angles from 5° to 110° at 40 psi.
- Spray angles increase with pressure, allowing for overlapping patterns while maintaining uniform density.
- Construction materials include brass, mild steel, 303 stainless steel, 316 stainless steel, Carpenter 20®, PVC, CPVC, and polypropylene.
- Applications include parts cleaning, metal washing, foam control, gravel washing, vehicle washing, fertilizer spraying, and dishwashers.

Overview: The document provides detailed specifications and performance data for various spray nozzles, including solid stream and flat spray nozzles, as well as air blow-off nozzles. It includes information on construction materials, spray characteristics, and typical applications.

Specifications: The document lists multiple models of spray nozzles with their respective pipe sizes (NPT), equivalent orifice diameters, and dimensions. It also provides capacity data in gallons per minute (GPM) at various pressures (psi) and spray angles.

Spray Characteristics: The nozzles produce different spray patterns, such as solid stream and flat fan-shaped sprays, with angles ranging from 0° to 110° at 40 psi. The spray density tapers off towards the edges to allow overlapping while maintaining uniform density.

Construction: The nozzles are machined from bar stock and are available in materials like brass, steel, 303 stainless steel, and 316 stainless steel. Molded plastic models are also available in materials such as acetal, polypropylene, and PVDF, each offering specific chemical and temperature resistances.

Applications: The nozzles are suitable for various applications, including metal washing, agitation, mixing, PCB washing, semiconductor manufacturing, pressure washing, and more. Air blow-off nozzles are used for cooling, debris removal, and cleaning.

Accessories: Adjustable joints are available to accurately orient spray patterns, enhancing the versatility of the nozzles.

Key Data from Tables: The tables provide detailed capacity data for each nozzle model at different pressures, highlighting the flow rates and spray angles. This data is crucial for selecting the appropriate nozzle for specific applications based on required performance.

Overview: The document provides detailed specifications and characteristics of various spray nozzles, focusing on the DF and FL series. These nozzles are designed for specific applications requiring precise spray patterns and capacities.

Specifications: The document lists multiple models of spray nozzles, each with specific orifice diameters, spray angles, and capacities at various pressures. The DF series includes threaded disc flat 'V' spray nozzles, while the FL series includes flooding nozzles suitable for air and steam applications.

Spray Characteristics: The DF series nozzles are designed for low-profile applications where the nozzle must not project beyond the wall of the header pipe. They operate optimally at pressures up to 150 psi. The FL series nozzles provide a wide, flat fan-shaped spray with low impact, deflected 75° from the centerline, suitable for rinsing, cooling, and other applications requiring a wide-angle spray.

Construction: Standard materials for these nozzles include 316 and 303 stainless steel, with some models available in brass, PVC, CPVC, Teflon®, and polypropylene. The nozzles are machined from bar stock and are of one-piece construction.

Applications: The nozzles are used in various applications such as metal washing, vehicle washing, fertilizer spraying, and dishwashing. The document also highlights the use of FL series nozzles with air or steam for creating a deflected curtain of gas.

Key Data: Tables in the document provide detailed data on nozzle capacities (GPM) at different pressures (psi) and spray angles. This data is crucial for selecting the appropriate nozzle for specific industrial applications.

Overview: The document provides detailed specifications and characteristics of various spray nozzles, focusing on different series such as S, GS, HGS, SW, GSW, HGSW, SQ, GSQ, and SWSQ. These nozzles are used in applications like chemical processing, cooling sprays, foam breaking, and continuous casting.

Specifications: The document lists nozzle sizes, dimensions, and capacities at various pressures. It includes details on the maximum free passage, spray angles, and construction materials, which are typically brass, 303 stainless steel, 316 stainless steel, PVC, CPVC, and polypropylene.

Series Descriptions:

S Series: One-piece body with a non-removable insert.
GS Series: Two-piece body with a removable insert, offering a full cone spray pattern with uniform distribution.
HGS Series: Right-angle, two-piece body with a removable insert.
SW Series: One-piece body with a non-removable insert, providing a wide-angle full cone spray pattern.
GSW Series: Two-piece body with a removable insert, similar to SW but with a wider angle.
SQ Series: Offers a full cone spray pattern with a square distribution, available in one-piece and two-piece bodies.
SWSQ Series: Wide-angle square spray pattern, similar to SQ but with a wider angle.

Key Features: The nozzles feature patented inserts with larger flow passages to reduce clogging. They are available in various materials to suit different applications and environments.

Applications: These nozzles are suitable for chemical processing, cooling sprays, foam breaking, and continuous casting, among other industrial applications.

Patents: The nozzles are covered by U.S. Patent No. 4,142,682 and Canadian Patent No. 1,050,589.

Overview: The document provides detailed specifications and applications for various types of spray nozzles, including full cone, hollow cone, and plastic nozzles. It includes data on spray angles, capacities at different pressures, and construction materials.

Specifications: The document lists multiple models of spray nozzles, categorized by spray angle, pipe size, and maximum free passage. Each model's capacity is detailed across a range of pressures (psi), indicating the gallons per minute (GPM) each nozzle can handle.

Spray Characteristics:

Full Cone Nozzles: These nozzles provide a full cone spray pattern with uniform distribution. They are suitable for applications requiring consistent coverage, such as cooling and chemical processing.
Hollow Cone Nozzles: These nozzles produce a hollow cone spray pattern, ideal for applications like air and gas washing, and dust suppression. They offer medium to fine droplet sizes depending on the pressure.
Plastic Nozzles: Available in full cone and square spray patterns, these nozzles are made from materials like PVC and polypropylene, suitable for applications requiring corrosion resistance.

Construction: The nozzles are constructed from various materials, including brass and stainless steel for metal nozzles, and PVC, CPVC, and polypropylene for plastic nozzles. The construction ensures durability and suitability for different industrial environments.

Applications: The nozzles are used in a wide range of industrial applications, including:

Continuous casting and billet casting
Rinsing and cooling
Heat exchanger cooling
Chemical processing
Dust suppression and degreasing

Key Data: The document includes tables with detailed measurements for each nozzle model, specifying dimensions, spray angles, and flow capacities at various pressures. This data is crucial for selecting the appropriate nozzle for specific industrial needs.

Overview: This document provides detailed specifications and characteristics of various spray nozzles used in metal treatment and other applications. It includes information on dimensions, spray patterns, construction materials, and typical applications for different nozzle series.

1. Wide Angle Hollow Cone Spray Nozzles (HW Series):

Specifications: Available in male and female models with various pipe sizes and maximum free passage diameters.
Spray Characteristics: Hollow cone spray pattern with wide angles, suitable for applications like water cooling and air washing.
Construction: Made from brass, 303 stainless steel, and 316 stainless steel.
Capacity: Detailed GPM capacities at various pressures and spray angles are provided.

2. Hollow Cone Phosphating Nozzles (PH Series):

Specifications: Designed for phosphating applications with a hollow cone spray pattern.
Construction: Two-piece construction available in 303 and 316 stainless steel.
Capacity: GPM capacities at various pressures and spray angles are listed.

3. Twister Nozzles (YH Series):

Specifications: Anti-clog design with large flow rates and small droplet sizes.
Construction: Made from brass, 303 stainless steel, 316 stainless steel, PVC, and Teflon.
Applications: Used for air and gas washing, dust suppression, and humidification.
Capacity: GPM capacities at various pressures are detailed.

4. In-line Hollow Cone Spray Nozzles (ILH Series):

Specifications: Produce evenly distributed hollow-cone spray with medium to fine droplets depending on pressure.
Construction: Large maximum free passage diameters to reduce clogging, available in brass, 303, and 316 stainless steel.
Applications: Suitable for dust suppression, metal treatment, and humidification.
Capacity: GPM capacities at various pressures are provided.

5. Hydraulic Atomizing Nozzles (C Series):

Specifications: Designed for fine hollow-cone spray using liquid pressure for atomizing.
Construction: Available in brass, 303, and 316 stainless steel with standard 316 stainless steel orifice insert, core, and strainer.
Applications: Used for humidification, evaporative cooling, and steam de-superheating.
Capacity: GPH capacities at various pressures are detailed.

Technical Document Summary

1. Specifications:
The document provides detailed specifications for various types of spray nozzles, including dimensions, spray angles, and capacities at different pressures. The nozzles are available in materials such as brass, 303, and 316 stainless steel.

2. Nozzle Styles:
- CL Style: Two-piece body with removable cap, orifice, insert, core, core retainer, and strainer.
- C Style: Similar to CL but without a strainer.
- CM.5L Style: 1/2" NPT male wall mount body with similar components.
- CC Style: One-piece body with optional external strainer.

3. Spray Characteristics:
- CW Series: Wide angle hydraulic atomizing nozzles providing a fine hollow-cone spray.
- R Series: High capacity hollow cone spray pattern with uniform distribution.
- ZF Series: Produces a flat, fan-shaped spray pattern with varying spray angles.

4. Applications:
- Humidification, evaporative cooling, steam de-superheating, aeration, pollution control, cooling ponds, scrubbing gases, dust proofing, and chemical processes.

5. Special Features:
- Easy disassembly and cleaning, wide range of styles and sizes, high flow capacities, and positive alignment of spray patterns.

6. Quick-Disconnect Nozzles (Zip-Tip®):
Designed for fast installation and removal without tools, featuring positive alignment and standard "O-ring" seals. Available in various materials and rated to 300 psi.

7. Capacity Tables:
The document includes tables showing the capacity of different nozzle models at various pressures, highlighting the versatility and adaptability of the nozzles for different industrial applications.

Overview: This document provides detailed specifications and performance data for various nozzle models used in industrial applications, including tank mixing, steam sparging, and spray systems. It includes information on nozzle flow rates, steam capacities, construction materials, and typical applications.

Specifications: The document lists multiple nozzle models with their respective flow rates at different pressures (psi) and maximum free passage dimensions. It also provides steam capacities for certain models at various steam pressures.

Construction: Nozzles are available in materials such as 316 stainless steel, alloy 20, brass, and Teflon®. The document highlights the precision investment casting process for certain models and mentions the availability of other materials upon request.

Applications: The nozzles are designed for a range of applications including chemical processing, cooling sprays, tank washing, and steam sparging. Specific models are recommended for different tasks, such as the BEX Steam Spargers for efficient heating of liquids and the TWK series for 360° spray coverage.

Performance Data: Tables provide detailed flow rates (GPM) for various nozzle models at different pressures, as well as steam capacities (lbs/hr) for steam spargers. The document also includes guidelines for selecting the right eductor based on steam flow rate and pressure requirements.

Special Features: Some nozzles offer features like self-lubricating and self-cleaning mechanisms, easy disassembly for cleaning, and FDA-approved materials. The document also notes patented designs for certain nozzle series.

Recommendations: The document advises on selecting appropriate nozzle models based on specific application needs and provides equations for calculating steam requirements. It also suggests using multiple smaller spargers instead of one large sparger to reduce steam hammer.

Overview: The document provides detailed technical specifications and performance data for various spray set-ups used in applications such as dust control, pesticide application, humidification, cooling, coating, and handling low viscosity fluids. It includes information on selecting the appropriate set-up based on specific requirements and performance charts for different spray patterns.

Specifications: Each spray set-up consists of an air cap and a liquid cap that determine the spray pattern, capacity, and coverage performance. The document outlines different types of spray patterns available, including Round, Wide-Angle Round, and Flat Spray patterns. It also describes the internal and external mixing of liquid and gas to achieve complete atomization.

Procedures: The document explains how to control liquid atomization by varying air pressure without changing liquid pressure, which is effective for higher viscosity liquids and abrasive suspensions. It also details how fine or coarse droplet size atomization can be achieved by adjusting air and liquid pressures.

Performance Charts: The document includes performance charts for different spray set-ups, such as the JPE Round Spray Performance Chart and the JPG Wide Angle Round Spray Performance Chart. These charts provide data on liquid capacity in gallons per hour (GPH) and air capacity in standard cubic feet per minute (SCFM) at various air pressures.

Recommendations: For applications not covered by the standard set-ups, users are advised to contact their BEX representative for further assistance. The document emphasizes the importance of selecting the correct spray set-up to ensure optimal performance for specific applications.

Overview: The document is a catalog detailing various types of spray nozzles and related equipment offered by BEX, a company specializing in spray nozzle technology. It includes product specifications, terms and conditions of sale, and contact information for BEX offices in the United States, Europe, and Canada.

Product Categories:

Threaded Nozzles: Includes flat spray, full cone spray, and quick-disconnect nozzles. Specific models like ZF flat "V", ZS full cone, and ZPH phosphating hollow cone are highlighted.
Metal and Plastic Nozzles: Various models such as Z Bodies and adaptors, ZFL flooding, and ZHW wide angle hollow cone are listed with their respective page numbers.
Air Atomizing Nozzles: Features models like JPE round spray and JPD flat spray, designed for specific spray patterns and applications.
Accessories: Includes tank mixing eductors, tank washing assemblies, and adjustable joints like MAJ retaining cap style.

Terms and Conditions:

Warranties: Products are warranted to conform to specifications and not infringe on intellectual property rights.
Warranty Disclaimer: Excludes liability for special, incidental, or consequential damages.
Technical Assistance: Provided without charge, but the seller assumes no liability for advice given.
Patents: Seller is not liable for patent infringement claims arising from the buyer's use of products in combination with other products.

Company Information: BEX provides a wide range of spray nozzles with competitive pricing and fast delivery. Contact details for BEX offices in the U.S., Europe, and Canada are provided for customer inquiries and support.

Catalog excerpts

Catalog 56.05 Body:Catalog 56.qxd table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:13.00pt "Arial", sans-serif; } BEX SPRAY NOZZLES CATALOG NO. 56a

Open the catalog to page 1

Catalog 56.05 Body:Catalog 56.qxd table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:10.00pt "Arial", sans-serif; } .font1 { font:13.00pt "Arial", sans-serif; } .font2 { font:17.00pt "Arial", sans-serif; } .font3 { font:7.00pt "Arial Black", sans-serif; } In this new catalog, you'il find many new features that have been added to assist you in selecting the proper nozzle for your application. For over 40 years we have designed and developed spray nozzles in response to user's concerns, with the understanding and willingness to provide answers to their needs. From BEX...

Open the catalog to page 2

Catalog 56.05 Body:Catalog 56.qxd table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:6.00pt "Arial", sans-serif; } .font1 { font:7.00pt "Arial", sans-serif; } .font2 { font:8.00pt "Arial", sans-serif; } .font3 { font:9.00pt "Arial", sans-serif; } .font4 { font:10.00pt "Arial", sans-serif; } .font5 { font:11.00pt "Arial", sans-serif; } .font6 { font:13.00pt "Arial", sans-serif; } .font7 { font:6.00pt "Arial Black", sans-serif; } Table of Contents This catalog lists the most popular models of BEX spray nozzles and accessories. Many others are available, often in special...

Open the catalog to page 3

Catalog 56.05 Body:Catalog 56.qxd table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:7.00pt "Arial", sans-serif; } .font1 { font:8.00pt "Arial", sans-serif; } .font2 { font:9.00pt "Arial", sans-serif; } .font3 { font:10.00pt "Arial", sans-serif; } .font4 { font:12.00pt "Arial", sans-serif; } .font5 { font:5.00pt "Microsoft Sans Serif", sans-serif; } Slection Guide This section describes some of the questions to be considered when selecting spray nozzles. In addition, answers for uncomplicated situations are provided where possible. In some applications, because of...

Open the catalog to page 4

Catalog 56.05 Body:Catalog 56.qxd table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:7.00pt "Arial", sans-serif; } .font1 { font:8.00pt "Arial", sans-serif; } .font2 { font:9.00pt "Arial", sans-serif; } WHAT TYPE OF CONNECTION DO I REQUIRE? BEX spray nozzles are available in many diffrent connection styles. The most common connection types dpend on the industry where the nozzles are being used. Generally, however, the most common connection is the standard tapered, or NPT, pipe thread. The outside diameters of NPT threads are shown below. Most BEX nozzles are also...

Open the catalog to page 5

Catalog 56.05 Body:Catalog 56.qxd table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:6.00pt "Arial", sans-serif; } .font1 { font:7.00pt "Arial", sans-serif; } .font2 { font:7.20pt "Arial", sans-serif; } .font3 { font:8.00pt "Arial", sans-serif; } .font4 { font:9.00pt "Arial", sans-serif; } WHAT FACTORS WILL AFFECT MY SPRAY CHARACTERISTICS? When the conditions controlling spray nozzle performance change, the spray characteristics may change. This section lists conditions which may vary, and how those conditions may affect the spray characteristics. PRESSURE: The flow...

Open the catalog to page 6

Catalog 56.05 Body:Catalog 56.qxd table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:9.00pt "Arial", sans-serif; } .font1 { font:13.00pt "Arial", sans-serif; } Preventing Nozzle Problems Monitor Nozzle Performance Flow rate Flow rate can be measured by Connecting a flowmeter in sries with the nozzle, or collecting the output from the nozzle in a container of known volume over a measured period of time. If the flow rate is higher than the nozzle specifications then it is possible that the orifice has partially corroded or eroded away. If the flow rate is lower than...

Open the catalog to page 8

Catalog 56.05 Body:Catalog 56.qxd table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:7.00pt "Arial", sans-serif; } .font1 { font:9.00pt "Arial", sans-serif; } .font2 { font:11.00pt "Arial", sans-serif; } .font3 { font:13.00pt "Arial", sans-serif; } Common Causes of Nozzle Problems There are thousands of diffrent spray nozzles to choose from. If the incorrect nozzle is chosen for your application then problems could arise. Furthermore, nozzles can develop problems under normal use. Below is a list of some of the more common problems which can arise. Corrosion The nozzle...

Open the catalog to page 9

Catalog 56.05 Body:Catalog 56.qxd table.main {} tr.row {} td.cell {} div.block {} div.paragraph {}

Open the catalog to page 11

Catalog 56.05 Body:Catalog 56.qxd table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:4.00pt "Arial", sans-serif; } .font1 { font:5.00pt "Arial", sans-serif; } .font2 { font:7.00pt "Arial", sans-serif; } .font3 { font:8.00pt "Arial", sans-serif; } .font4 { font:9.00pt "Arial", sans-serif; } .font5 { font:10.00pt "Arial", sans-serif; } .font6 { font:12.00pt "Arial", sans-serif; } .font7 { font:14.00pt "Arial", sans-serif; } .font8 { font:5.00pt "Microsoft Sans Serif", sans-serif; } .font9 { font:7.00pt "Microsoft Sans Serif", sans-serif; } Molded S Sries Injection molded...

Open the catalog to page 32

Catalog 56.05 Body:Catalog 56.qxd table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:4.00pt "Arial", sans-serif; } .font1 { font:6.00pt "Arial", sans-serif; } .font2 { font:8.00pt "Arial", sans-serif; } .font3 { font:9.00pt "Arial", sans-serif; } .font4 { font:13.00pt "Arial", sans-serif; } Wide angle hydraulic atomizing nozzles CW Sries DIMENSIONS SPRAY CHARACTERISTICS: CW sries wide angle hydraulic atomizing nozzles are pr驩cision machined to provide a very fine wide angle hollow-cone spray using only the liquid pressure for atomizing. CONSTRUCTION: Several different...

Open the catalog to page 45

All BEX catalogs and technical brochures

Catalog
100 Pages
Air Atomizing
16 Pages
K-BALL® SERIES
7 Pages
